PRODUCT DETAILS

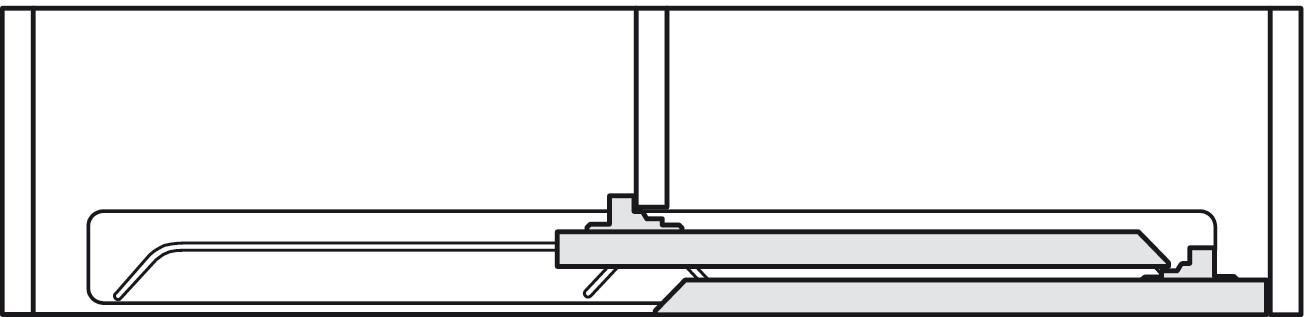

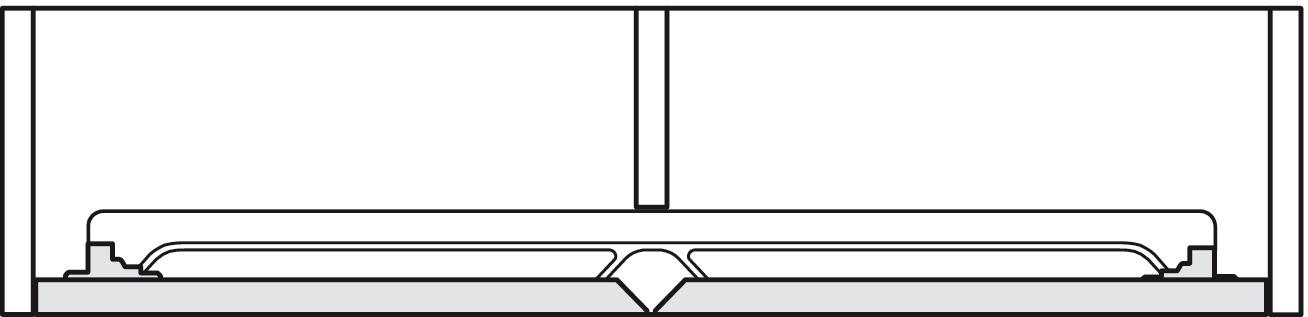

• Two doors close to form a smooth, flush in-line appearance no overlap between doors
• Simple installation as the same track is used for both top and bottom
• Fit recessed profile handle or flush pull handle if a smooth inline appeareance required
• Installation: Tracks and channels recess mounted, running gear recess mounted and screw fixed

Application
Flush cabinet doors

Suitable for
2 doors

Adjustment facility
?2 mm via knurled screw without tools

Door height
Max 1600 mm

Door width
450-900 mm

Door thickness
18-22 mm (including handle: 45 mm)

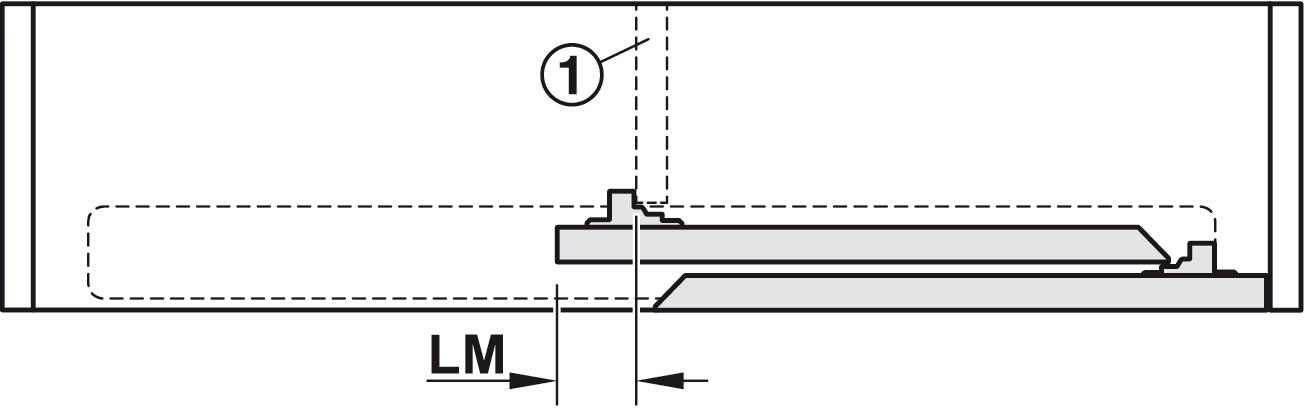

Door offset
50 or 70 mm

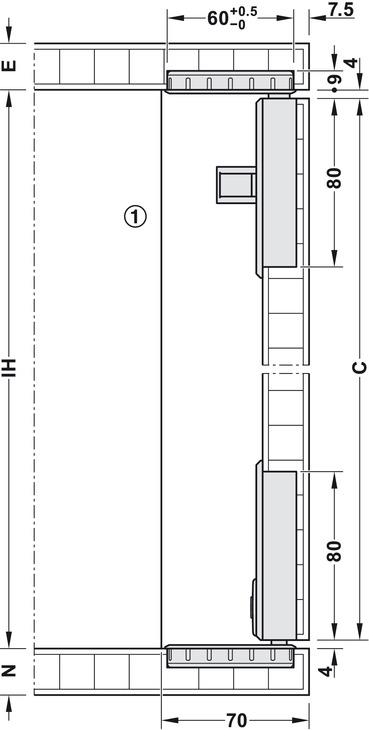

Installation depth
70 mm

Material thickness
Min. 18 mm

Guarantee
10 years

Fitting set includes:
2x Top guide track, anodized aluminium
4x Top guide, for mounting in drilled hole and screw fixing

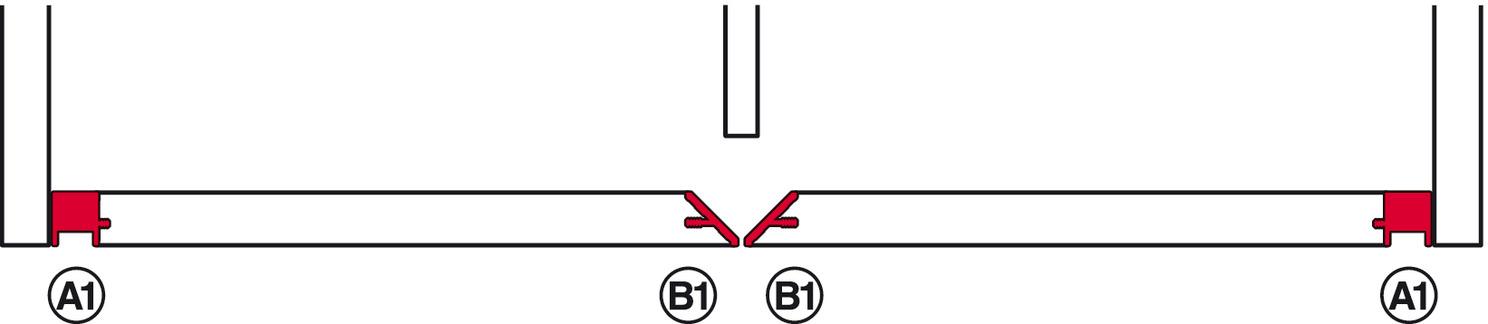

2x Door buffer, grey plastic
1 pair Installation jig, for doors
4x Bottom running gear, for mounting in drilled hole and screw fixing
10x Spacer plates for 18 and 20 mm door thickness, grey plastic
1x Hex key

Order reference
Order Hospa diameter 4.0 mm countersunk screws separately
