PRODUCT DETAILS

Flexible sliding door system for a pair of large flush wardrobe doors, each panel slides in front of the other, with soft closing in both directions. Guide rails, made of anodised aluminium, with self activating anti-derailment and can be cut to size.

• Order 1 left and 1 right hand door set
• Order tracks separately (see Related Products Below)
• Planofit door straighteners are recommended for this system (see Related Products Below)

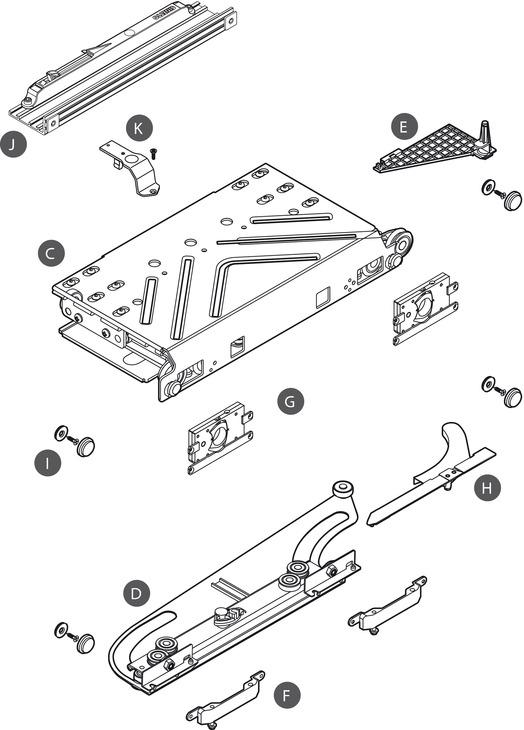

• See Set Components for included parts


• Adjustment facility: Height adjustment - 4 / + 6 mm
• Door weight: 60 kg
• Door width: 890-1800 mm (600 mm when only using one door)
• Door thickness: 16-55 mm



Installation instructions must be adhered to. Please note below for important points:

• Minimum height required above doors 24.5 mm
• Cassette (c) must be fully open first and then installed into the guide rail
• There must be a 1 mm clearance on the sproget on the bottom guide beneath the door



Material: Zinc alloy, Metal

Installation instructions must be adhered to, please see below for fitting instructions and video. Please note important points:

Casette (c) must be fully open first and then installed into the guide rail

There must be a 1mm clearance on the sproget on the bottom guide beneath the door.
