Fitting Set, For Sliding Cabinet Doors, Hawa-Clipo 16 H - Hafele
Product code: 405.82.216
£0.00
£95.86
(
£79.88
ex VAT)
Earn959
reward points
reward points
Please choose from the options below to show product code, price and availability
PRODUCT DETAILS
Fitting Set, for Sliding Cabinet Doors, Hawa-Clipo 16 H
Top hung system, For 2 doors
The ease of operation of sliding door fittings is determined by the quality of the rollers. In order to provide an even softer sliding experience Hawa have re-invented the roller technology for Hawa-Clipo 16
Soft running - Optimised roller geometry and new high-performance plastic
Extremely quiet - Minimum running noise thanks to low rolling resistance
Durable - Long lasting thanks to new high-performance plastic (quality tested in accordance with DIN-EN 15706 level 3, highest class)Number of doors :-2.00
Soft closing mechanism:-With clip-in door stopper
For door thickness:-16 – 19 mm
For door width:-≤1,000 mm
For door weight:-≤16 kg
Running position:-Top
Number of rollers:-4.00
Height adjustment:--1 – 2 mm
Running gear guided by:-Friction bearing
For door material:-Aluminium frame
Cabinet version:-with thin cabinet top panels, with narrow doors
Set:-Set without tracks-please see in related products to order
Area of application:-For 2 doors
For door height:-≤1,400 mm
Door stopper:-Top clip-in door stopper, for sliding into running track
Material/finish:-Housing: Plastic Laufwerk: Plastic Guide: Plastic Rollers: Plastic Axis: Steel

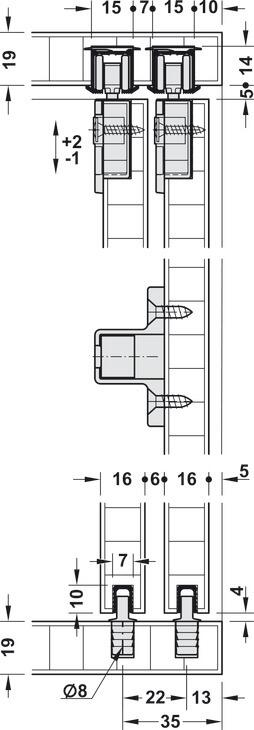

Adjustment facility:-Height adjustment: -1 – 2 mm, Height +2/-1 mm on running gear using adjusting wheel
Door adjustment via:-adjusting wheel

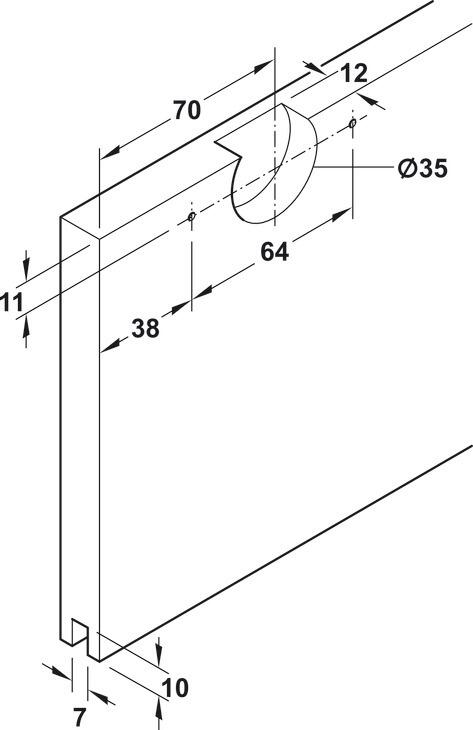

Installation:-Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)
Model series:-Clipo
Number of doors per system max.-2
