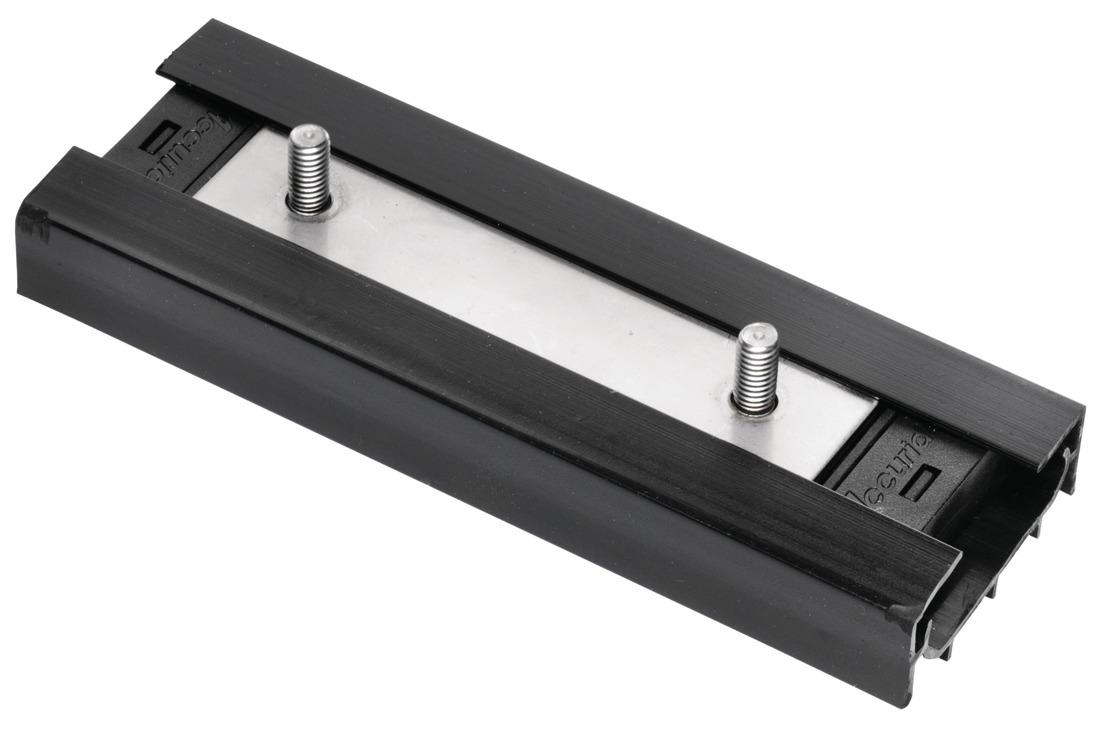

Product code: 421.59.801

£0.00
£46.92
(
£39.10
ex VAT)
Earn469
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Stainless steel balls

QuantityPrice (inc VAT)
2 +£41.05
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • Grease free and smooth running
    • Thread: 5 mm

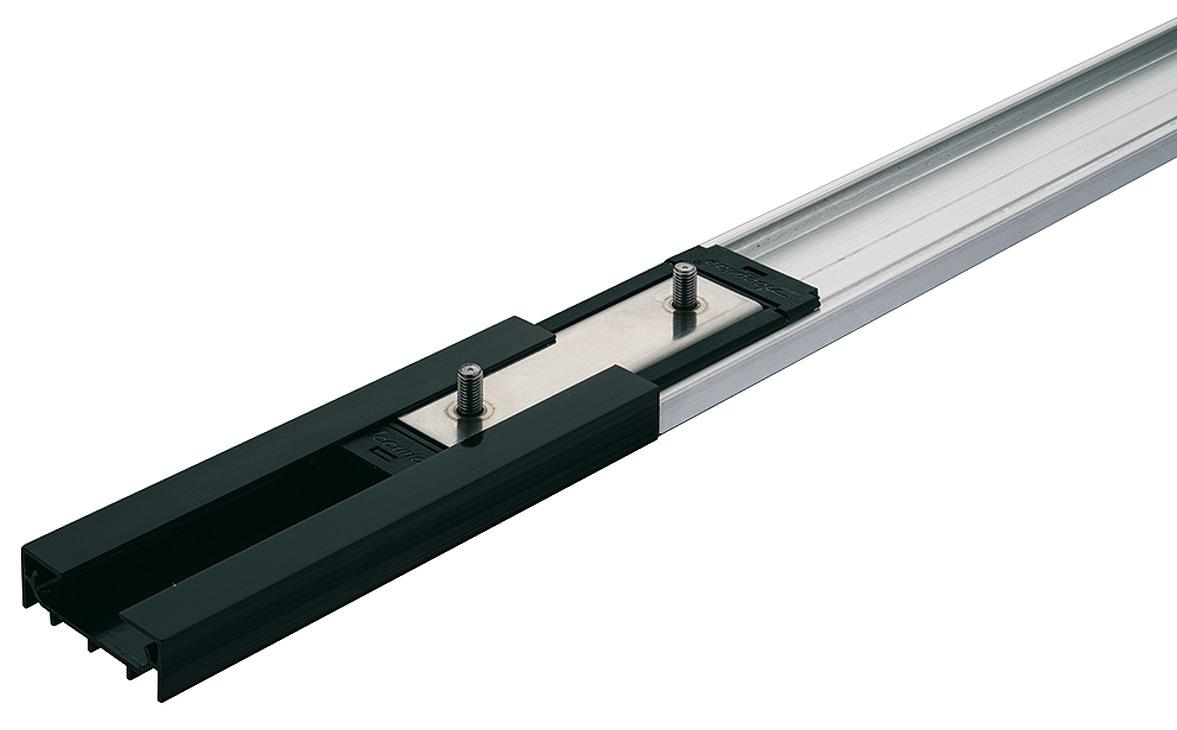

    • Installation: The balls are loosely inserted into the re-circulating ball carriage therefore it is supplied packed in a plastic envelope. In order to avoid losing balls during the installation of the re-circulating ball carriage, the plastic envelope must be pressed against the aluminium track and the re-circulating ball carriage must be slid carefully into the aluminium track. Finally install end stops.

    Area of application

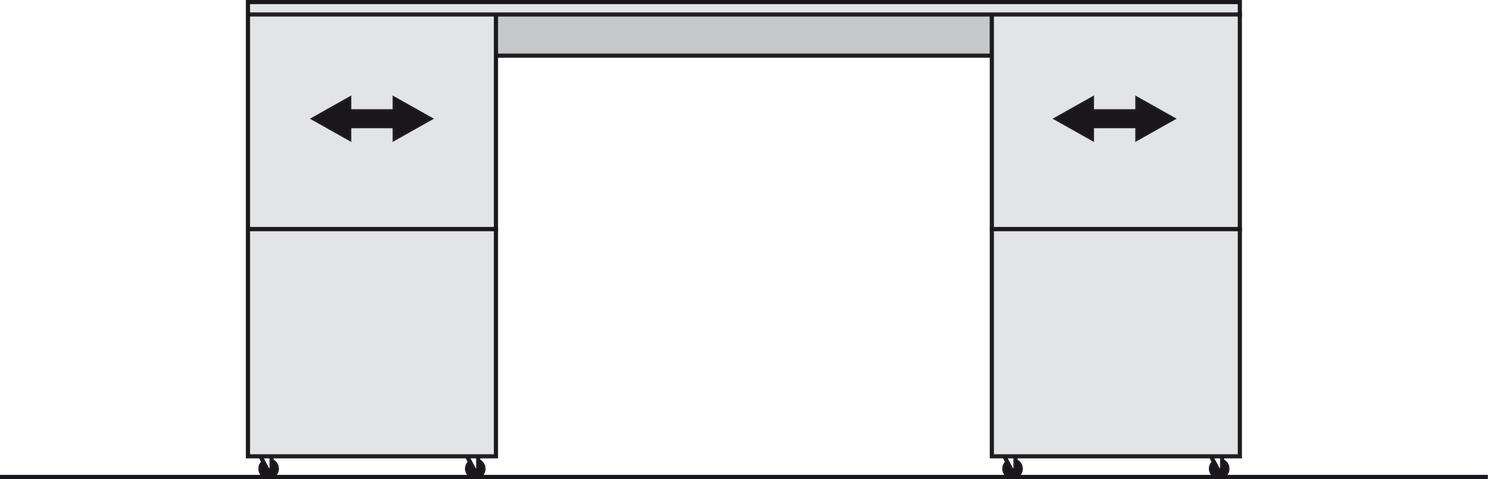

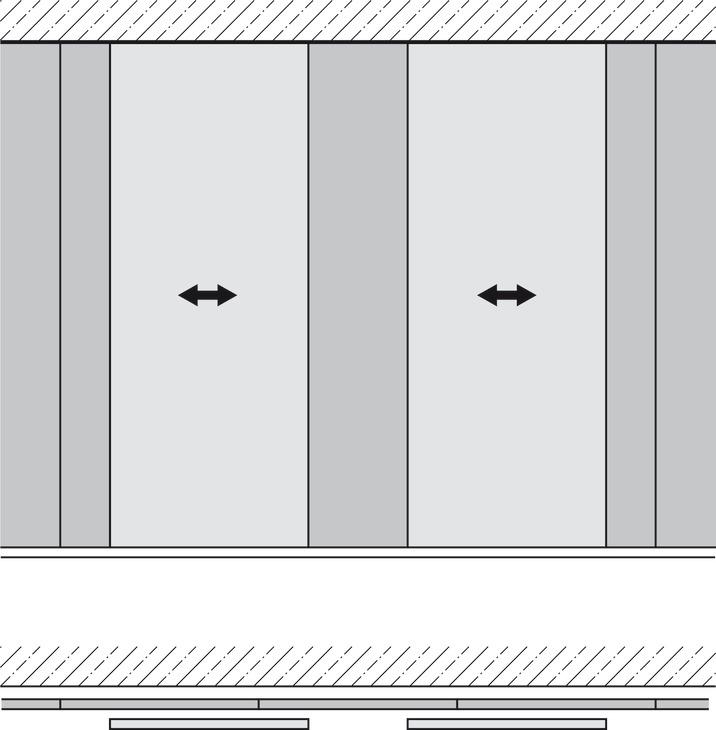

    For sliding objects horizontally such as cabinets, claddings, display walls etc.

    Suitable for
    Accuride 0115RC linear runners

    Version
    Running track can be shortened or extended to required size

    Material
    Stainless steel

    Thread
    M5

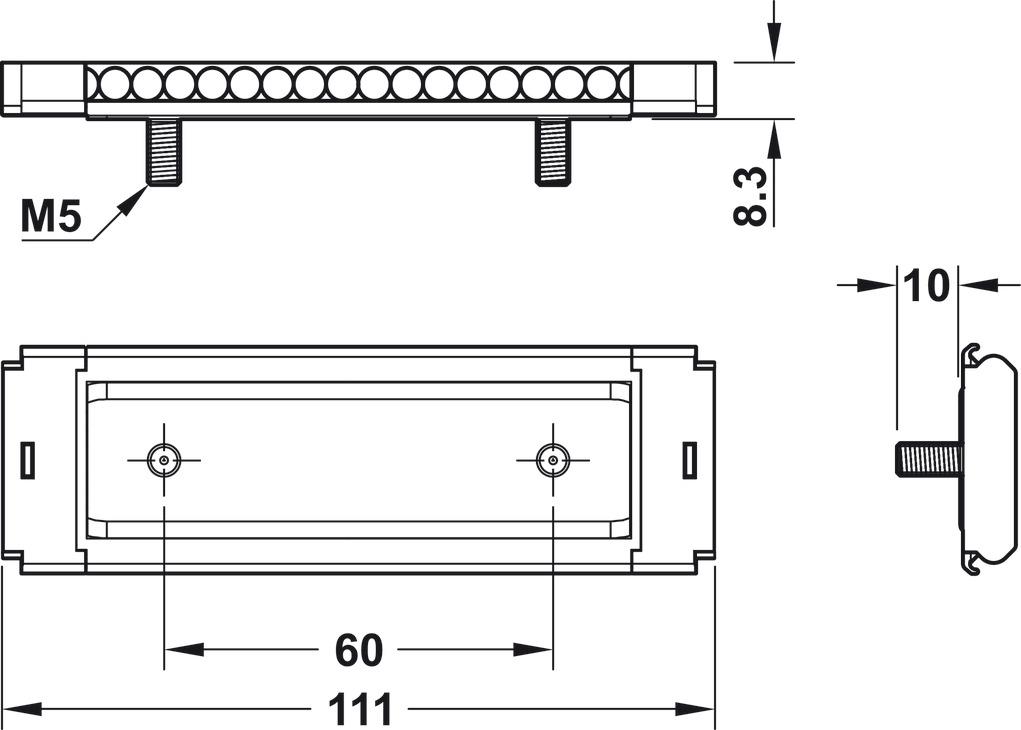

    Length
    111 mm

    Width
    40 mm

    Height
    18.3 mm

    Installation
    Screw fixing

    Installation reference

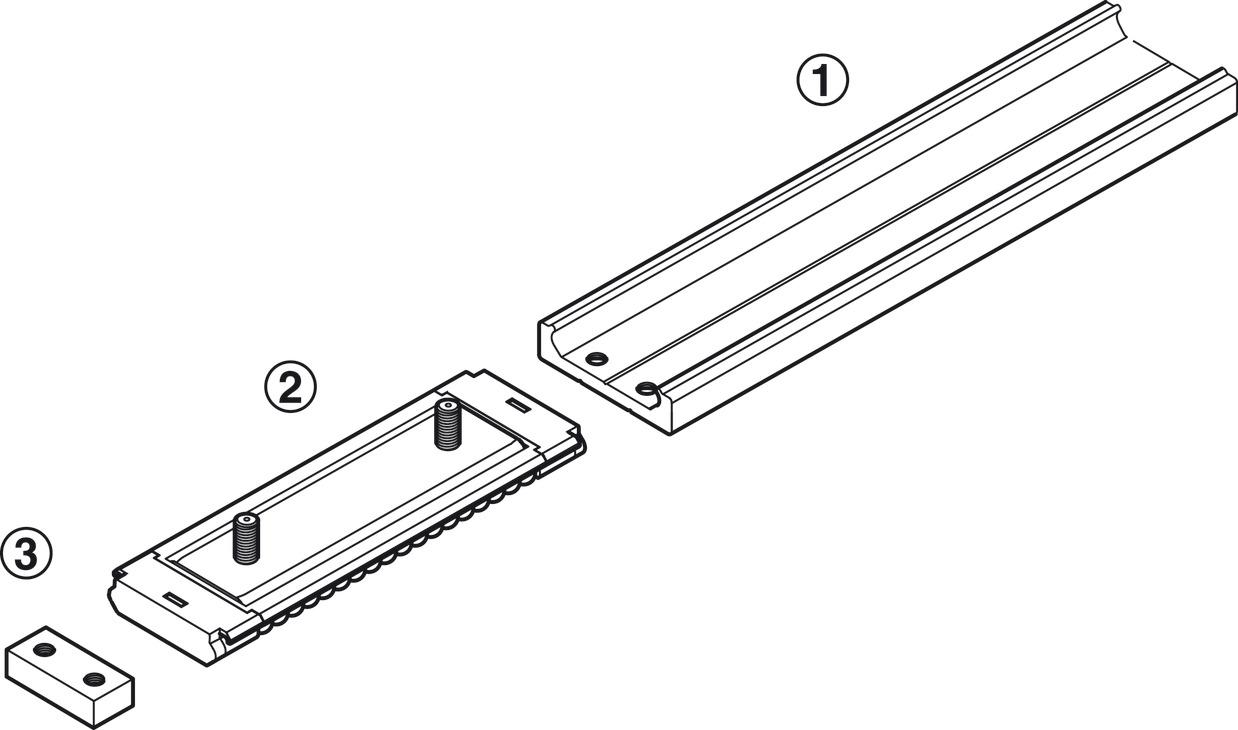

    Supplied in a plastic sleeve as balls are loose in the ball carriage. To prevent the balls from falling out when installing the ball carriage, press the plastic sleeve against the aluminium track, then carefully slide the ball carriage into the aluminium track. Then fit the end stops.

    Order reference?

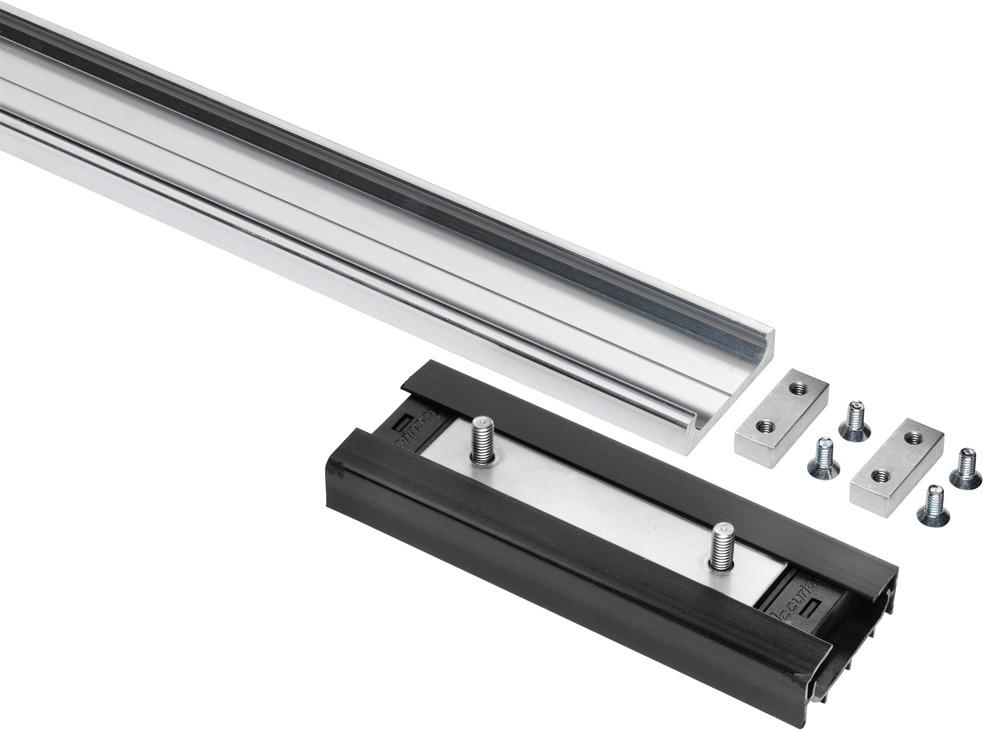

    Tracks and accessories to be ordered separately

    Pack size
    1 piece
