PRODUCT DETAILS

For use with concealed hinges, For max door weight 25 kg, for max. door height ≤2700 mm

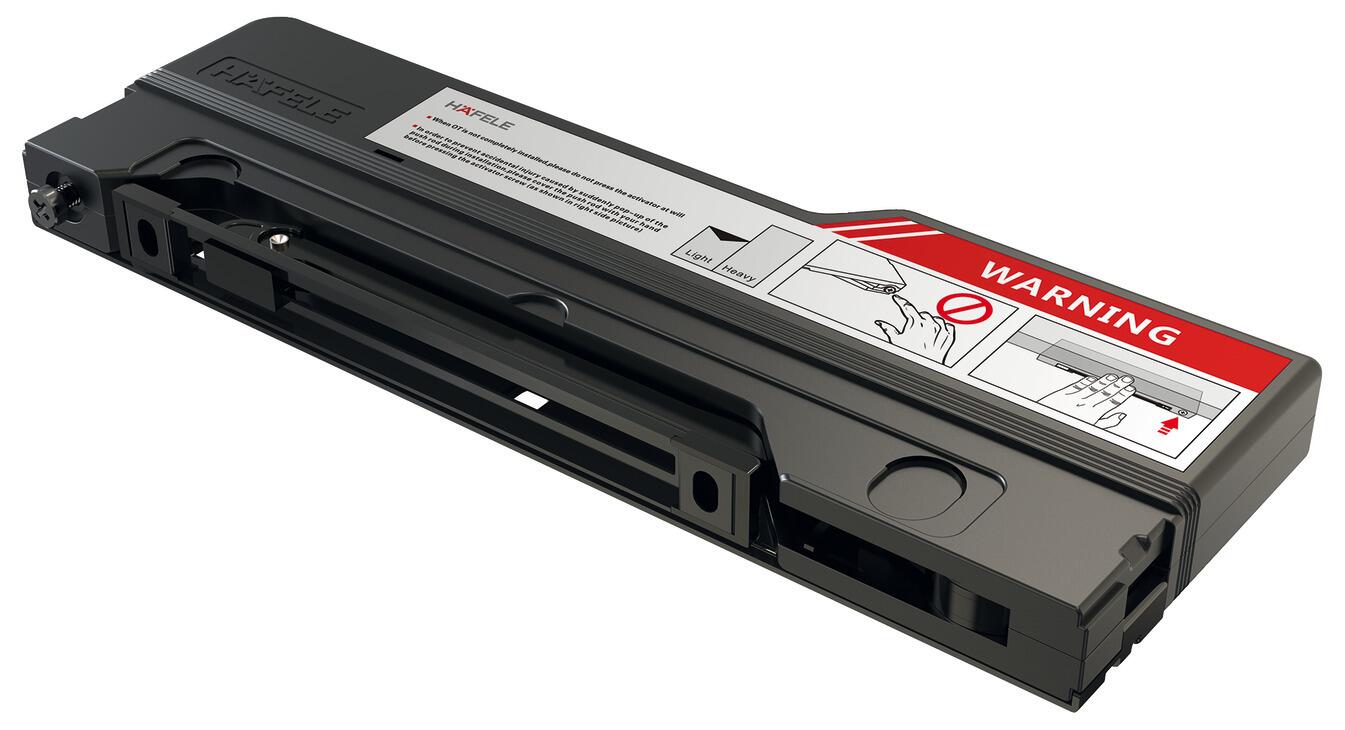

One touch push opening soft close mechanical system is an innovative product for soft close and push to open applications
Integrating push opening and soft closing functions that can free your hands and allow you to operate the door in an environment vulnerable to bacteria
Hands free, hygienic and convenient to operate
Fully mechanical design, no need to connect with electric power
Smart design and occupying little space
Friendly-to-use as closing and opening only by gentle pressing
Revolutionary operation compare to regular push latches

• For opening angle ≤110 degrees
  Width x Depth x Height: 202 x 18 x 60 mm
  Product quality level tested to 50,000 cycles

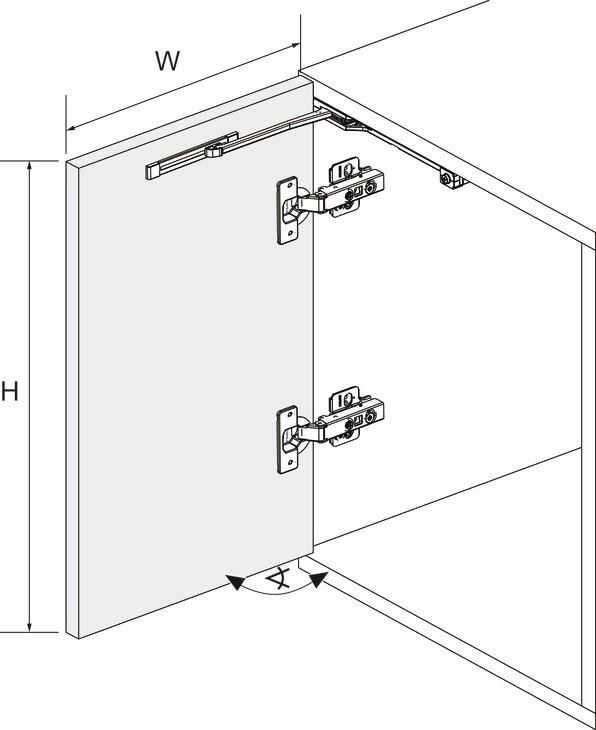

• Suitable for

  Door width W: ≤600 mm

  Colour/finish

  Black

  For door width

  300 – 600 mm

  Area of application

  For wooden doors without handles or aluminium frames,
  For full overlay, half overlay and inset mounting doors

  Material

  Plastic

  Opening angle

  110.00 degrees

  Dim. (L x W x H)

  202 x 68 x 18 mm

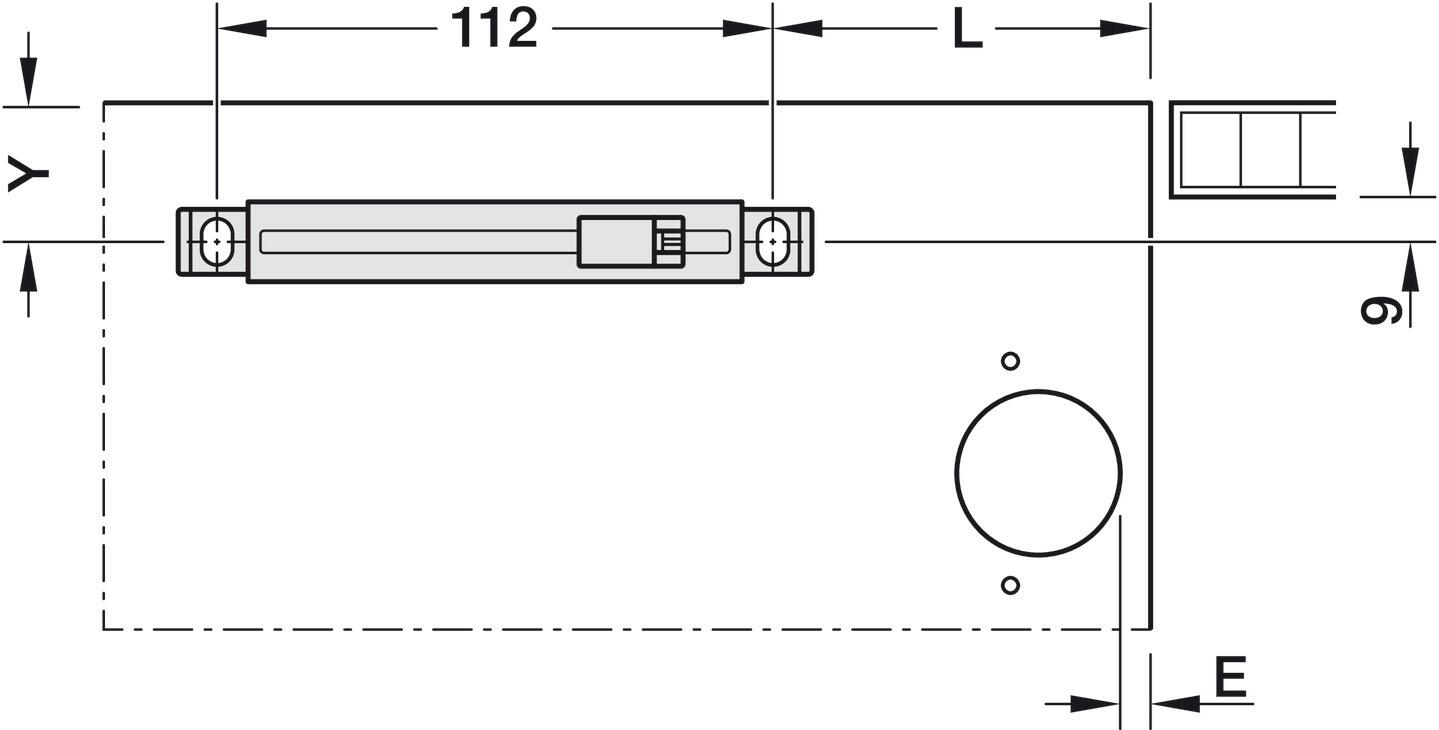

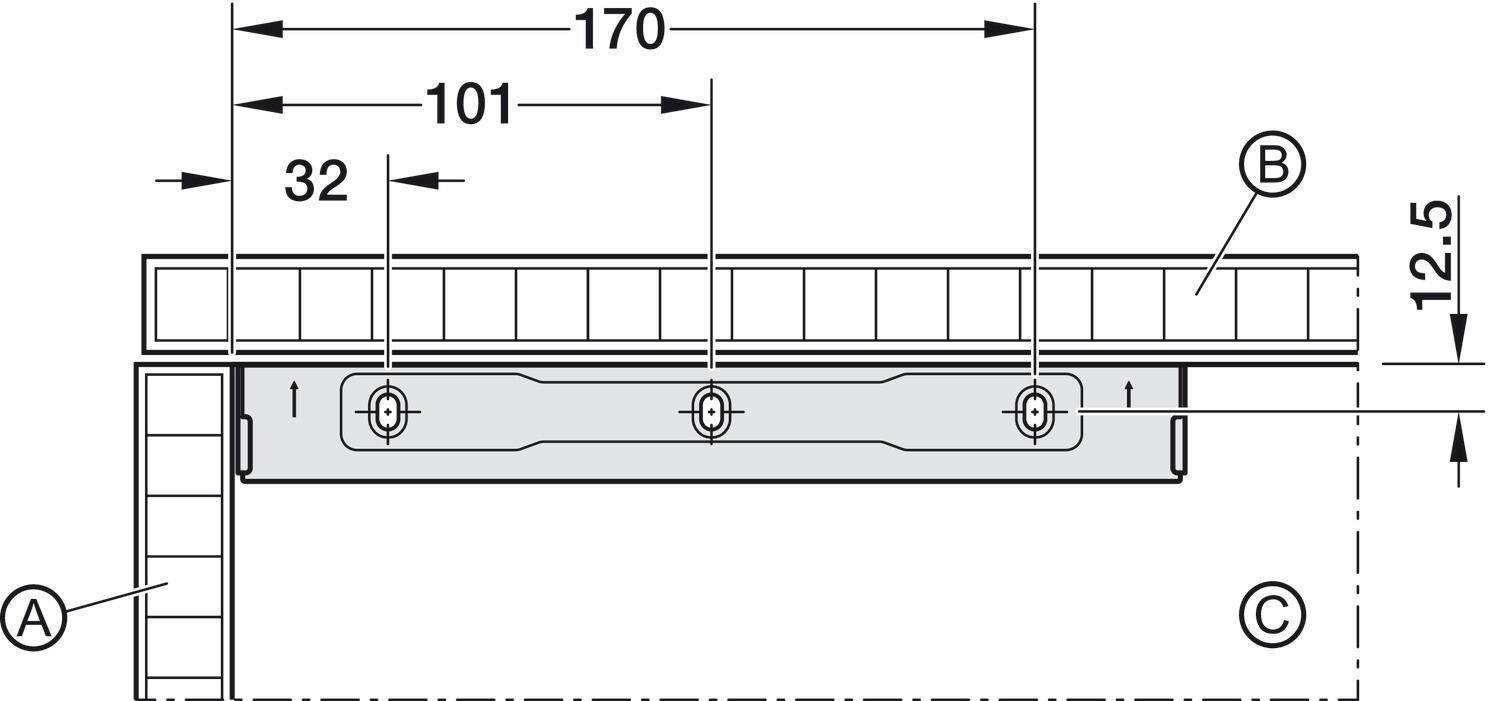

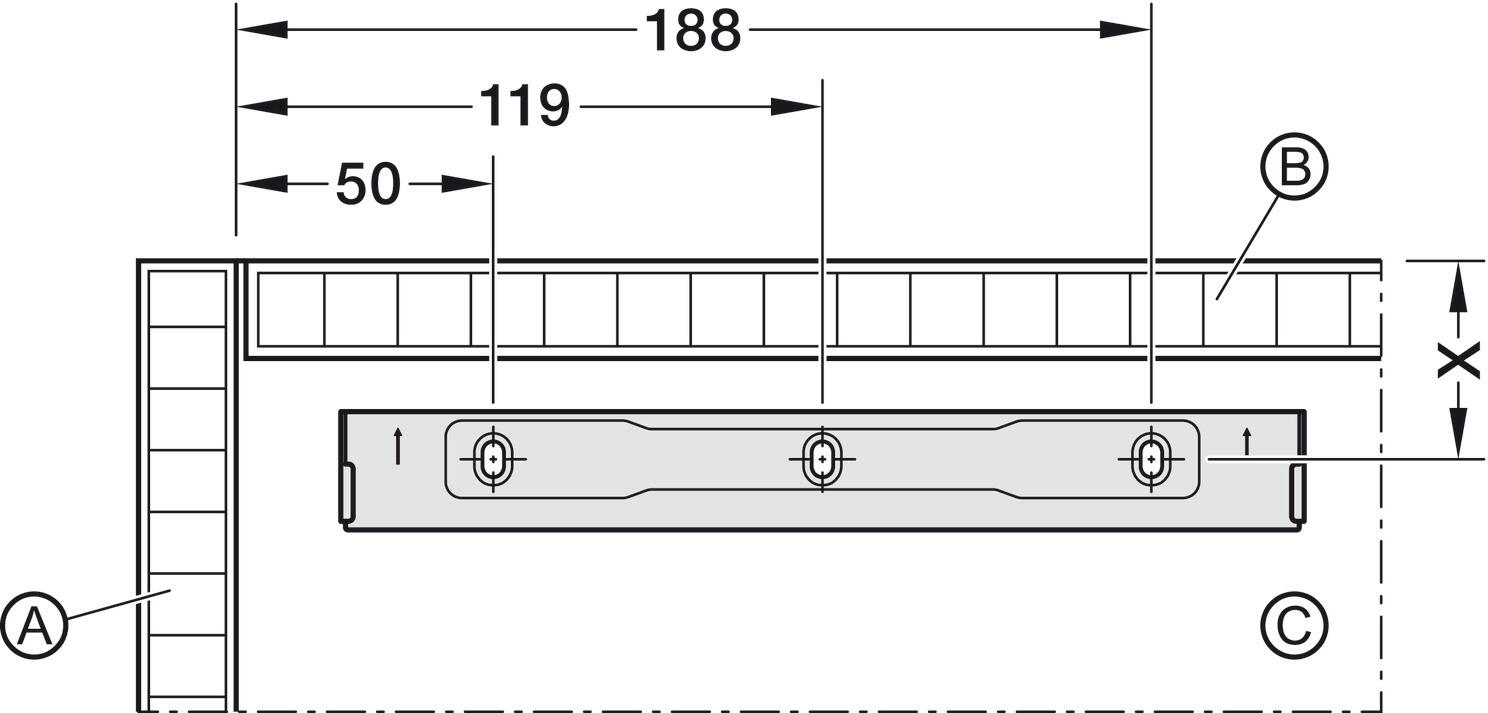

  Installation note

  Template Available for easy installation

  Order reference

  Push to open soft close mechanism should be used in combination with unsprung hinges, order separately

  Supplied with

  Fixings
