Loox Motion Detector, Adjustable, Modular, Loox - Hafele

Loox Motion Detector, Adjustable, Modular, Loox - Hafele

Product code: 833.89.333

£0.00
£13.64
(
£11.37
ex VAT)
Earn136
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

0.5/1/3 minutes

QuantityPrice (inc VAT)
2 - 2£12.13
3 +£10.61

Bulk Buy Discounts for:

5/15/30 minutes

QuantityPrice (inc VAT)
2 - 2£12.13
3 +£10.61
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Soft on/off switching function, automatic, Min. delay time - 0.5/1/3 minutes

    Where switches are not in-built or included choose from the wide range of Loox switches
    These 12 mm diameter switches can be recessed or surface mounted
    Adjustable overrun time via integrated microswitch
    Colour adjustment with supplied cover sleeves

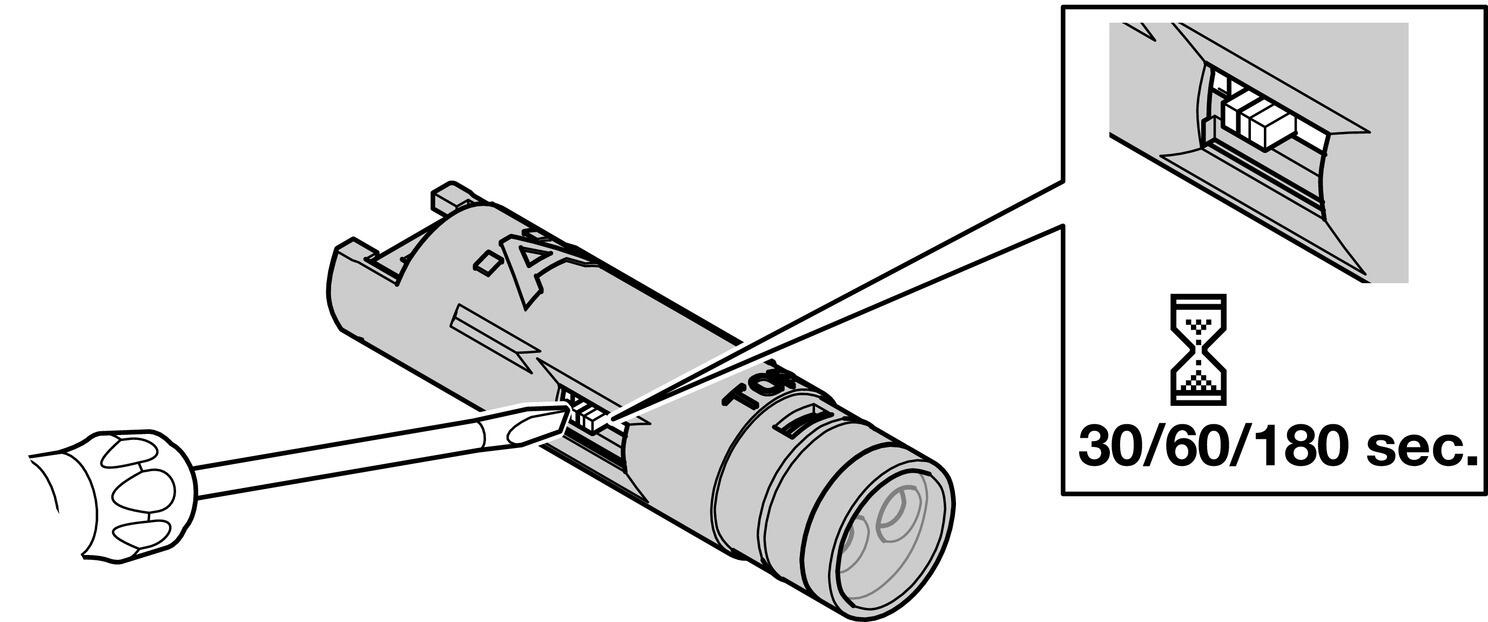

    Adjustable delay time via integrated micro switch

    Version:-For lead with snap-in connector

    Colour/finish:-White/Grey/Black

    Switching function:-Soft on/off, automatically

    Memory function:-No

    Drill hole diameter:-12.00 mm

    Length;-44.50 mm

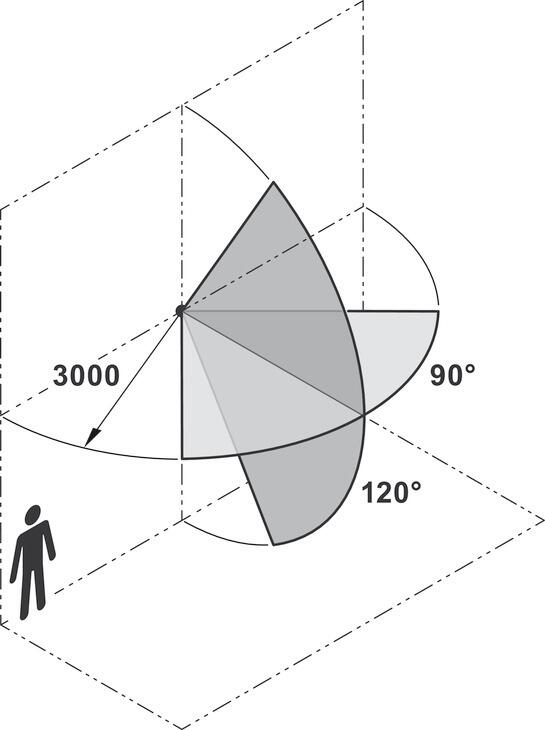

    Sensor range:-0 – 3,000 mm

    Material :-Plastic

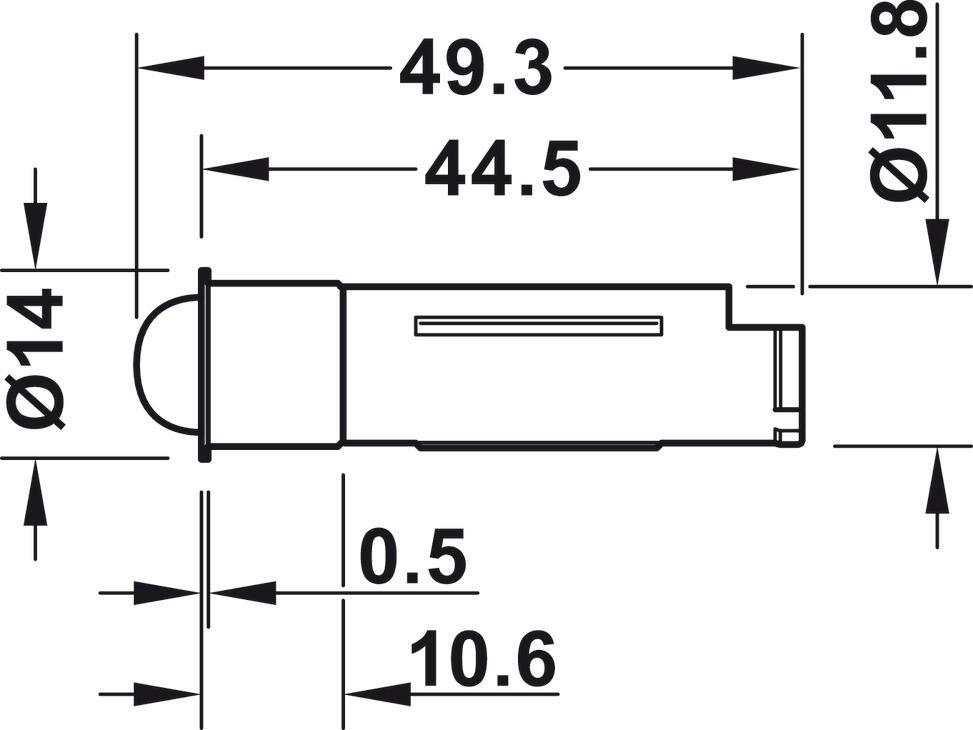

    Dim. (diameter x L) :-12 x 44.5 mm

    Power Consumption :-0.10 W

    Horizontal sensor angle :-90.00 degrees

    Vertical sensor bracket :-120.00 degrees

    Degree of protection :-IP20

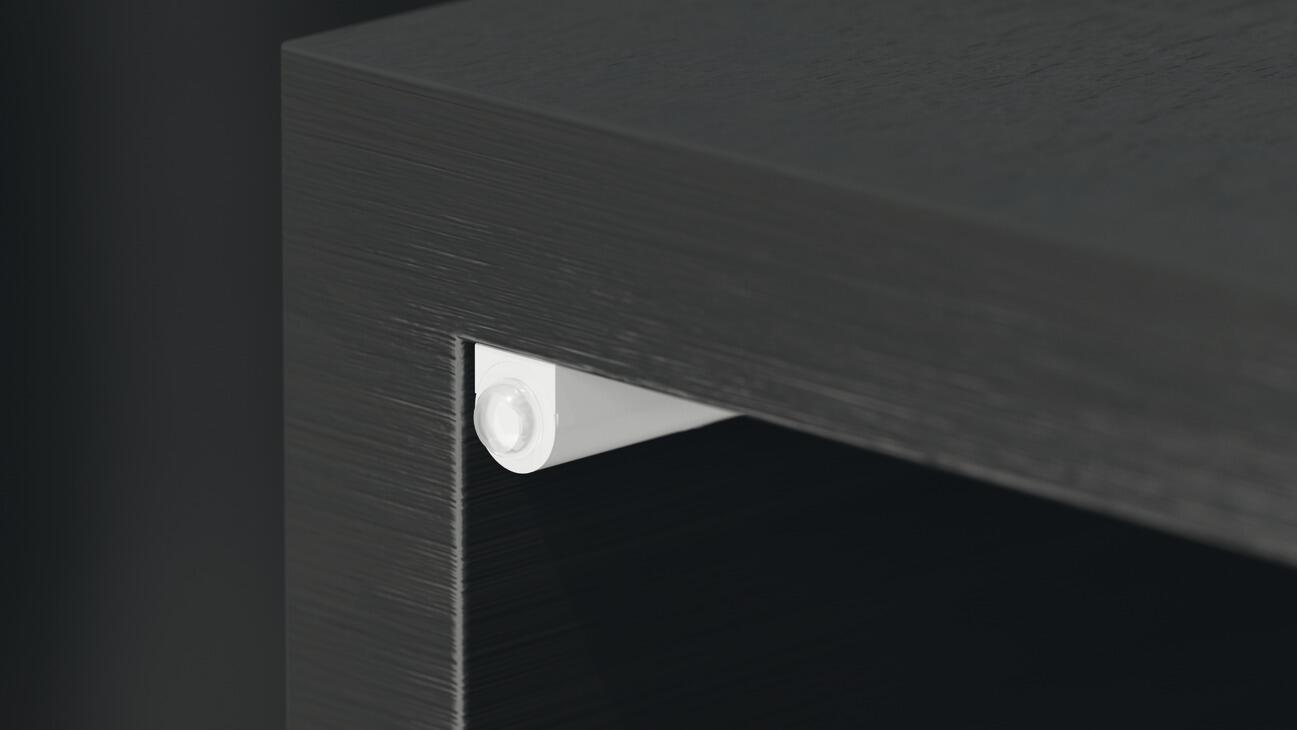

    Installation :-For mounting in drilled hole, or for plug fitting into housing

    Installation note

    Coloured cover sleeve can be used for drill hole in furniture and for housing. Sensor lens protrudes approx. 5 mm

    Hafele Lifetime Guarantee

    7 years
