Multi function switch

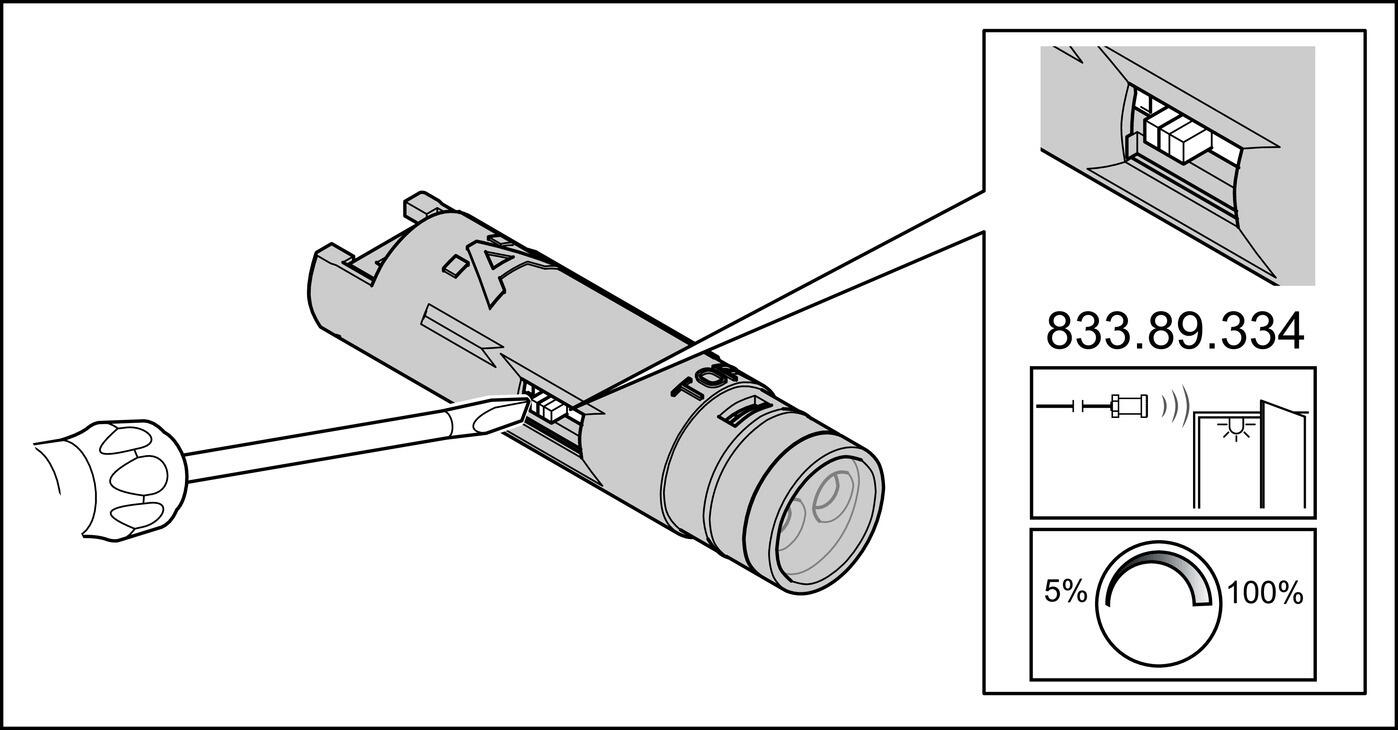

Black microswitch selector on side - Toggles between dimmer/sensor mode
These  12mm diameter switches can be recessed or surface mounted
Colour adjustment with supplied cover sleeves

• Function as dimmer sensor switch or door sensor switch can be changed via integrated microswitch

Version

adjustable as dimmer sensor switch (50-100%) or as door sensor switch (dimming value remains stored)

Switching contact:-touchless

Control output ports:-1 x socket, Loox switch

Colour/finish;-White/Grey/Black

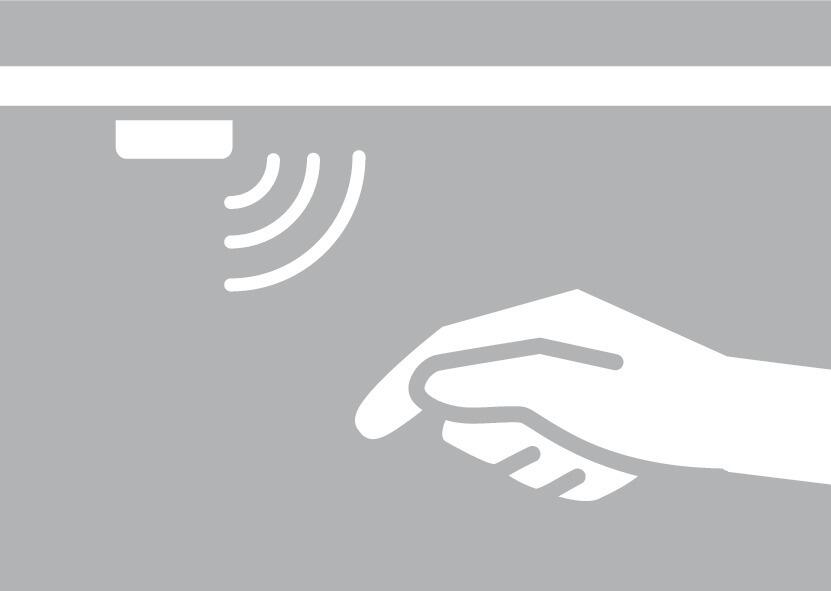

Switching function:-On/off soft, touchless, Door open = light on, door closed = light off, Dimming

Memory function:-Yes (also in currentless condition)

Drill hole diameter:12.00 mm

Length:-44.50 mm

Sensor range:-0 – 75 mm

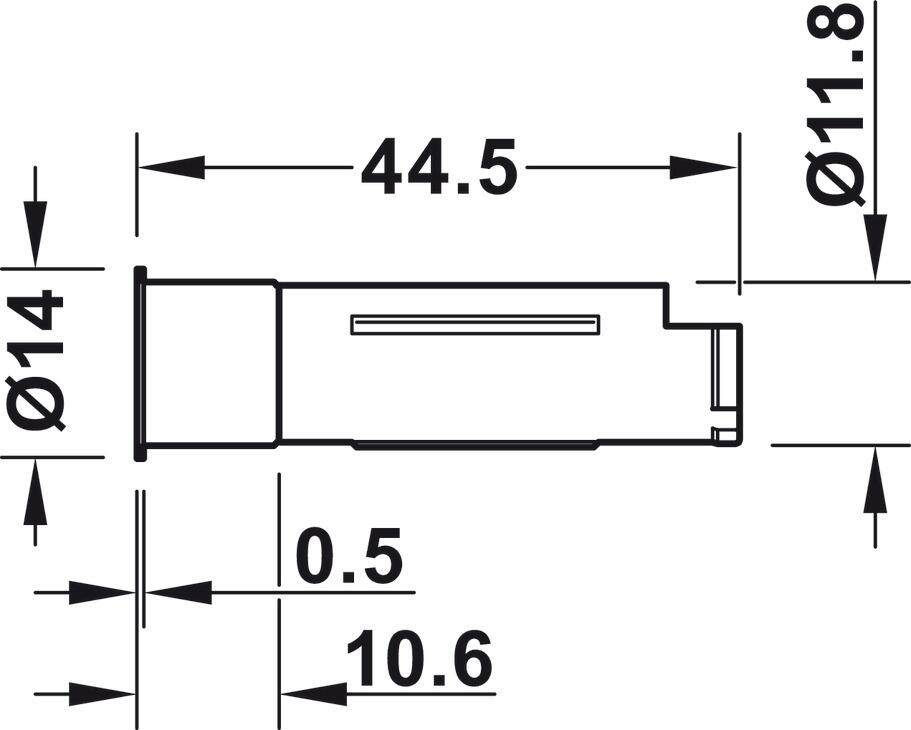

Dim. (Diam x L):-11.8 x 44.5 mm

Power consumption:-0.30 W

Degree of protection:-IP20

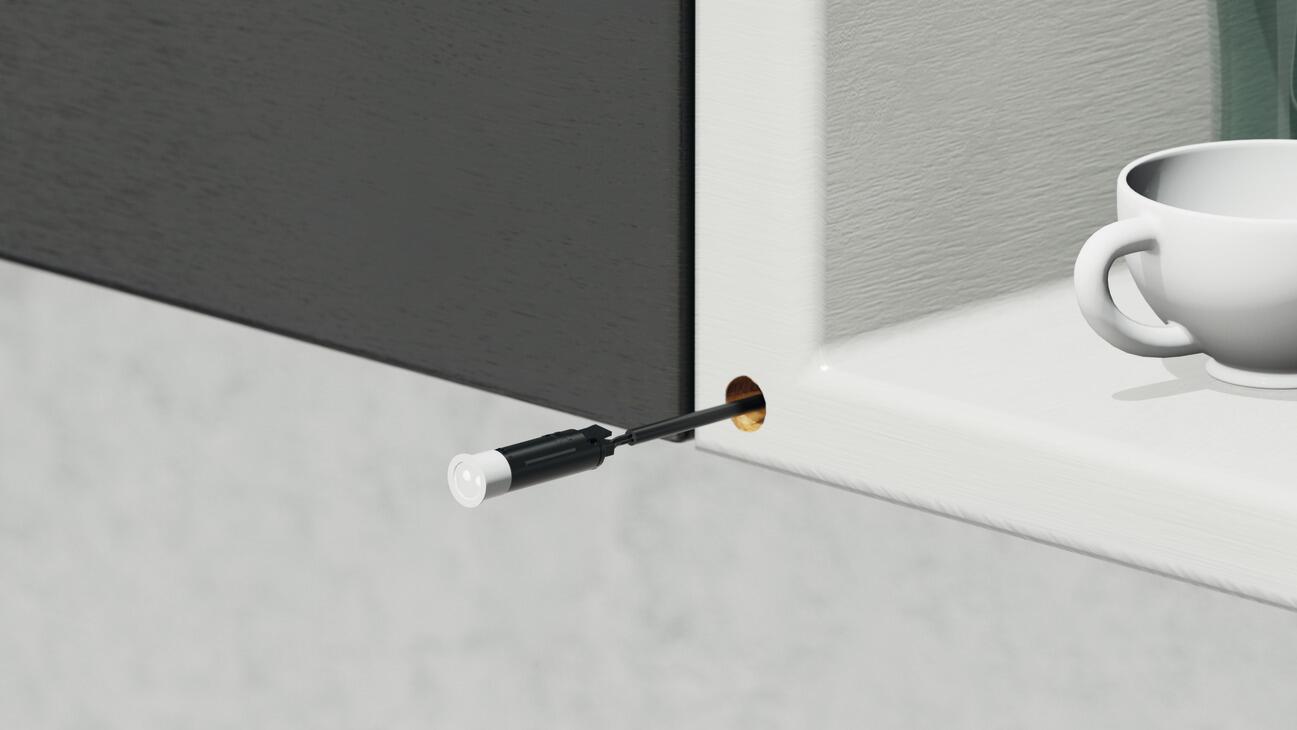

Installation:- mounting in drilled hole, or for plug fitting into housing

Installation note:-Coloured cover sleeve suitable for drill hole in furniture and housing

Hafele Lifetime Guarantee;-7 years

Order reference

Please order lead with snap-in connector for modular switches separately. Length 2 m: Cat. No. 833.89.142                 Supplied with

Consists of:
1x Adjustable sensor switch, black housing
3x Cover sleeves (1x each of white, grey, black)
