PRODUCT DETAILS

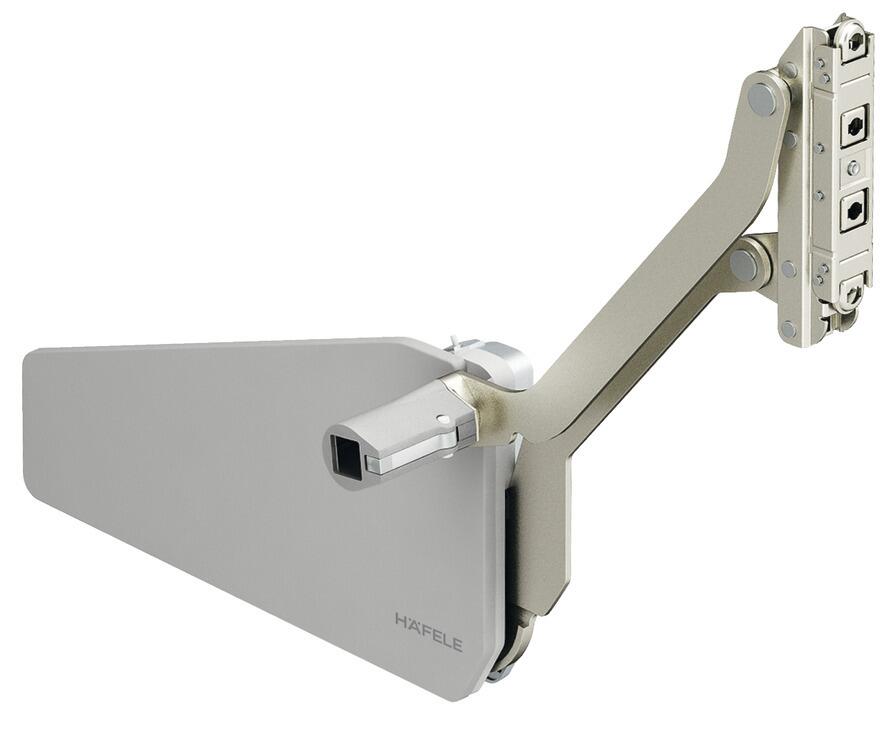

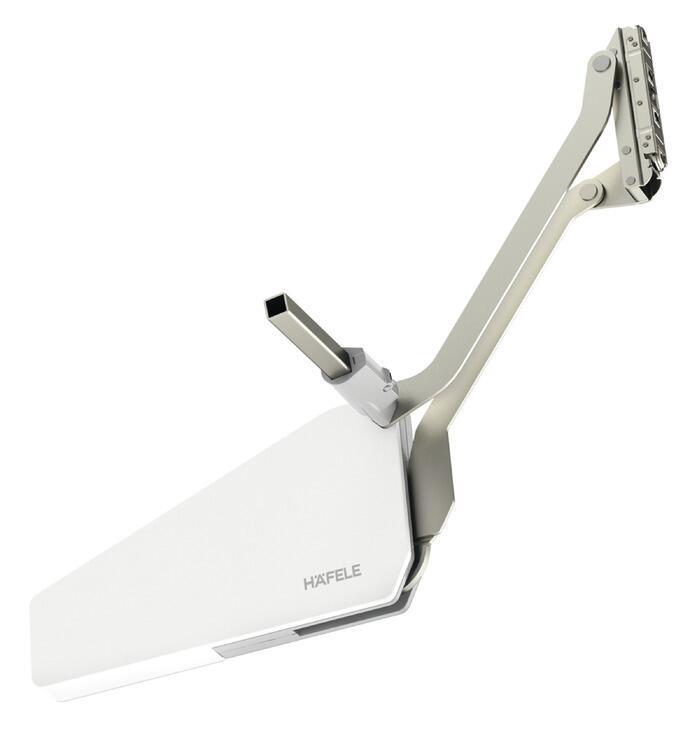

Hafele Free Up - Parallel Lift Up Flap Fittings

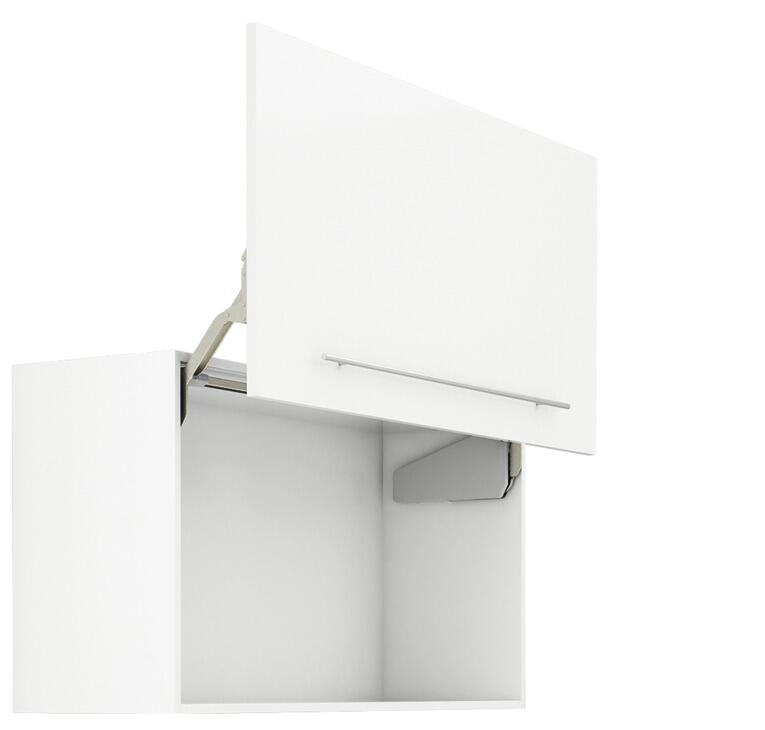

• Ideal for cabinets with front panels above
• Hardly any space required in the room towards the front
• Creates practical "niches" in tall cabinets, e.g. for electrical equipment
• Cabinet contents are extremely easy to access
• Excellent side stability
• Minimum opening resistance, multi-position stop function and integrated soft opening and soft closing mechanisms for extremely pleasant operating feeling
• Rational and quick installation thanks to pins, pre-mounted Euro screws and quick fixing system of the front panel and cross bar
• Stylish and compact design

Free Up

• For one-piece flaps made from wood, glass or with aluminium frame
• Integrated soft close

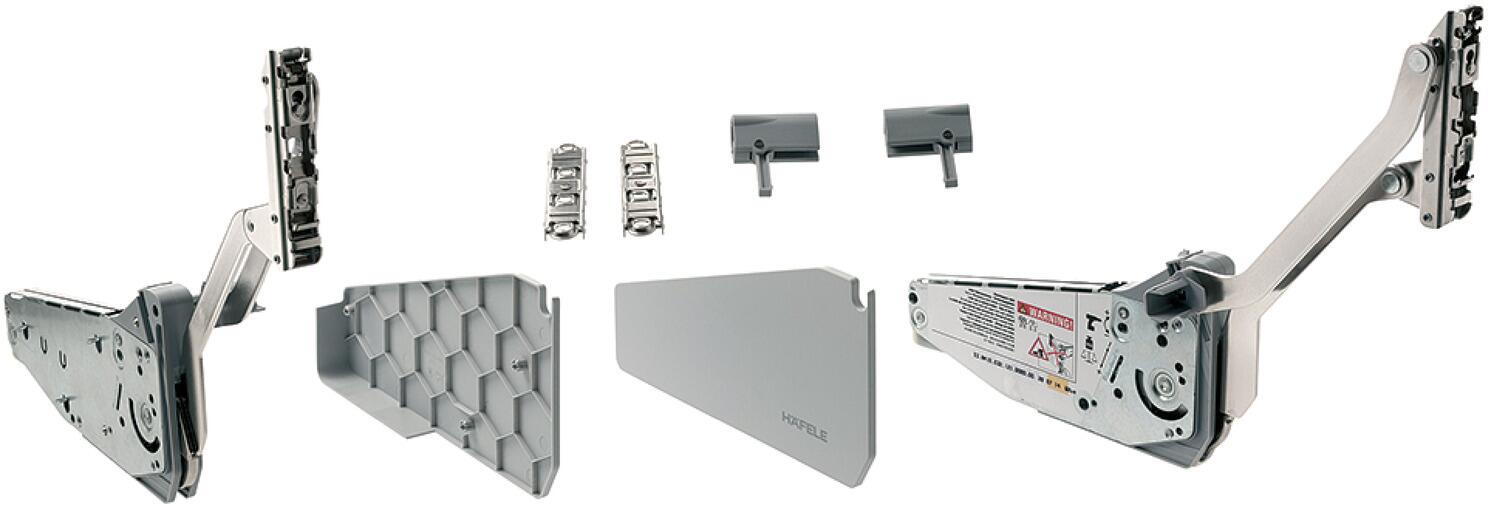

Set includes
1x Parallel lift up front fitting
2x Cover caps
2x Clip-on brackets for wooded flaps or flaps with wide aluminium frame
Installation instructions

Height and side adjustment +1.5 mm, tilting angle +1.5 degree, holding power and opening angle adjustment facility
Requires 1x cross rail, see below in related products
Fitting: nickel-pleated steel, cover cap: grey plastic
Order fixing screws separately

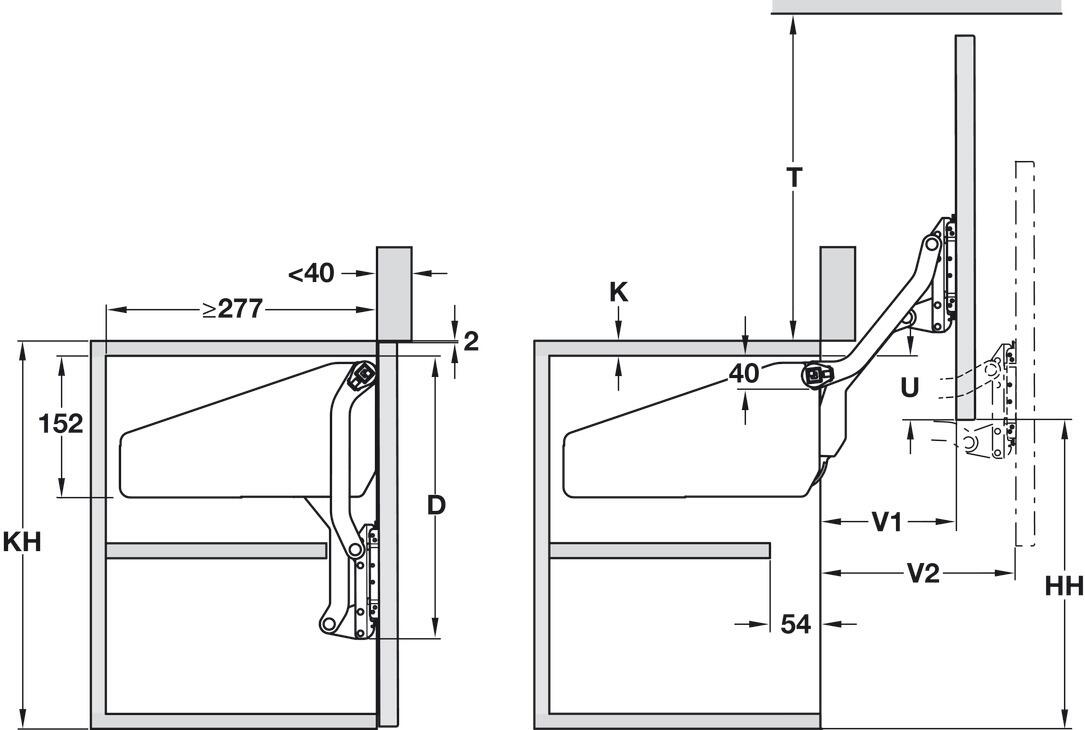

Sample measurements table for selecting the right model based on cabinet height and flap weight. We recommend to use the stronger fitting model when in doubt.
