PRODUCT DETAILS

PLEASE NOTE Fixing clips are not included. Please see Related Products below

• Featuring revolutionary tool less 4D adjustment which gives vertical tilt, side to side and depth adjustment (ideal for perfect allignment and accurate gaps, for inframe and lay on applications)
• 100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawer
• Improved soft close function - with liquid in damper to give continuous soft close
• 40 kg capacity as standard, so ideal for the majority of drawers, with 70 kg option available for very larger drawers
  Incredibly stable with the lowest deflection rates available
• Also available as add on push to open cartridge for handleless applications using soft close runner, Tipmatic cartridge and accessories
• For use with Vionara drawer system

Type of pull out
Full extension

Load bearing capacity
70 kg

Adjustment facility
Height adjustment + 3.5 mm without tools
side adjustment ? 1.5 mm
tilt adjustment + 4 mm
depth adjustment + 3.5 mm without tools using 4D clips

Material
Steel

Colour/finish
Zinc plated, Pre-galvanized

Mounting
Slide-on

Installation

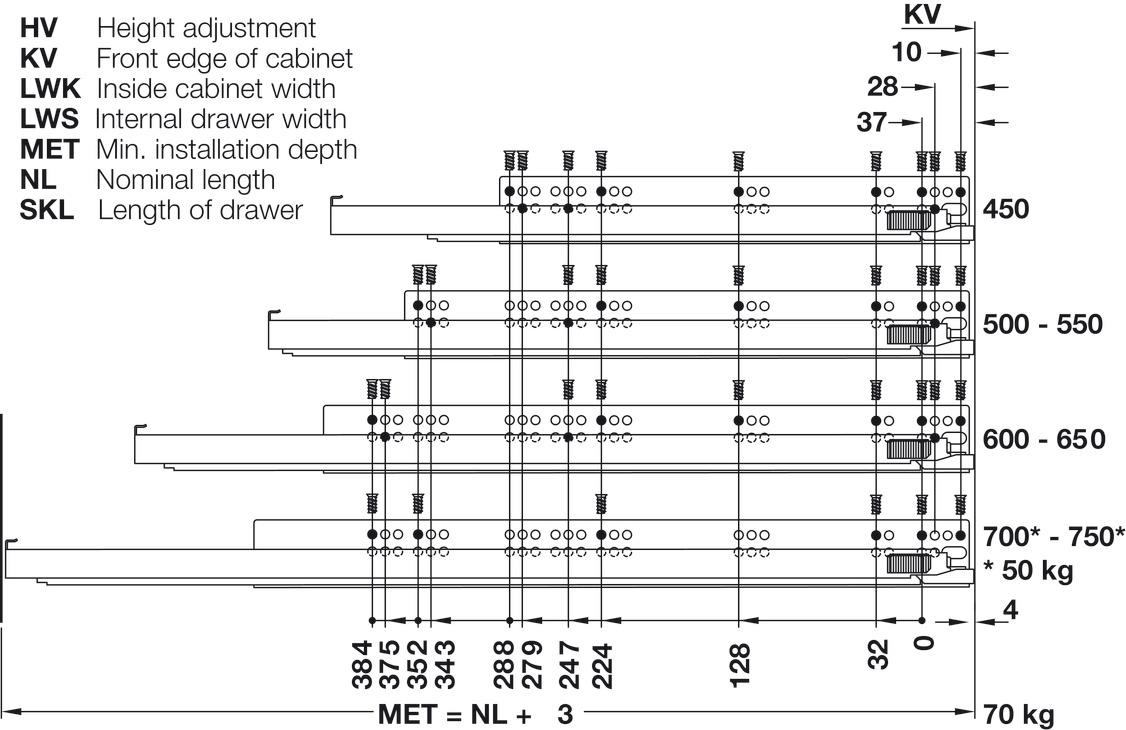

32 mm drilling pattern

Order reference
Front and rear 4D fixing clips, 433.19.090, or 3D fixing clips, 433.19.040, to be ordered separately depending on level of adjustment required
Varianta ? 5 mm countersunk screws, Hospa ? 4.0 mm pan head screws and optional accessories to be ordered separately

Pack size
12 / 15 pairs

PDF Catalogue Page
