PRODUCT DETAILS

• The VS TAL Gate by Vauth-Sagel is a kitchen cabinet solution suited for cabinet widths 500mm and 600mm that is developed for maximum storage space and easy access.
• This practical pull-out brings out the best in narrow tall cabinets. It offers a space-saving solution which is easily opened with one pull which reveals the entire contents of the cabinet.
• With improved top runner for a smooth motion

Version
Centre mounting

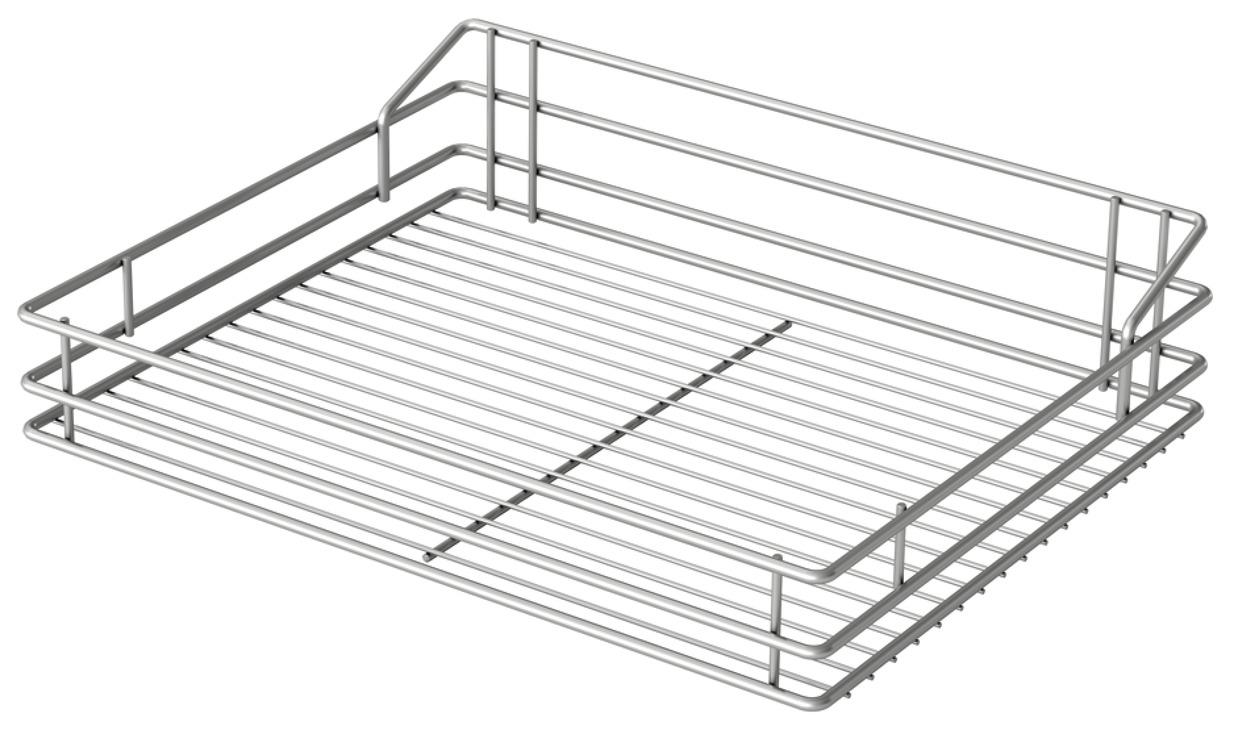

Basket style: Classic silver linear wire

Type of pull out
Tall unit with hinged door

Material
Steel

Note on load bearing capacity
Per basket

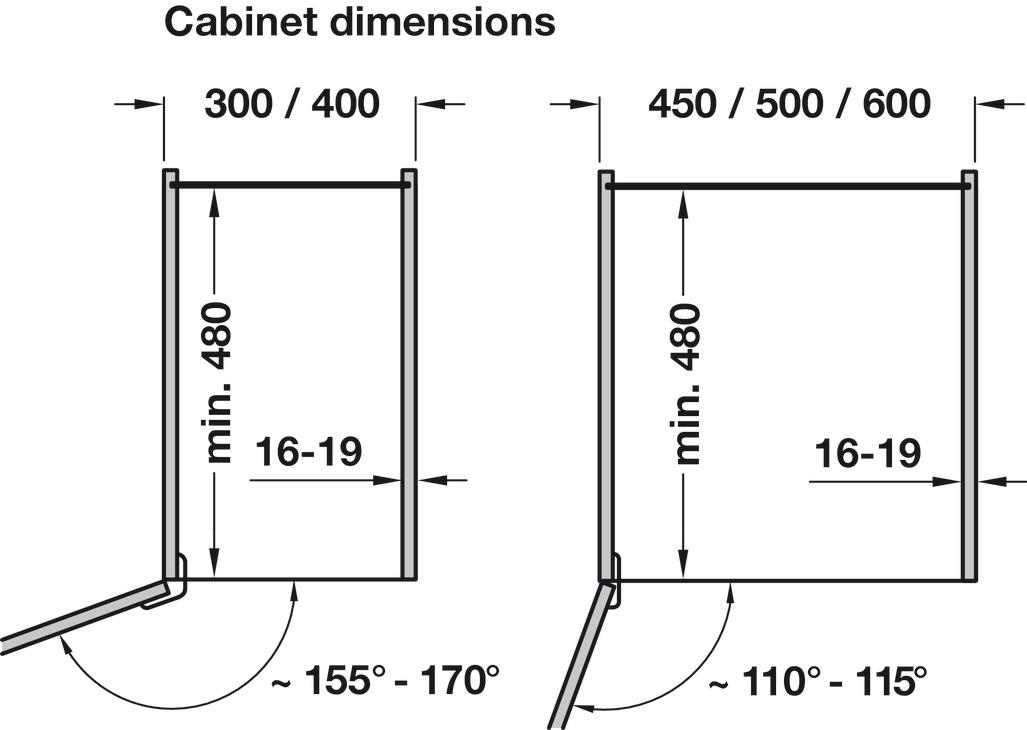

For internal cabinet depth
480 mm

Installation
For installation behind hinged doors
Screw fixing

Warranty/guarantee
10 years

Recommended hinges (not included):
110?/120? for 500 and 600 mm larder units.
If soft closing required, hinges with damper must be used.

Order reference
Recommended hinges (not included): Wide angle 110?/120?
If soft closing required, hinges with damper must be used
Single baskets can be ordered in addition separately

Supplied with

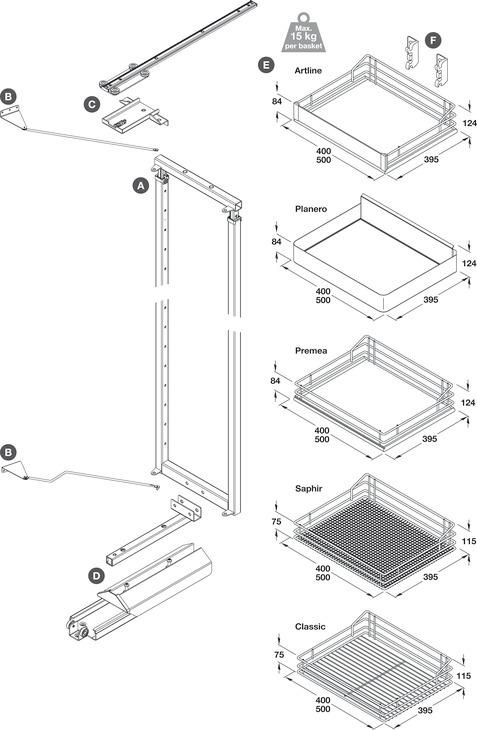

1x Frame set
1x Runner set
1x Basket set (4 or 5 baskets)
Fixings materials

PDF Catalogue Page
