PRODUCT DETAILS

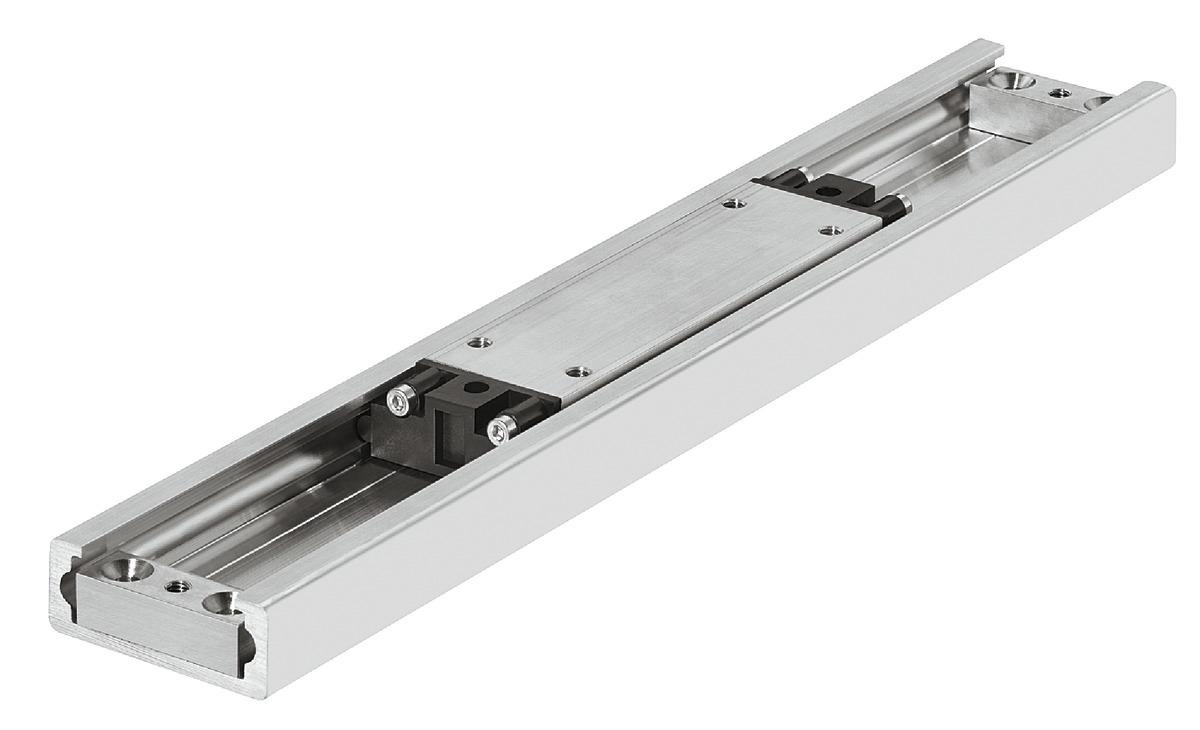

• Track with ball bearing mounted carriage for sliding base units, table tops or display walls
• Linear motion guide and ball bearing carriage
• Corrosion resistant

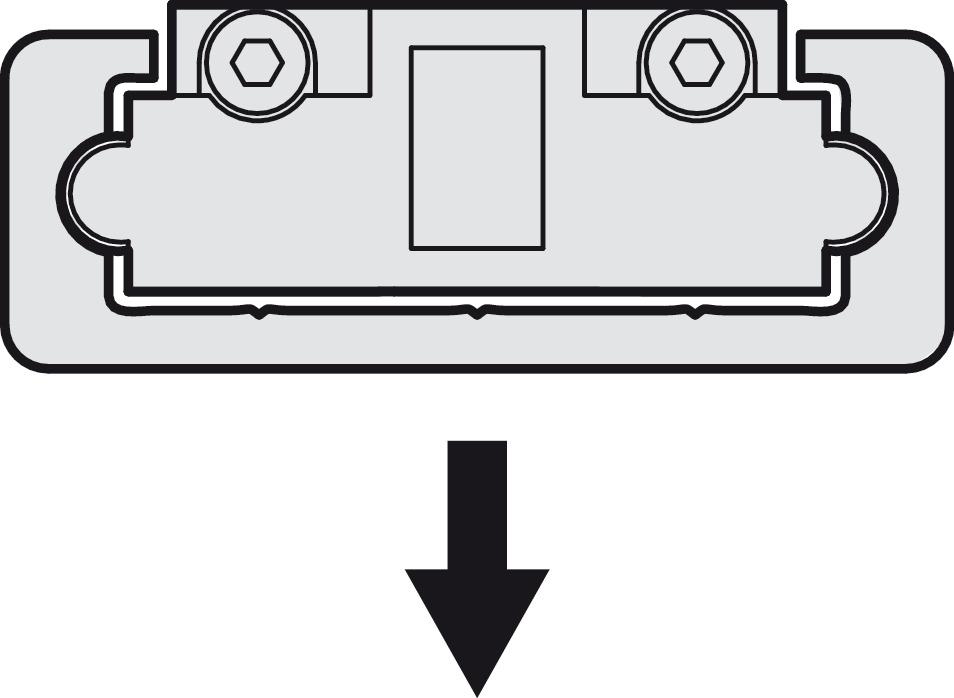

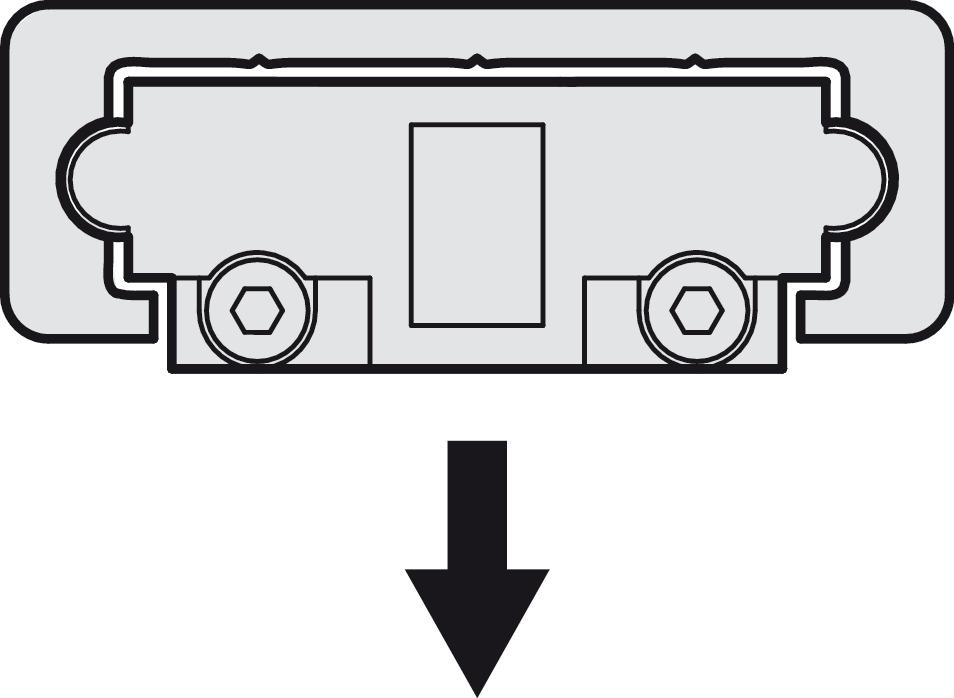

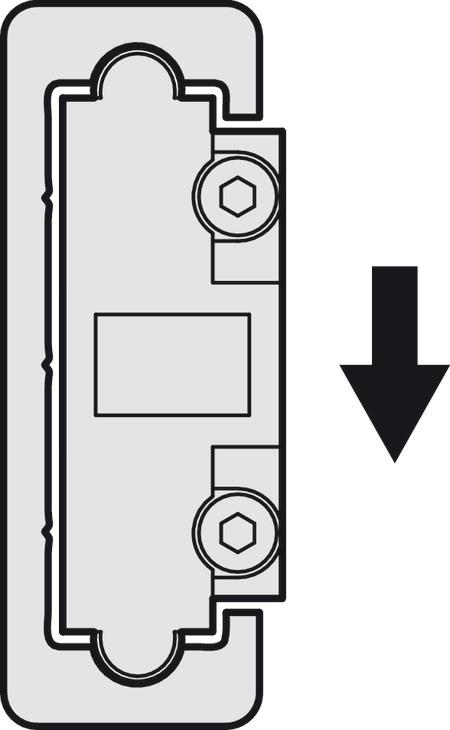

• Load bearing capacity determined by mounting position and number of ball bearing carriages. Please see catalogue page for info.
• Weight must be evenly distributed over the rec-circulating ball carriages
• The specified values apply to performed test distance of 80,000 m

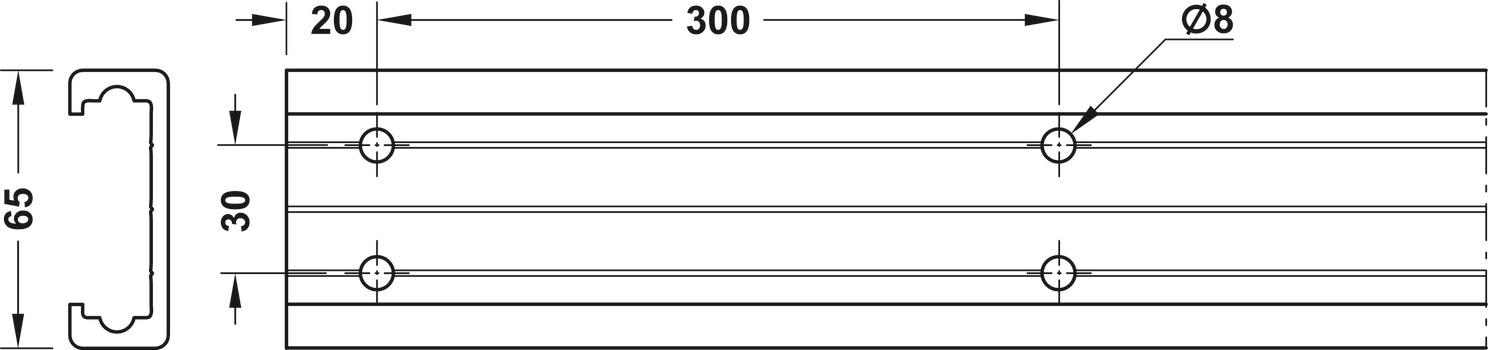

• Fix track as recommended on rigid or flat surface

Material
Aluminium

Area of application
For sliding objects horizontally, such as cabinets, claddings, display walls etc.

Version
Not drilled
Can be cut or extended to required length
Corrosion resistant, dust and dirt repelling

Installation
Screw fixing

Order reference

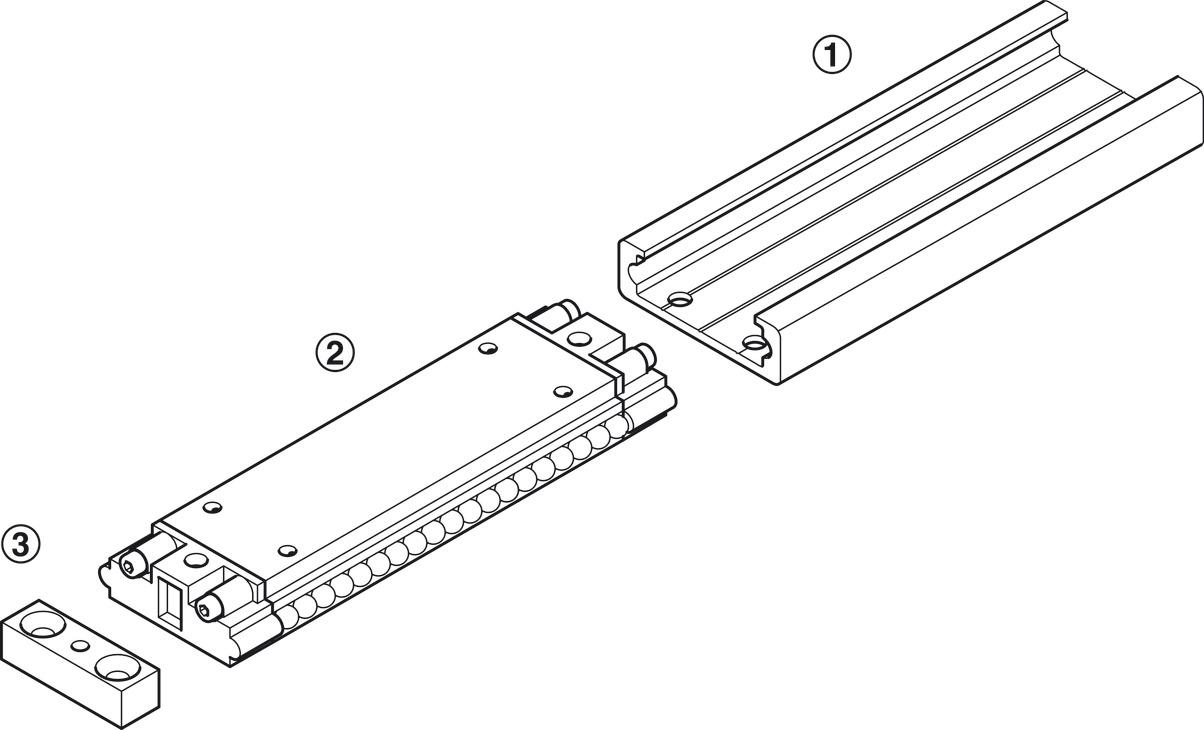

Ball carriages, end stops, M6 fixing screws and accessories to be ordered separately

Pack size
1 piece
