PRODUCT DETAILS

• Centre mounted larder units allowing full access to either side of the baskets
• Bottom runner has soft closing action to ensure smooth and gentle closing of the pull out
• Compact packaging with interstacking baskets and split frame
• Manufactured in the U.K.


• Hanging frame installation height adjustable 1700-1950 mm or 1950-2200 mm
• The top guide must be fixed under the top panel or shelf, the runner is base mounted
• Storage baskets especially shaped to hang centrally in a 300 or 400 mm wide unit
• Bracket and crossbar included to fix cabinet doors to larder unit

Version
With classic chrome linear wire baskets

For internal cabinet depth
485 mm

Colour/finish
Hanging frame, ball bearing runner, top runner, bracket and crossbar, door connecting strip: Silver epoxy coated Storage basket: Chrome plated

Material
Hanging frame: Tubular steel, 25 x 25 mm
Runners, bracket, cross bar and connecting strips: Steel
Baskets: Heavier gauge steel wire

Load bearing capacity pull out shelf
10 kg

Type of pull out
Single extension

Features
Centre mounting
Single extension
Soft closing
Inter stacking
With classic chrome linear wire baskets

Installation
Screw fixing
For door front fixing

Number of baskets
5

Order reference
Cabinet is not included

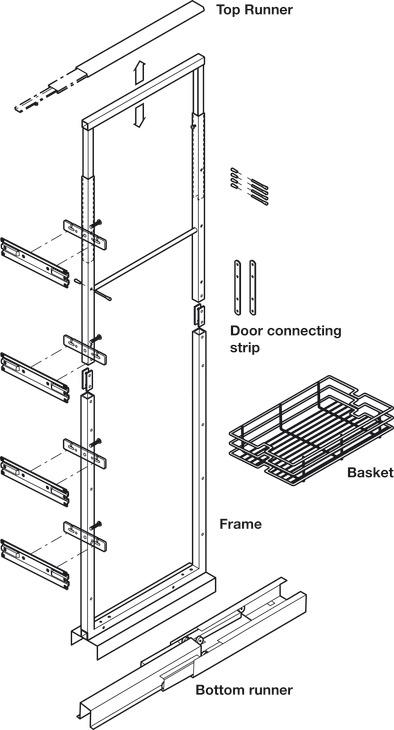

Supplied with
1x Hanging frame with mounting accessories
1x Ball bearing runner
1x Top runner
5x Storage baskets (please note the below)
-300 mm version includes 3 x 225 mm and 2 x 250 mm width baskets
-400 mm version includes 3 x 325 mm and 2 x 350 mm width baskets
1x Bracket and crossbar
1x Door connecting strip
Fixing materials and fitting instructions
