PRODUCT DETAILS

• Can be freely positioned at intervals of 32 mm
• Easy installation and disassembly without tools
• The system can be adapted to customer requirements at any time
• Individual configuration with hook-in elements

Application

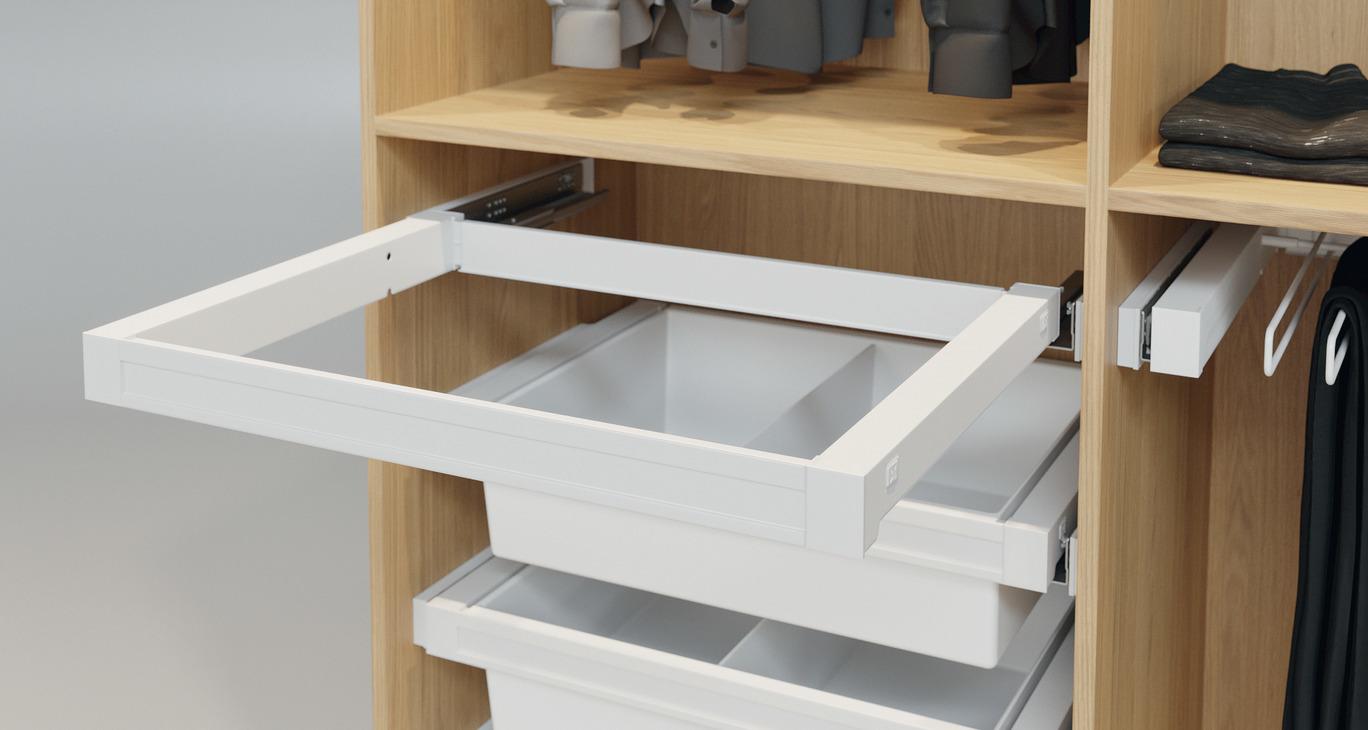

Pull out frame for individual configuration with hook-in elements such as boxes, shoe rack, laundry bag, cosmetic insert, jewellery insert or hook-in shelf. The pull out frame can also be cladded on the front with a designer panel or wooden panel (optional)

Type of pull out
Full extension with self closing and soft closing mechanisms

Version
Cross profile can be cut to required size

Installation
Frame: For plug fitting without tools

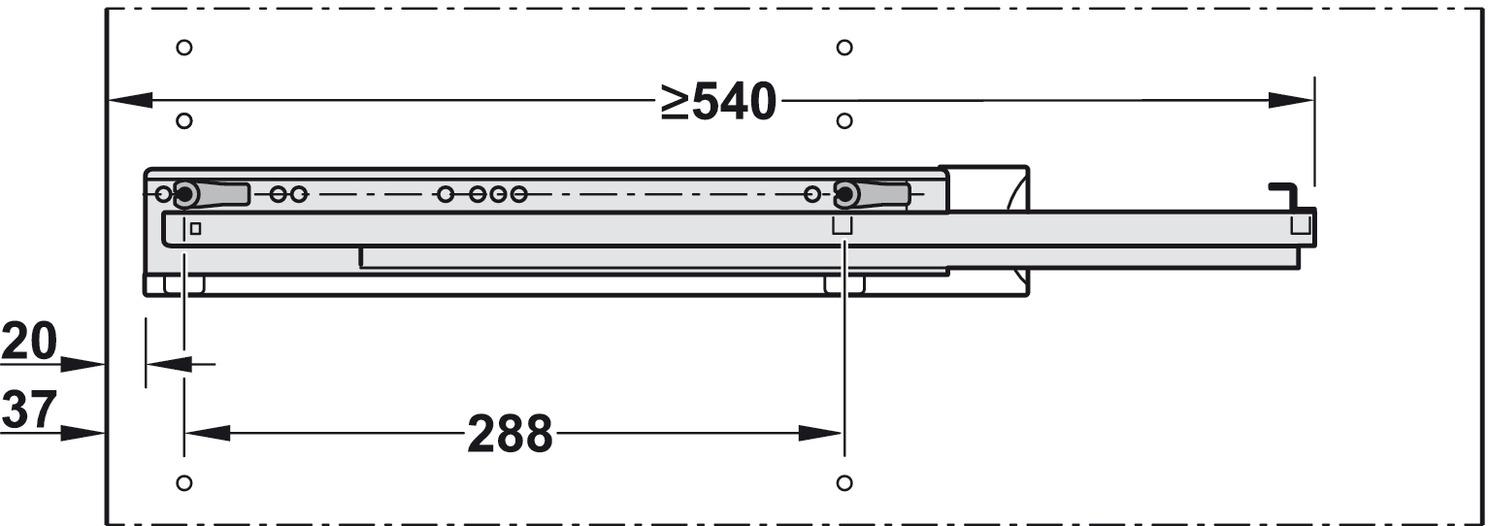

Runners: For mounting in provided series drilled holes (wooden cabinet) or on strut (aluminium frame system) without tools

Load bearing capacity
Max. 15 kg

Internal installation depth
Min. 520 mm

Installation height
Max. 900 mm

Nom. length
500 mm

Material
Frame: Steel and aluminium
Joint set: Plastic

Finish
Frame: Powder coated

Supplied with
2x End sections with joints
2x Cross profiles
1 pair of Runners with Hafele Dresscode connector

Order reference

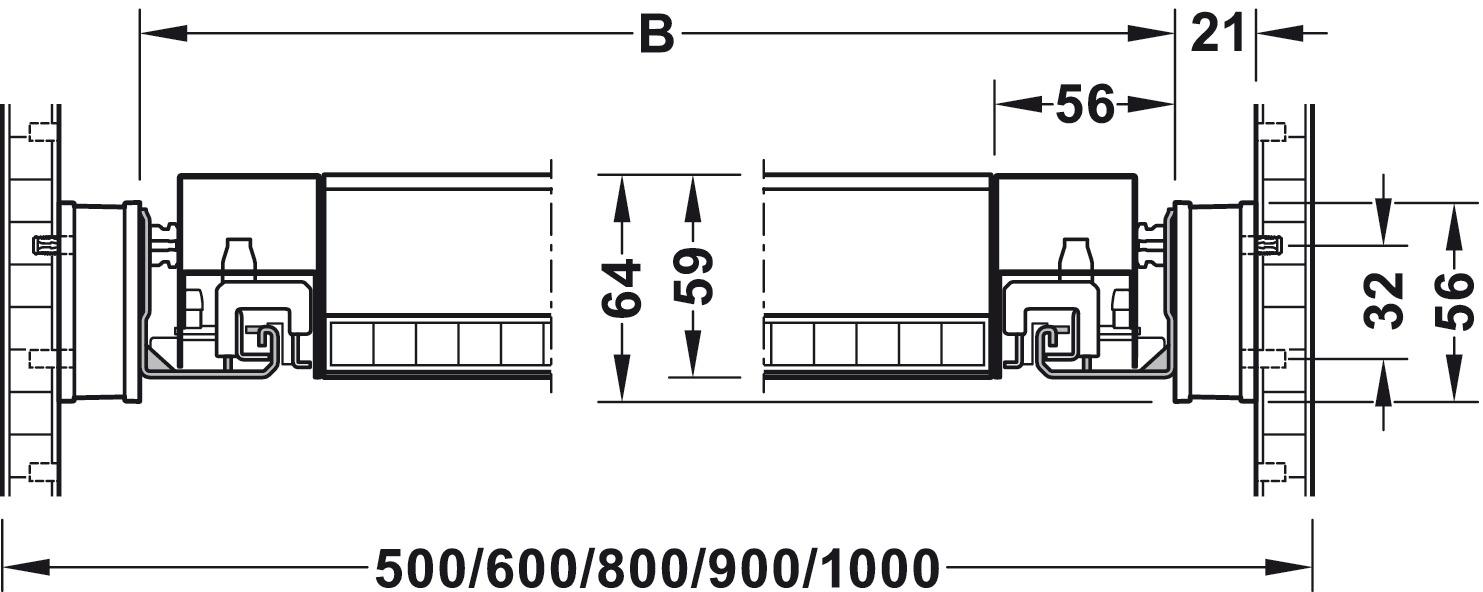

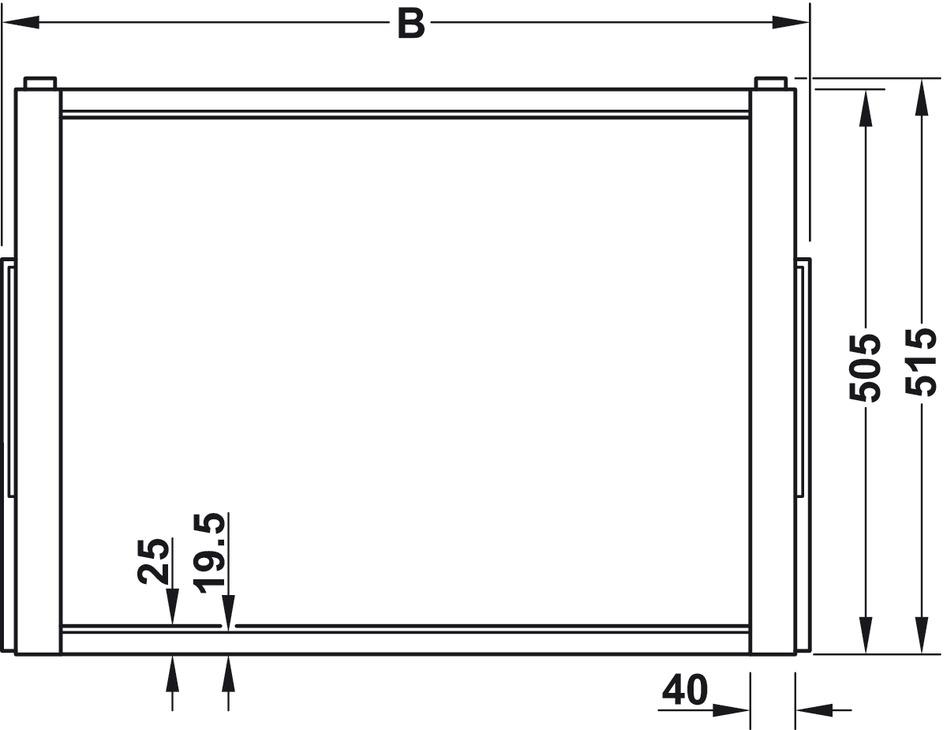

Cabinet width = 2 x side panel thickness + frame width B + spacer bars (42 mm)
Spacer bars are mandatory in order to compensate for the door offset in the cabinet. Please order separately
