Matrix Box Slim A standard drawer sides, 30 kg, with integrated rear panel holder
Standard drawer suits 16 mm drawer base and rear panel
Synchronised runners are full extension with push to open mechanism on both sides
Vertical inner sides for optimum capacity
Quick to assemble

• Synchronised full extension runners:

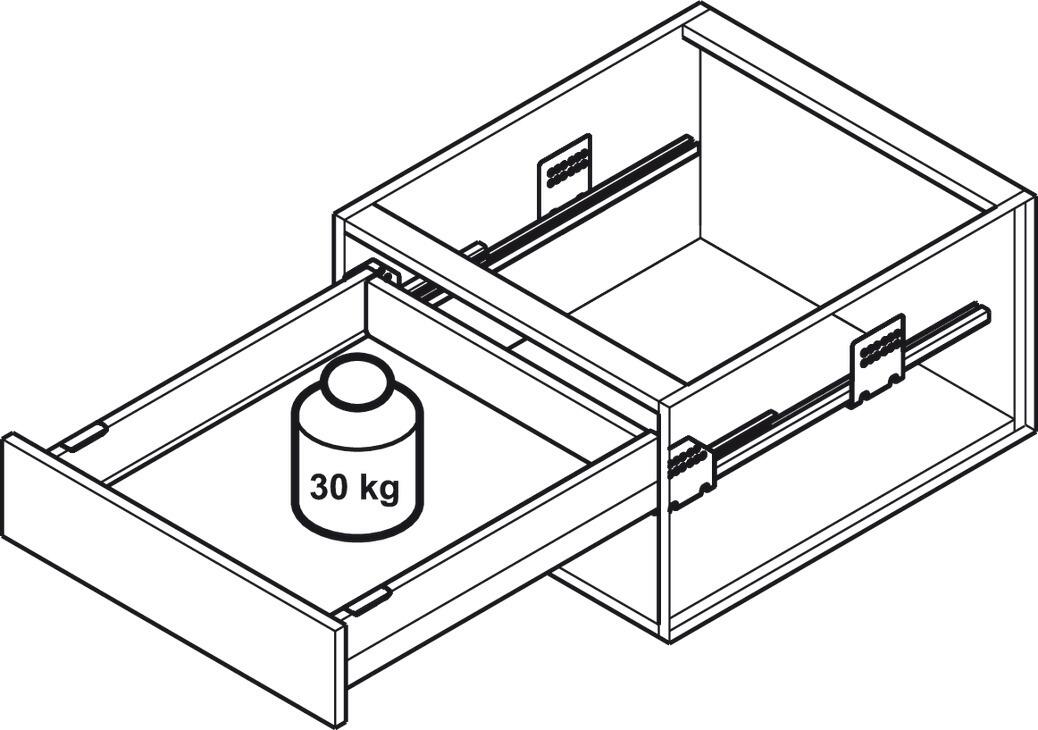

  Load carrying capacity 30 kg per pair
  With integrated push to open mechanisms
  With integrated rear panel fitting

Load bearing capacity:-30.00 kg

Material:-Steel

Type of pull out:-Synchronised runners are full extension with push to open mechanism on both sides

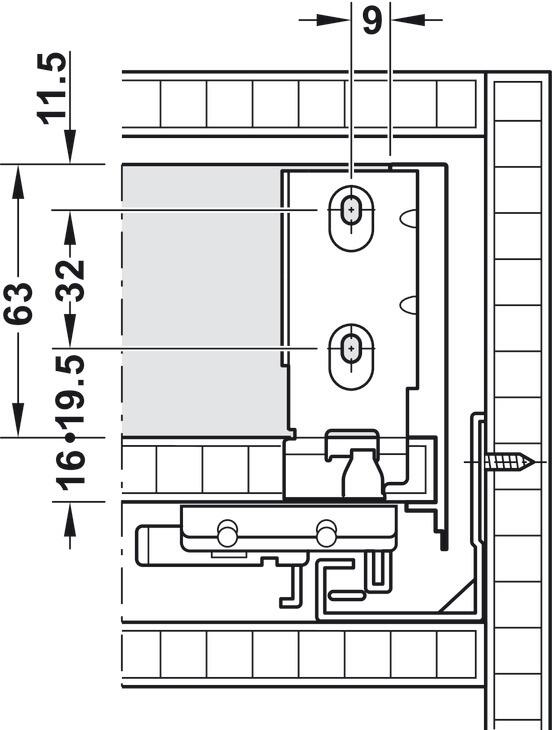

Drawer side height:-89.00mm

Front fixing brackets:-for screw fixing

Installation:-Suits 16mm drawer base and rear panel

Hafele Lifetime Guarantee:-25 years

Order reference

Order wood screw 3.5 x 13 mm raised head screws, woodscrew 3.5 x 16 countersunk screws and Hospa 5 x 14 mm countersunk screws separately

Vauth-Sagel bin systems VS ENVI XX, VS, ENVI Space Pro and ENVI drawer are suitable for use with Matrix Box A drawer sides

Supplied with

Each set includes:
1 pair thin-walled drawer sides with rear panel fitting
1 pair cabinet runners
1 pair runner couplings
1 pair front fixing brackets for screw fixing
2 fixing clips
2 cover caps
Fixing screws for front fixing brackets

Warranty/Guarantee information

This product is covered under Hafele’s Lifetime Guarantee.

All products covered under the Hafele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.

All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
