PRODUCT DETAILS

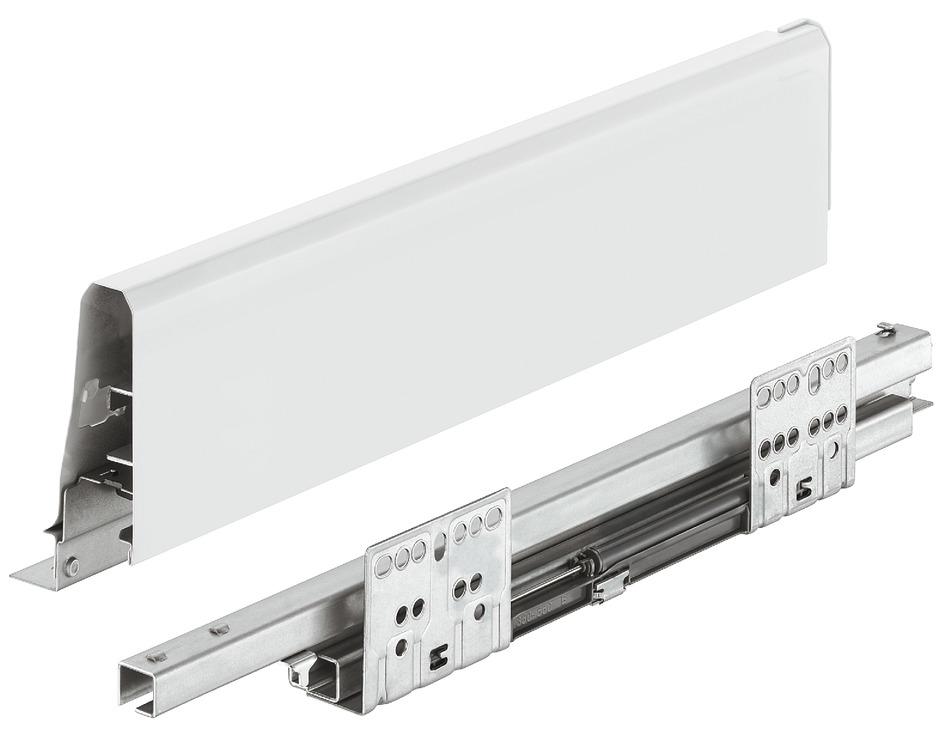

Matrix drawer Runners & sides kit- 120mm high sides

Designed to be quick to assemble and install
Standard drawer suits 16 mm drawer base and rear panel
Full extension runners with integrated soft closing mechanism
Runner gives smooth and quiet opening with load carrying capacity of 35 kg per pair
Drawer fronts can be adjusted from above by means of the front fixing bracket, neatly concealed by a trim cap
Drawer fronts can be removed without tools

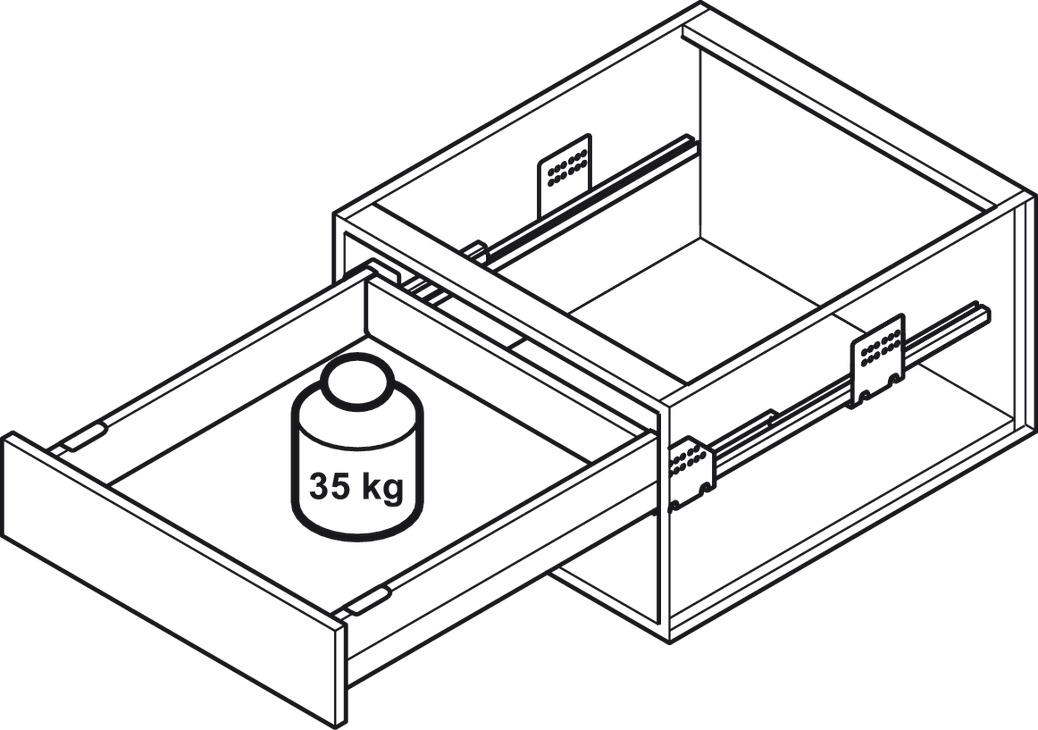

Load bearing capacity
35 kg
Material
Steel
Type of pull out
Full extension, with integrated soft closing mechanism

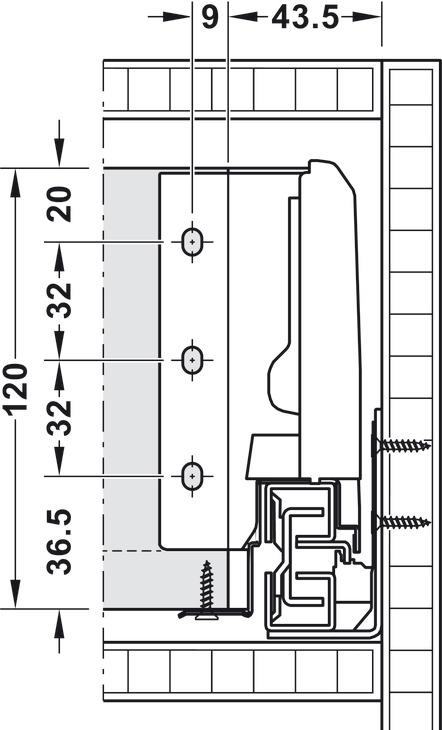

Drawer side height
120 mm
Adjustment facility
Height and side adjustment from the inside after installation
Höheneinstellung ? 2 mm
Seiteneinstellung ? 1 mm
Hafele Lifetime Guarantee
20 years

Order reference
Screws for fixing the drawer front are provided but, depending on the drawer front thickness, you may wish to use alternative fixing screws
Order Hospa 3.5 mm pan head screws and Varianta 5 mm countersunk head screws separately
Supplied with
1 pair Double-walled drawer side with rear panel fittings

1 pair Cabinet runners

1 pair Fixing brackets

1 pair Rear panel fittings

1 pair Cover caps
