Magnetic Catch, For Screw Fixing, Elite - Hafele
Product code: 246.24.600
reward points
PRODUCT DETAILS
These high quality magnetic catches are:
Concealed from view
Constructed to provide a flush fit to any door of frame
Able to hold in-frame doors securely and quietlySold in packs of 5

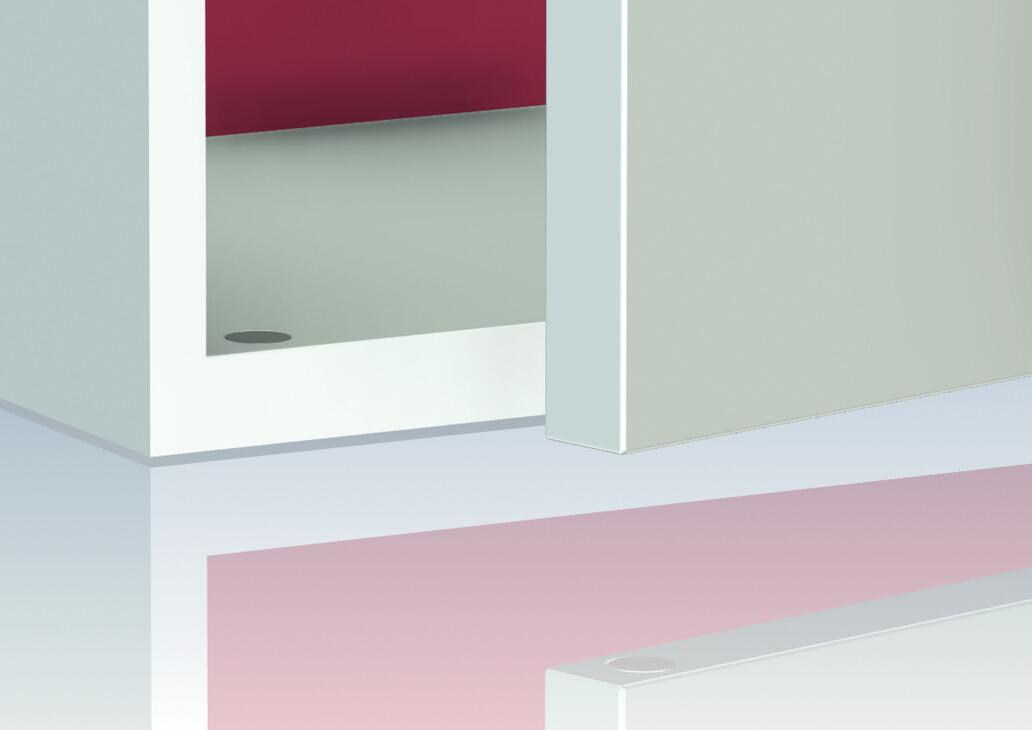

The catches can be mounted within the woodwork so they are just visible, or mounted sub-flush so they can be totally invisible after filling and finishing
With any magnets the greater the gap between them the weaker the attractive force will become - e.g. with a 2 mm gap between the magnets there is a 2 kg pull
For best results we recommend all flush magnets are bonded into their fixing hole with a suitable contact adhesive
Colour/finish :-Nickel
Material :- Neodymium
For wood thickness :-19.00 mm
Installation :-For screw fixing
Supplied with
1x North magnet
1x South magnet
FixingsPower pull weights 2kg or 4kg available

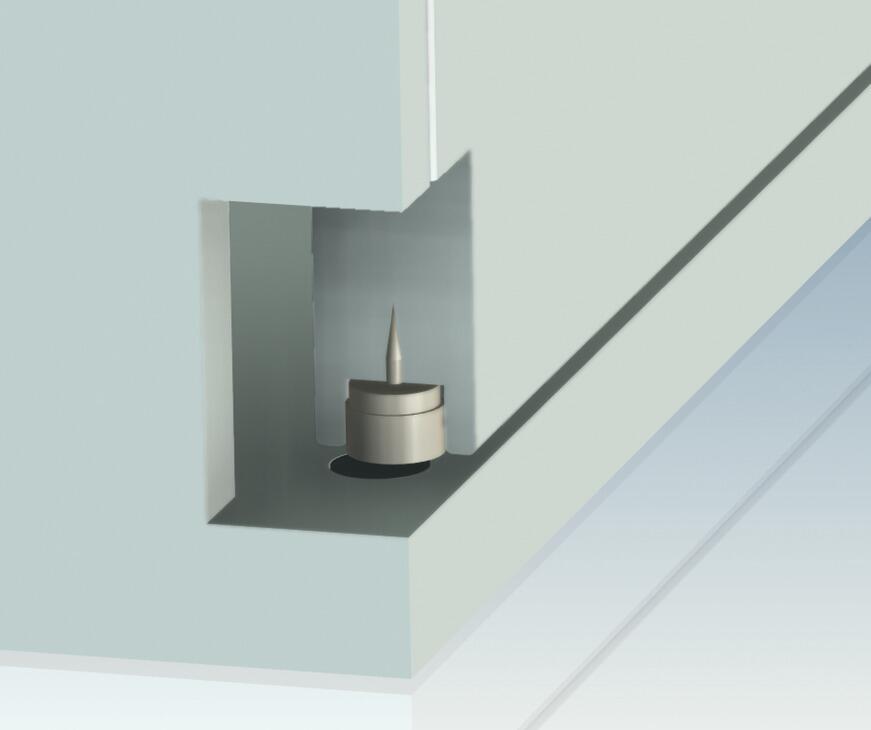

Additional information attributesThe spike is there for alignment only, not for screw fixing.
Drill a pilot hole deep enough for the magnet and spike, glue fix and press the magnet in
