PRODUCT DETAILS

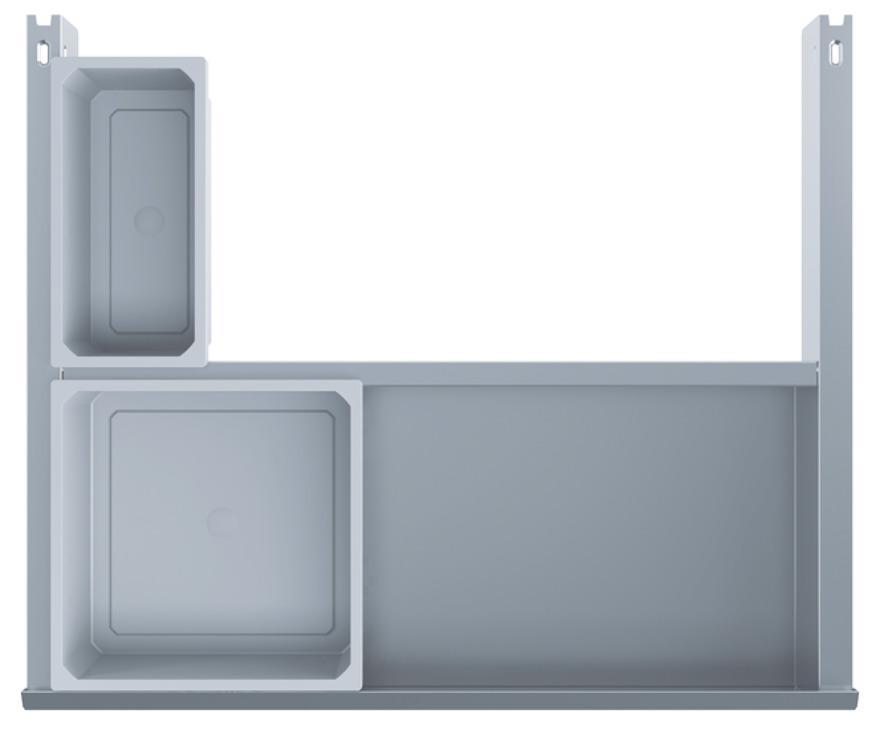

• More space, more organisation - VS ENVI Drawer
• This innovative add on module acts as an organisation drawer and enhances the waste bin system. Expands the usable storage space with a drawer holding containers for cleaning and kitchen consumables. Depending on the position of the water connections, plastic containers can suspended in the powder coated metal framework
• Usage is independant, can be installed wherever space permits and can be stacked
• Two synchronized full pull-outs provide for an easy opening and soft-closing
• Easyfit: tool-free installationof bin support onto the runners
  Integrated installation template; no measuring necessary when installing into the cabinet
• Can be retrofitted
• Multifunctional fitting options
• Vairable mounting of the plastic containers in the frame construction
• Total system capacity: 3.9 litres

For internal cabinet width
468 – 470 mm

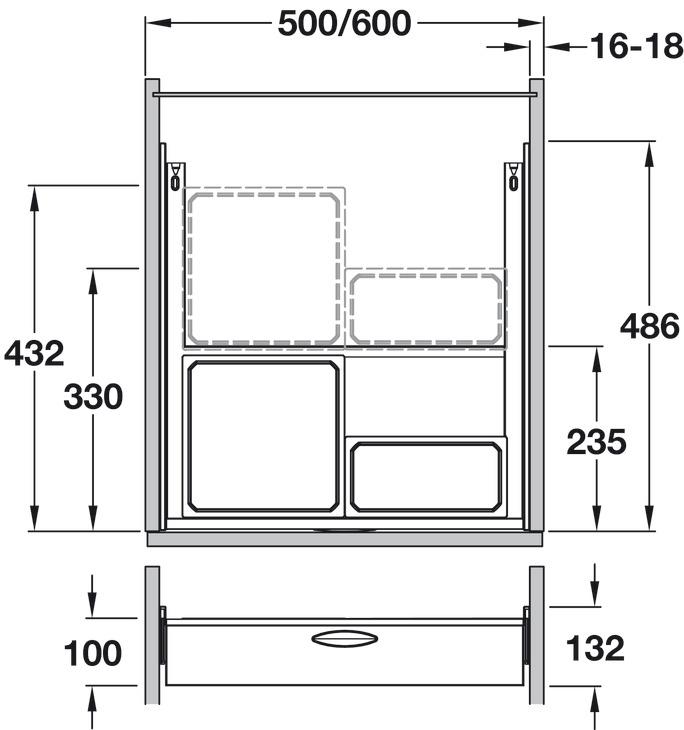

Installation depth x height
486 x 132 mm

Capacity
3.9 l (1 x 2.7 + 1 x 1.2 l)

Material/finish
Epoxy coated steel side panels, frame housing and mounting components Plastic bins

Area of application
Suitable for 500 or 600 mm cabinets with 15/16mm or 18/19mm board thickness

Type of pull out
Manual

Installation
Screw fixing

Warranty/guarantee
10 years

Warranty/guarantee information
Vauth-Sagel’s products are of excellent quality and workmanship and are extensively tested. Vauth-Sagel has hence set out to guarantee their products are free from construction, material and manufacturing defects for up to 10 years from the purchase of the items.
Subject to T&C’s.

Pack size
1 piece

Catalogue Page

Fitting Instructions
