Plano Medial Flap Hinge For 15-16 Mm Thickness, 90 Degree Opening - Hafele
Product code: 342.75.628
£0.00
£2.78
(
£2.32
ex VAT)
Earn28
reward points
reward points
Please choose from the options below to show product code, price and availability
Bulk Buy Discounts for:
Nickel plated
| Quantity | Price (inc VAT) |
| 10 - 19 | £2.65 |
| 20 - 39 | £2.51 |
| 40 + | £2.23 |
PRODUCT DETAILS

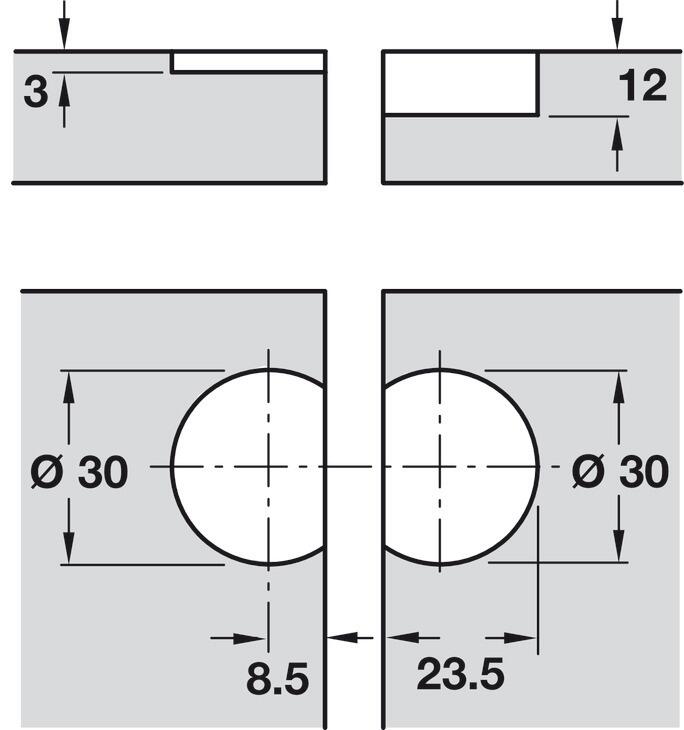

- 30 mm diameter cup
- 90 degree opening angle
- For 15-16 mm flap thickness
- Flush fitting
- Zinc alloy cup and brass arm
- Order 2.5 diameter countersunk wood screws separately
Pack size
1 piece
