Product code: 940.81.010

£0.00
£723.75
(
£603.13
ex VAT)
Earn7238
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Junior 80 is a vertically adjustable sliding door fitting for interior doors
    Exceptionally light and silent action
    All parts are corrosion resistant
    Ideal for cavity applications


    Installation drawing reference 17689
    Symmetric 80 to allow simultaneous operation of two bi-parting doors operating on Junior 80 System
    For 2 sliding doors of max. 1200 mm width each
    Installation drawing reference 20663 for Symmetric 80
    Soft Close Mechanism not suitable for use with this set

    Number of door wings in a system max.

    2

    Model

    80/Z

    For door weight

    ≤80 kg

    For door width

    500 – 1,200 mm

    Material/finish

    Rubber, Polyurethane

    Mounting type

    Wall pocket solution

    For door thickness

    ≥26 mm

    Area of application

    For 2 doors

    Running position

    Top

    Door processing

    for screw fixing

    Order reference



    Hawa-Junior 80 tracks and fitting sets to be ordered separately

    Supplied with

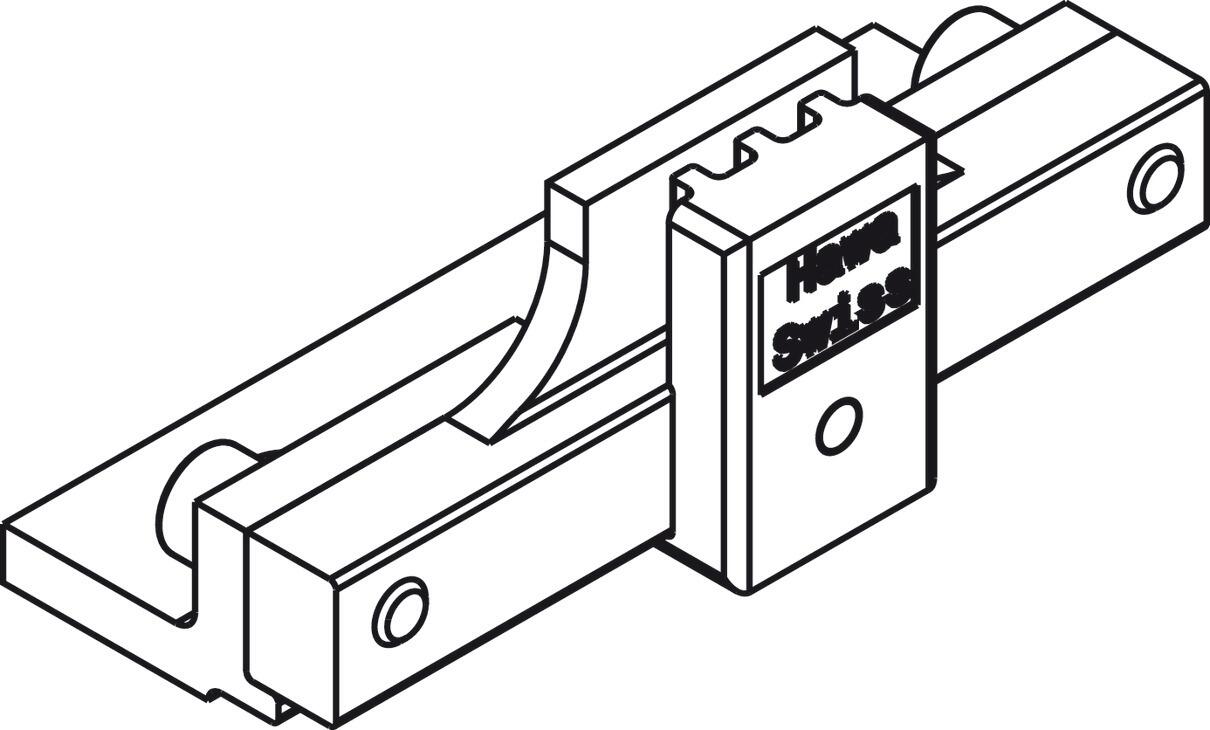

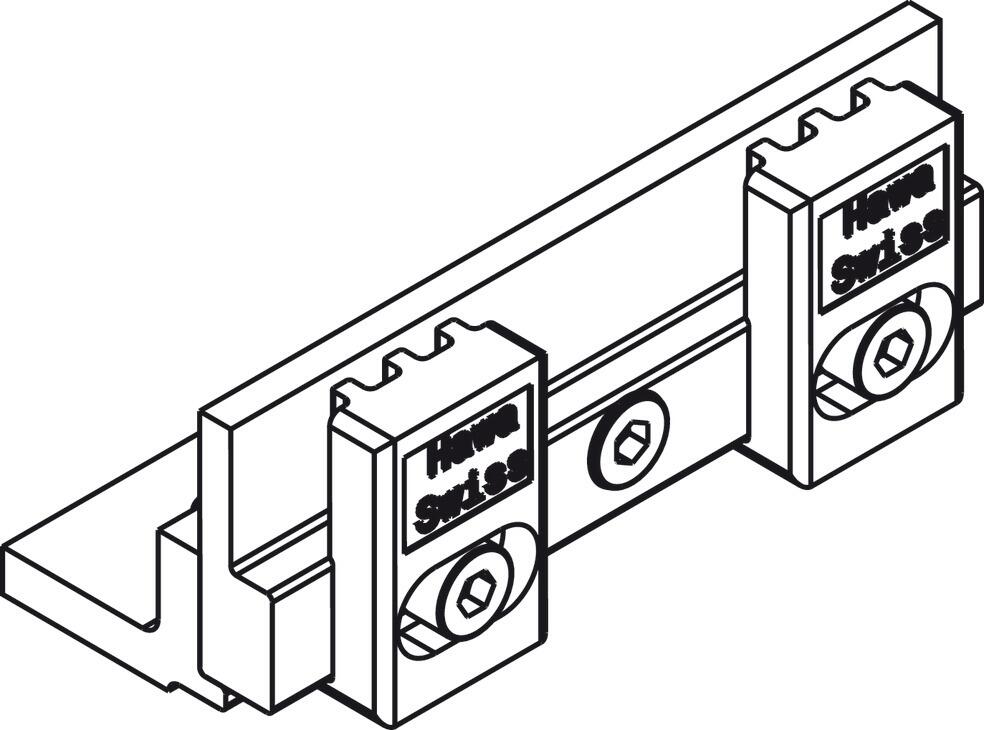

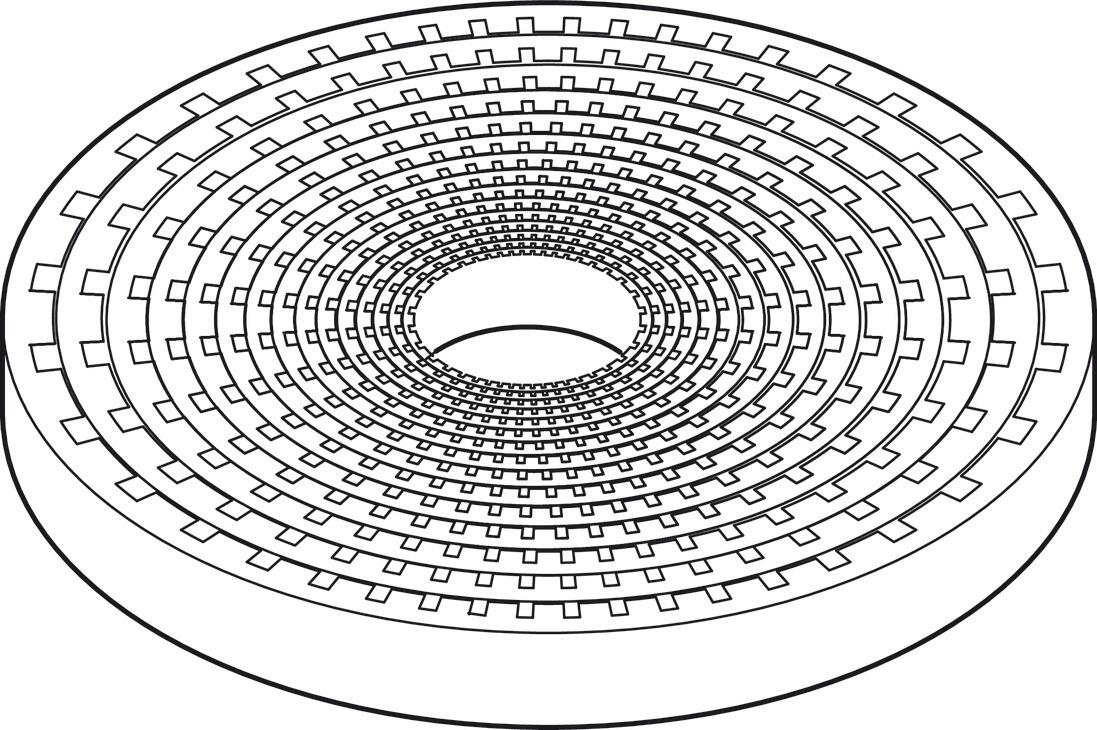

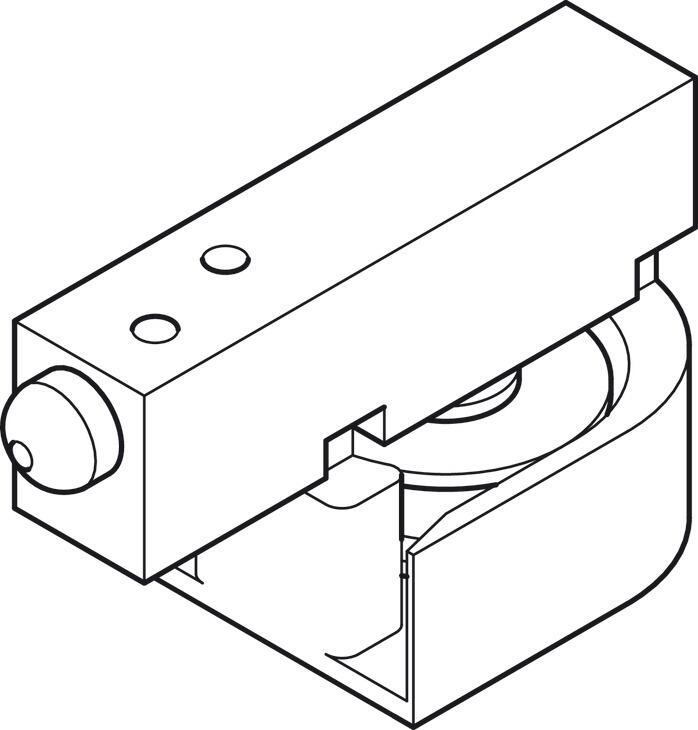

    Set consists of 2 x Guide roller, track mounted with rubber stopper, 2 x Clamp, for fastening the toothed belt, 1 x 10 m length of Toothed belt, transparent polyurethane with metal insert, black, fibre-glass reinforced
