Product code: 940.80.111

£0.00
£501.94
(
£418.28
ex VAT)
View video
Earn5019
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Hawa Junior 80/Z FitSet w SoftMove 1Dr (Pack Qty: 1 Set)

QuantityPrice (inc VAT)
5 - 9£478.01
10 +£424.90
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Junior 80 is a vertically adjustable sliding door fitting for interior doors exceptionally light and silent action
    All parts of corrosion resistant
    Ideal for cavity applications
    Suitable for Hawa-Symmetric 80/Hawa-Telescopic 80 2/ Hawa-Telescopic 80 3

    Model series:-Junior 80/Z

    Model:-Junior 80/Z

    For door weight:-≤80 kg

    For door width:-≤3,000 mm

    For door material:-Wood

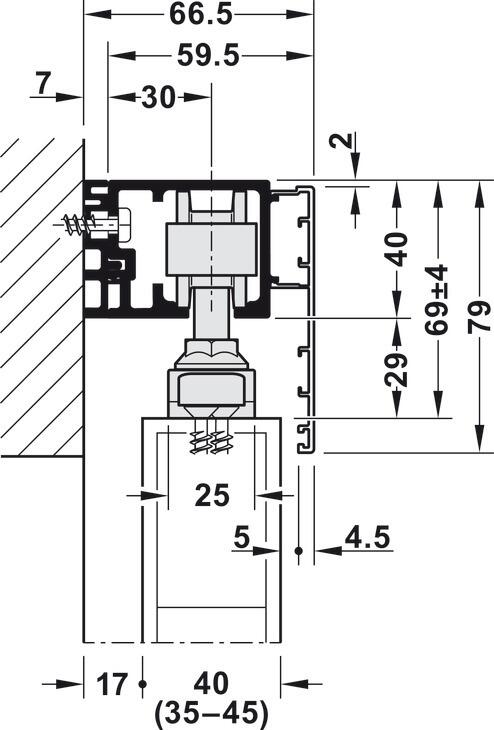

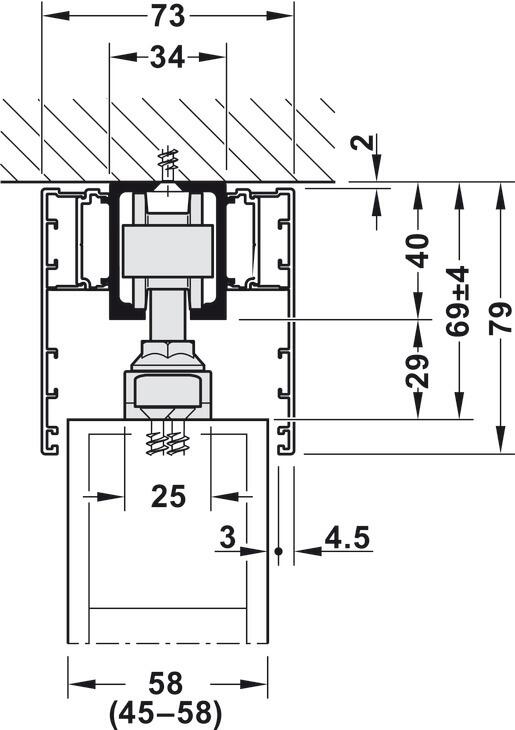

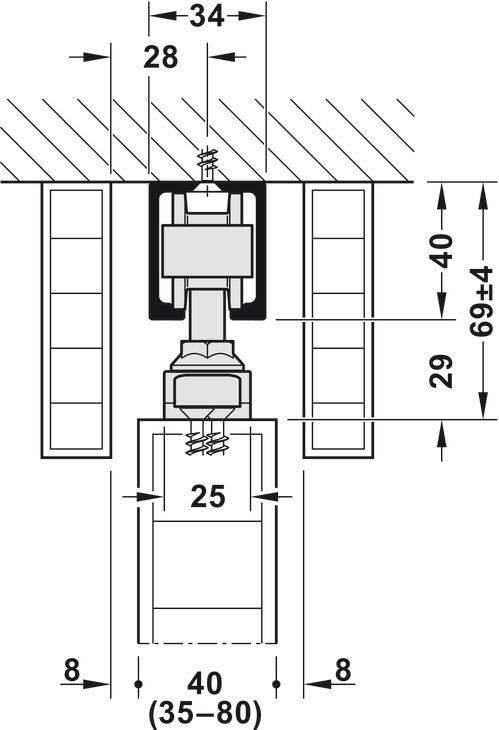

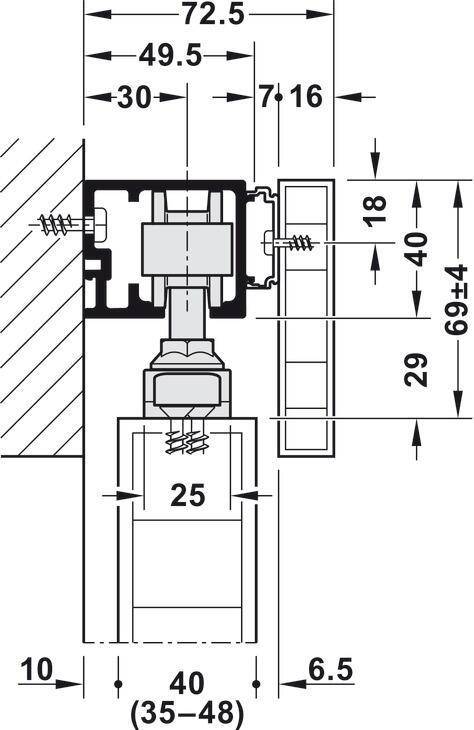

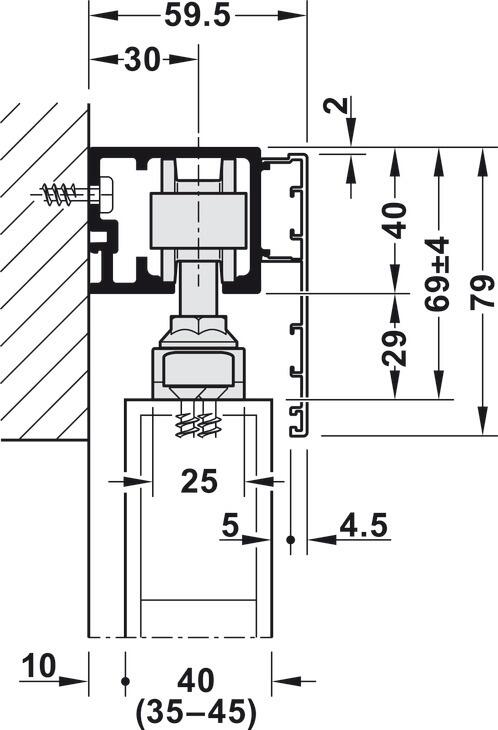

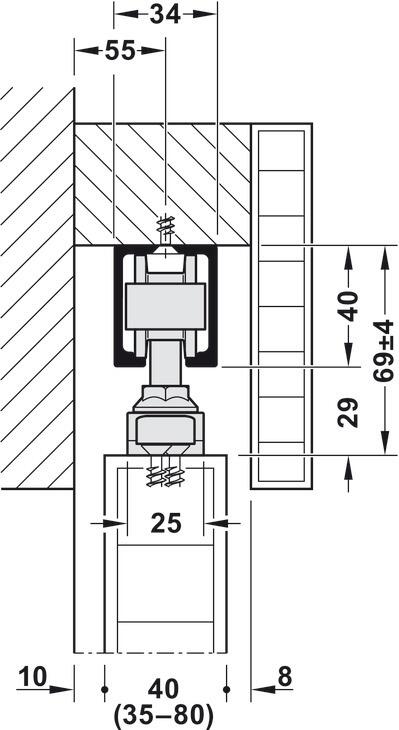

    Mounting type:-Ceiling installation, Wall mounting, Wall pocket solution

    For door thickness:-35 – 80 mm

    Number of door leaves per set:-1.00

    Area of application:-Interior doors

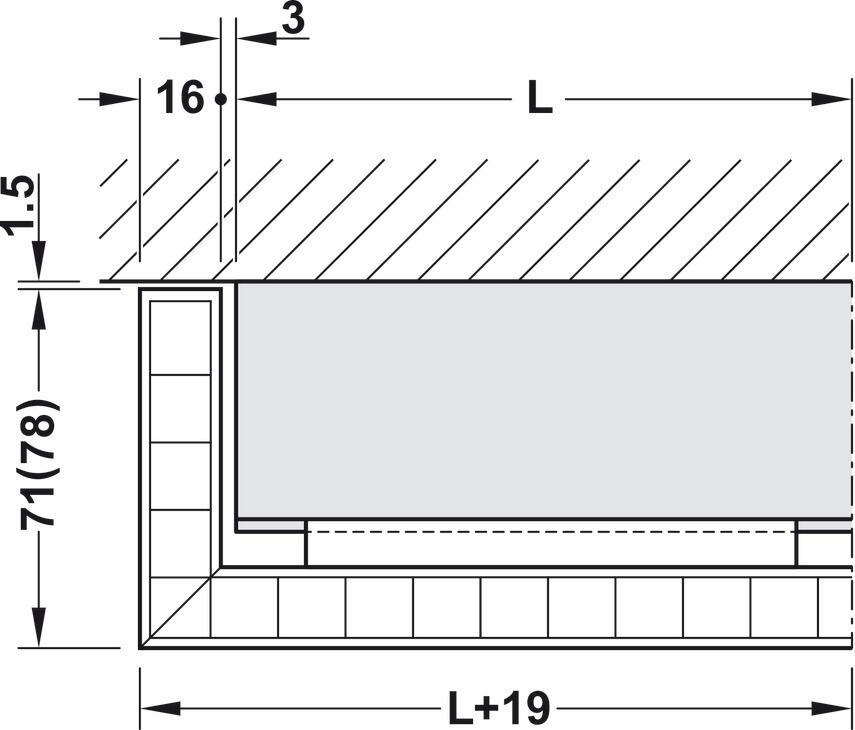

    Note on door width:-The max. door width for the pocket door solution is 1,500 mm.

    For door height:-≤4,000 mm

    Running position:-Top

    Installation:-Suspension with screwed on two-way suspension

    Installation note:-Installation and removal of the door possible from the door surface or door edge

    Door processing:-For screw fixing

    Standard;-Certified in compliance with EN 1527:2013

    Classification in compliance with EN 1527:-p-|6|2|-|1|0|-|1|3

    Number of door wings in a system max.:-1 to 2

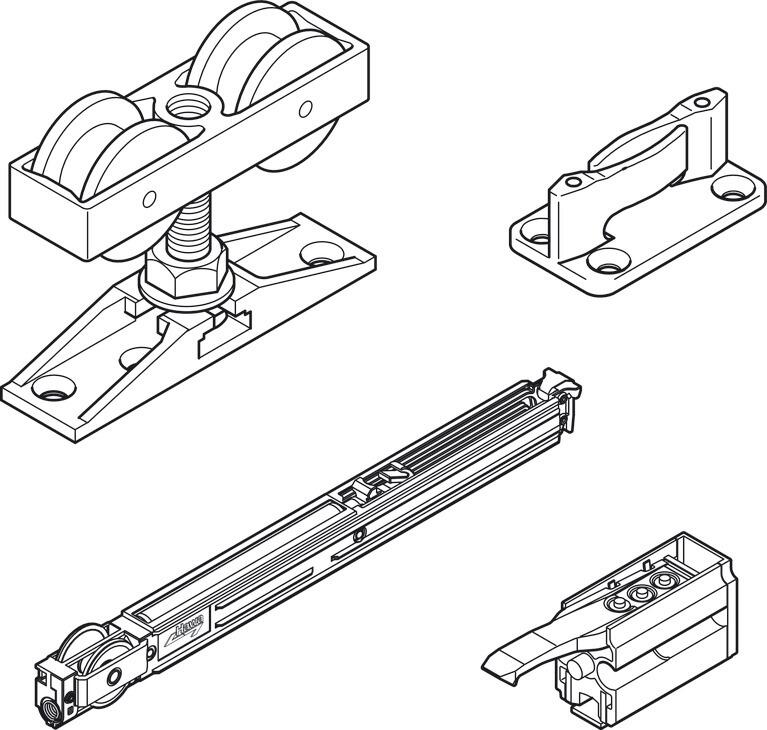

    Supplied with



    2x Track stopper, for adjustable mounting in top track, zinc alloy

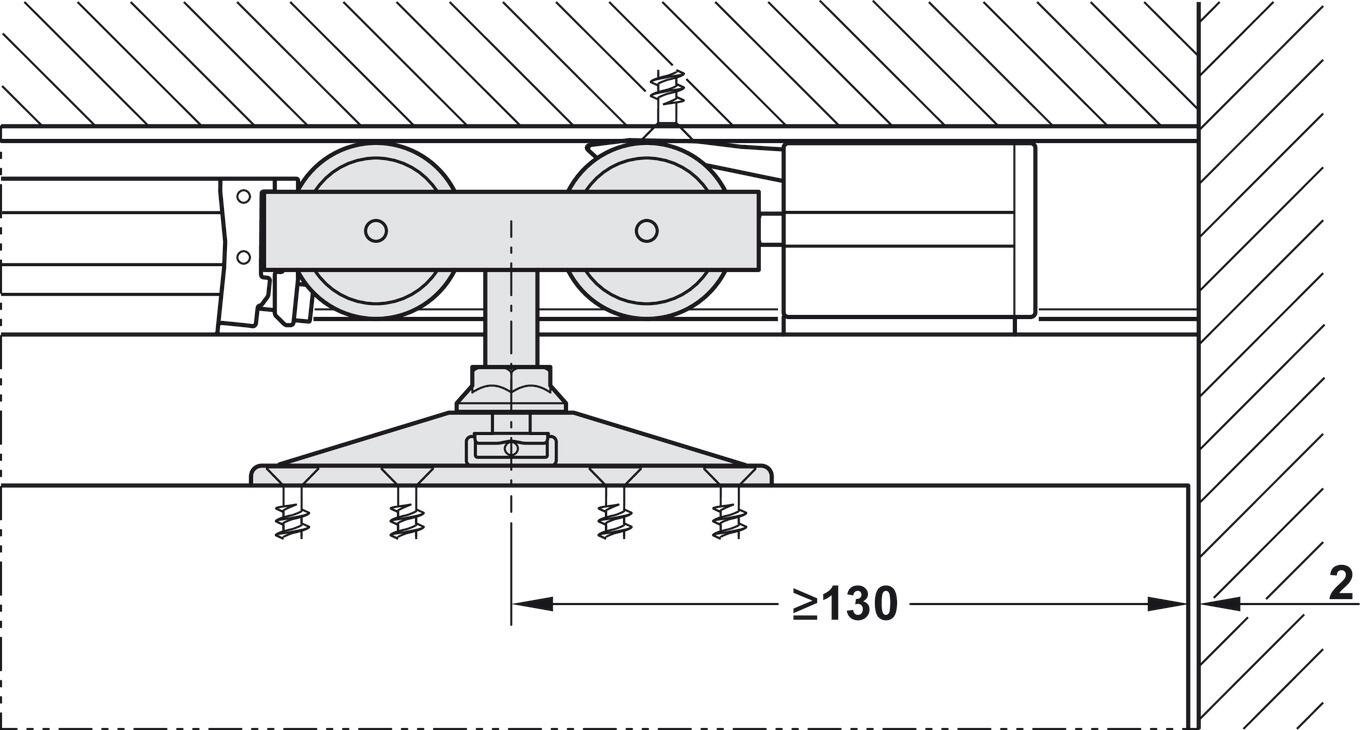

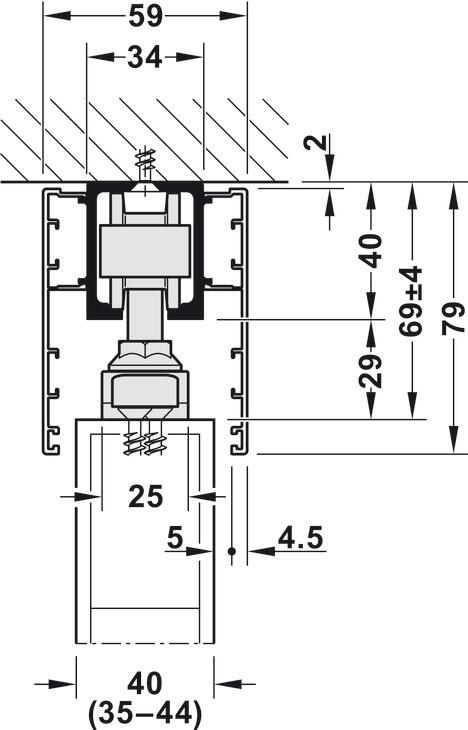

    2x HAWA-Junior 80/Z trolley hanger, sleeve bearing mounted Ø 34 mm high-grade polyamide tandem rollers, aluminium carriage, fixings included

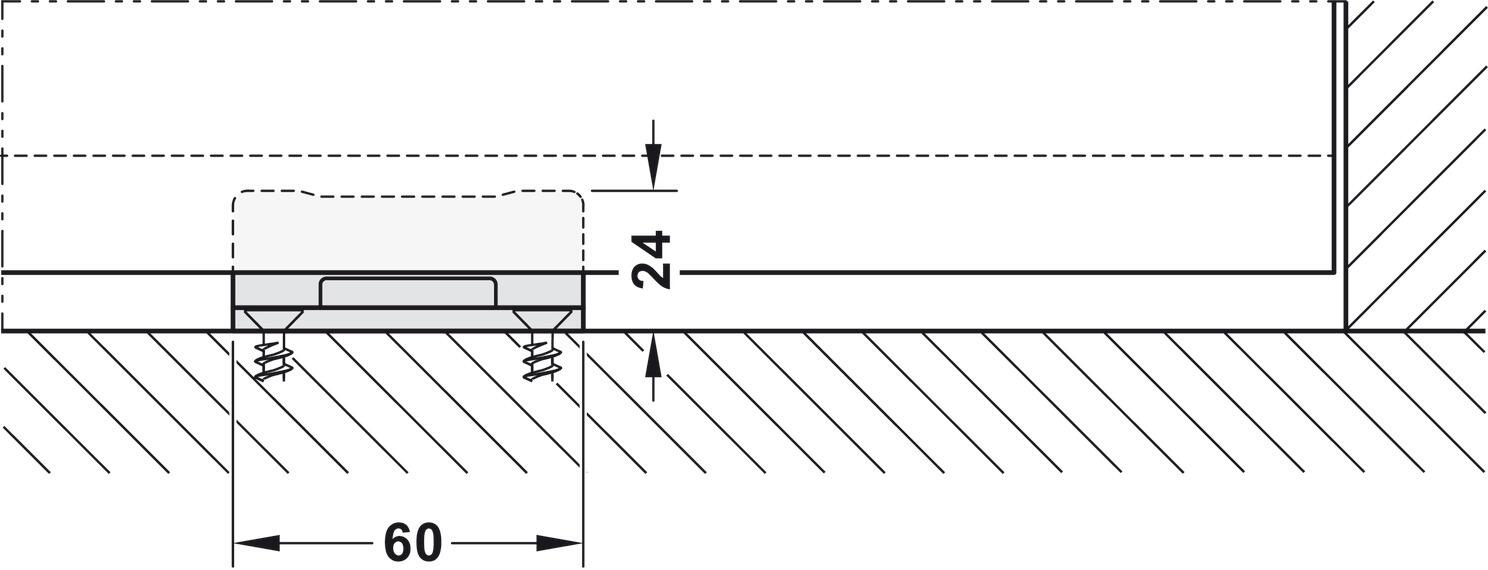

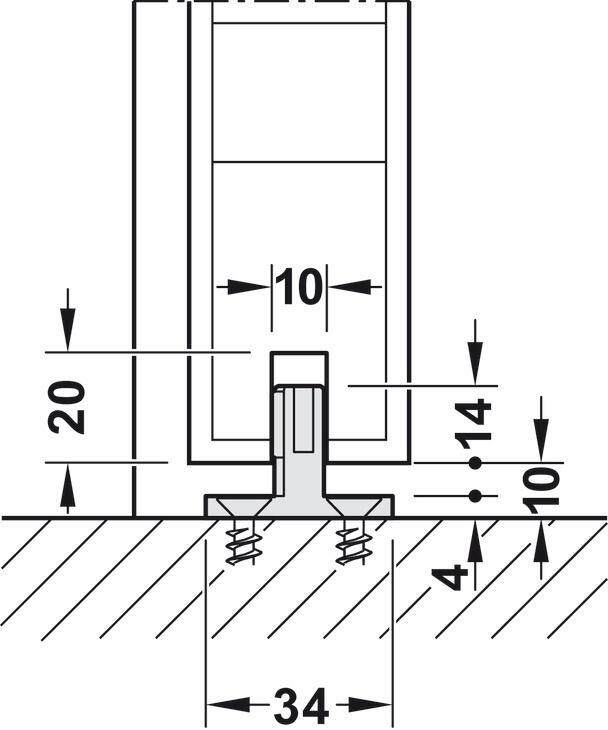

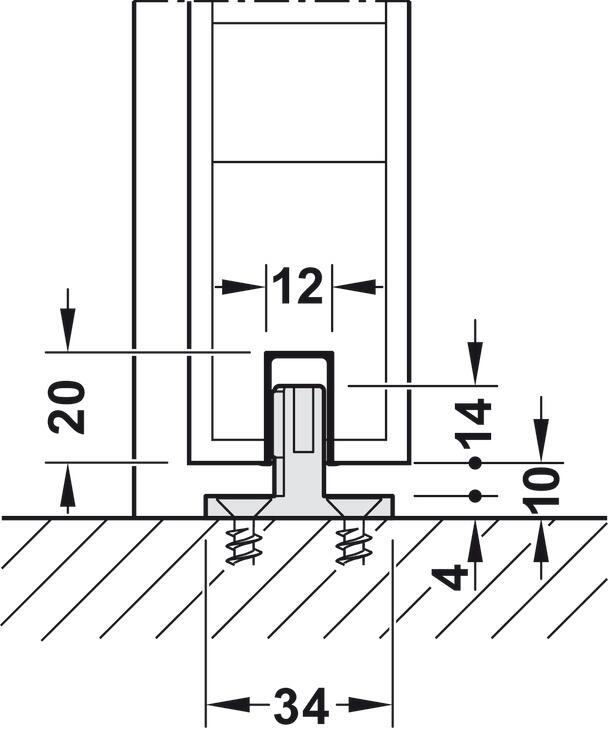

    1x Guide, rattle proof, for screw mounting to floor, black plastic, 24 x 60 x 34 mm
    1x HAWA-SoftMove 80, 30 x 336 x 24 mm



    Trolley hanger (2 pcs)

    - Sleeve bearing, high-grade, polyamide tandem rollers. Retainer profile with suspension plate. M10 hanger pendant and tension bolt. Complete with fastening materials

    Track stopper (1 pc/2 pcs with 940.80.112)

    - For adjustable mounting in top track, zinc alloy

    Guide (1 pc)

    - Rattle proof. For screw mounting to floor. Black plastic

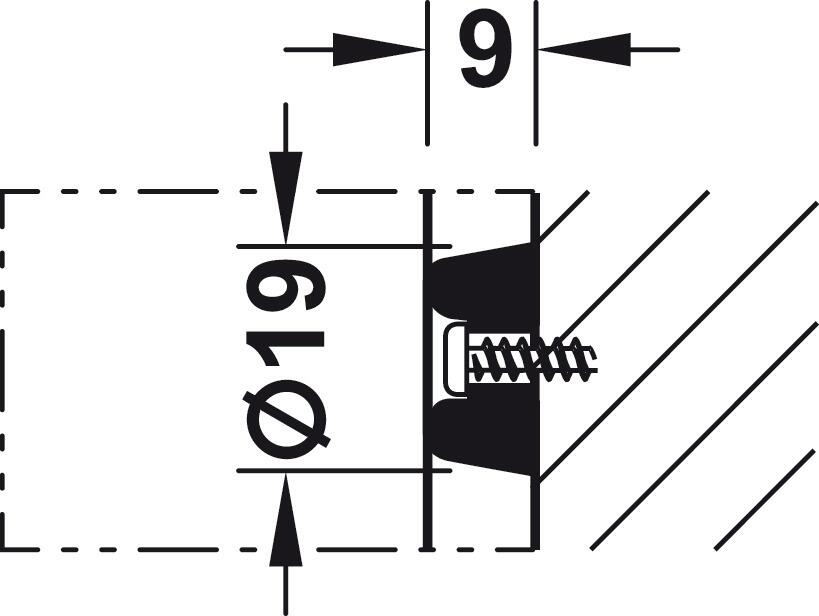

    Rubber buffer (1 pc)

    - Screw fixing

    SoftMove (1 pc included with Junior 80 set Cat. No. 940.80.112)

    - White plastic body with diameter: 14 mm hydraulic metal damper

    Number of SoftMove fittings required is dependant on door width:

    For one sided dampening:

    Min. door width 690 mm

    For two sided dampening:

    Min. door width 1030 mm

    Required products - Tracks, fitting sets, accessories and fixings to be ordered separately- see in related products
    Hospa 4.0mm gauge pan head and 4.5mm gauge countersunk screws to be ordered separately

    SoftMove can be ordered separately

    - Important mounting note: If the sliding door is required to stop at both ends, we recommend installing an additional track stopper, please see Replacement Parts
