Product code: 940.80.015

£0.00
£239.53
(
£199.61
ex VAT)
View video
Earn2395
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

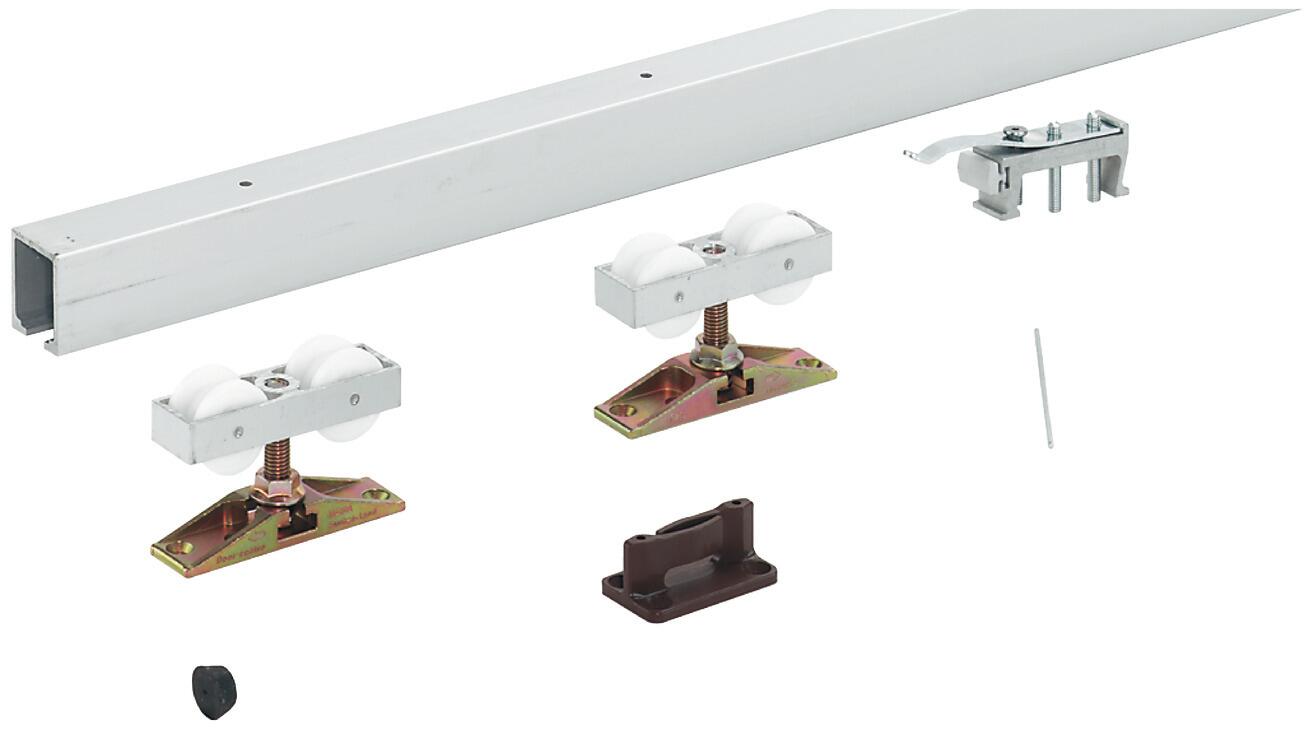

    Junior 80 is a vertically adjustable sliding door fitting for interior doors exceptionally light and silent action
    All parts of corrosion resistant
    Ideal for cavity applications
    Suitable for Hawa-Symmetric 80/Hawa-Telescopic 80 2/ Hawa-Telescopic 80 3

    Model series

    Junior 80/Z

    Model

    Junior 80/Z

    For door weight

    ≤80 kg

    For door width

    ≤3,000 mm

    For door material

    Wood

    Mounting type

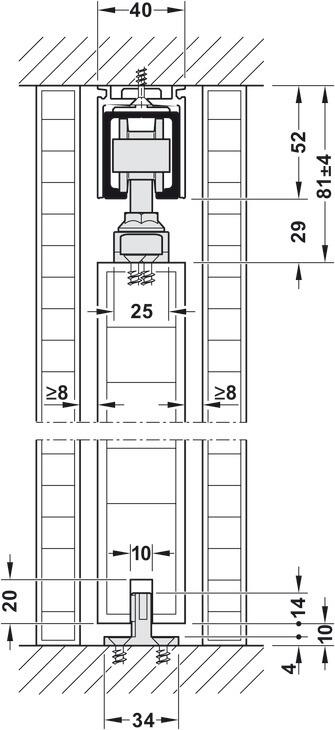

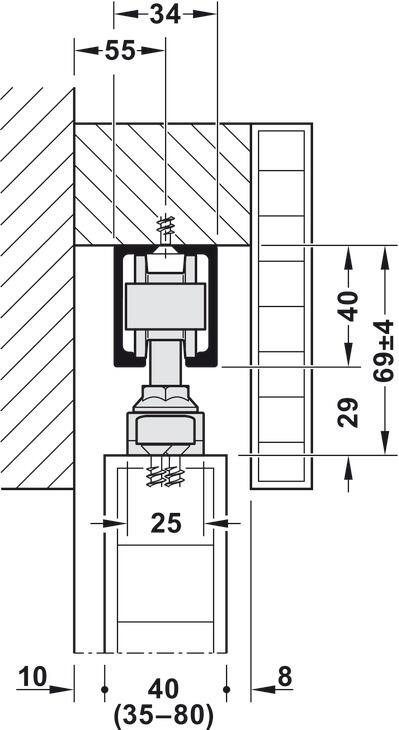

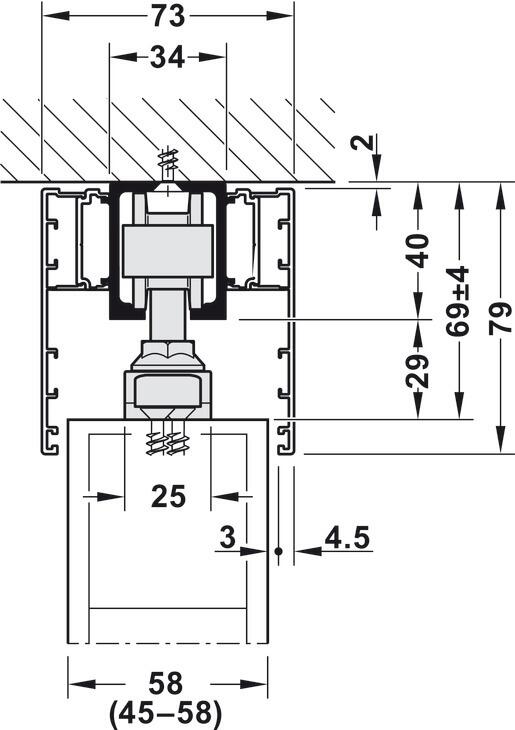

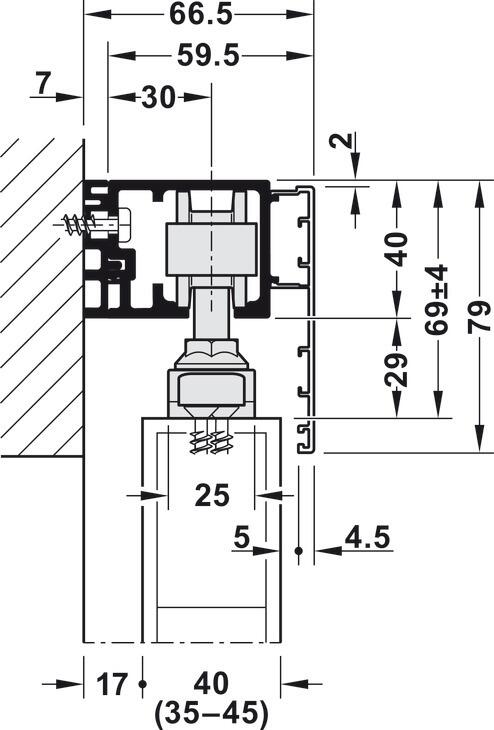

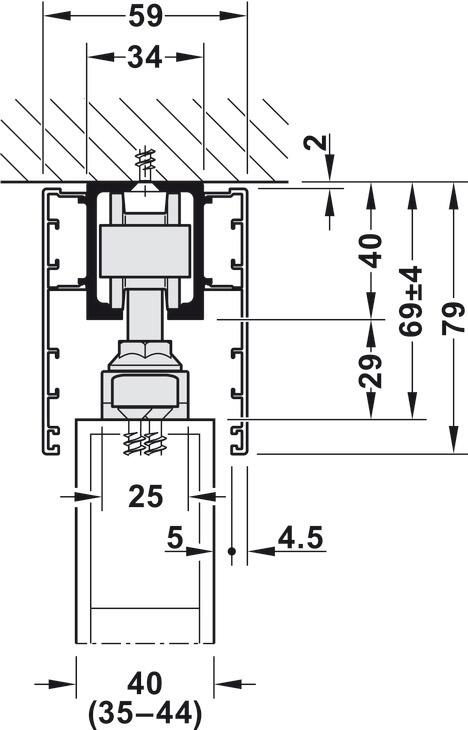

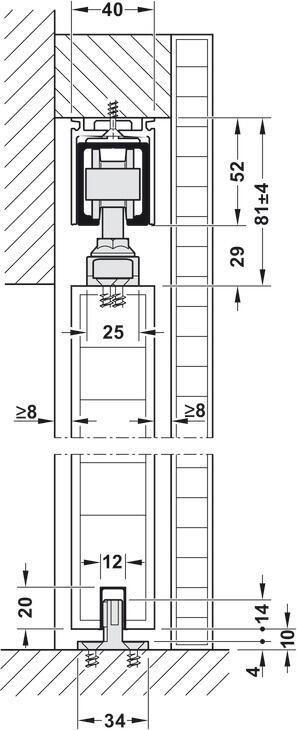

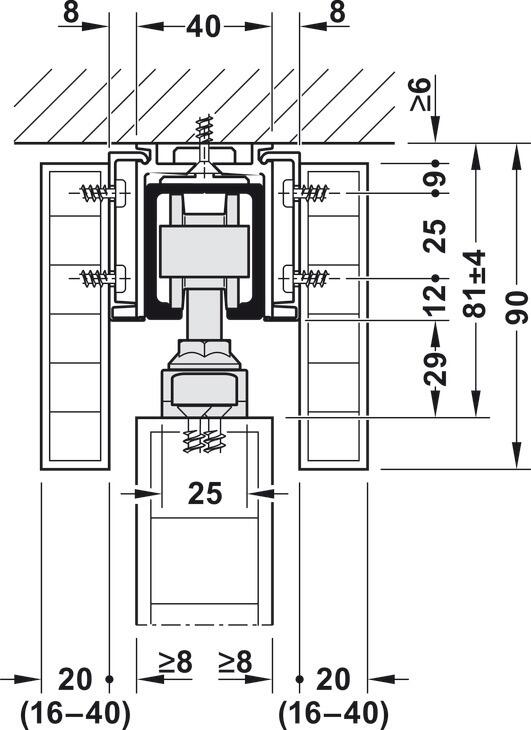

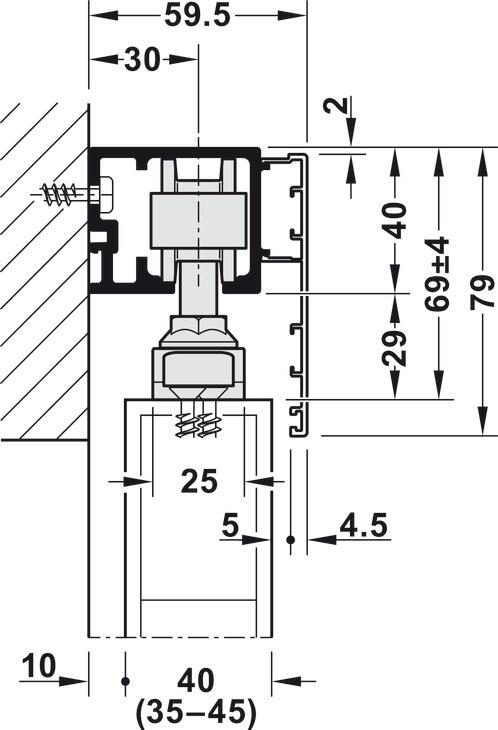

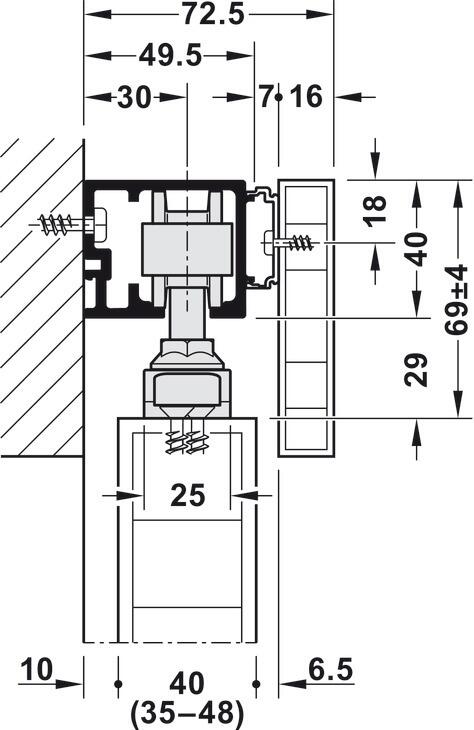

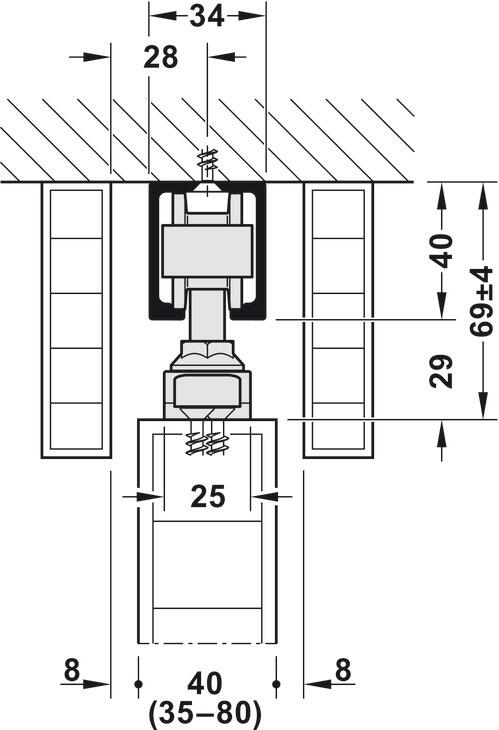

    Ceiling installation, Wall mounting, Wall pocket solution

    For door thickness

    35 – 80 mm

    Number of door leaves per set

    1.00

    Area of application

    Interior low headroom doors

    Note on door width

    The max. door width for the pocket door solution is 1,500 mm.

    For door height

    ≤4,000 mm

    Running position

    Top

    Installation

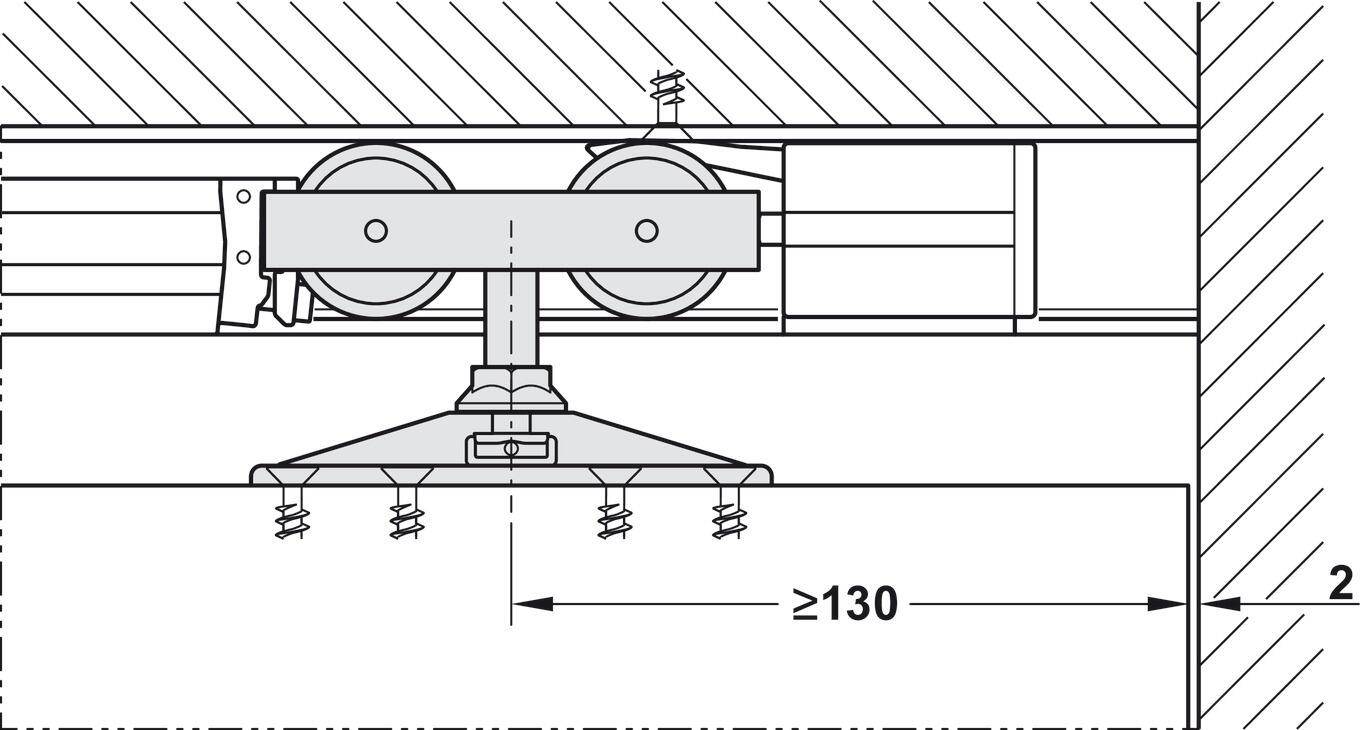

    Suspension with screwed on two-way suspension

    Installation note

    Installation and removal of the door possible from the door surface or door edge

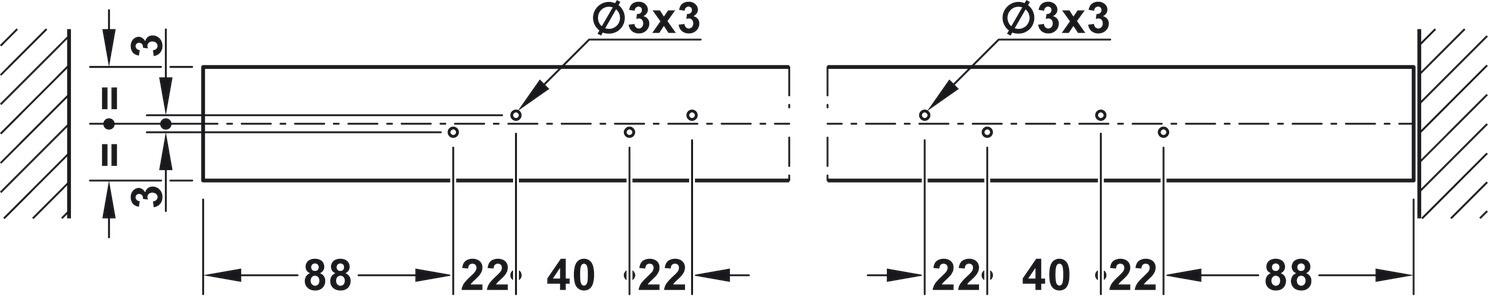

    Door processing

    For screw fixing

    Standard

    Certified in compliance with EN 1527:2013

    Classification in compliance with EN 1527

    -|6|2|-|1|0|-|1|3

    Number of door wings in a system max.

    1 to 2

    Order reference

    Tracks, fitting sets, accessories and fixings to be ordered separately
    Hospa  4.0mm diameter pan head and 4.5mm guage countersunk screws to be ordered separately
