PRODUCT DETAILS

Junior 80/B is a vertically adjustable low headroom sliding door fitting
Ideal for pocket door solutions
Easier installation due to a clever new suspension mechanism - click and clear

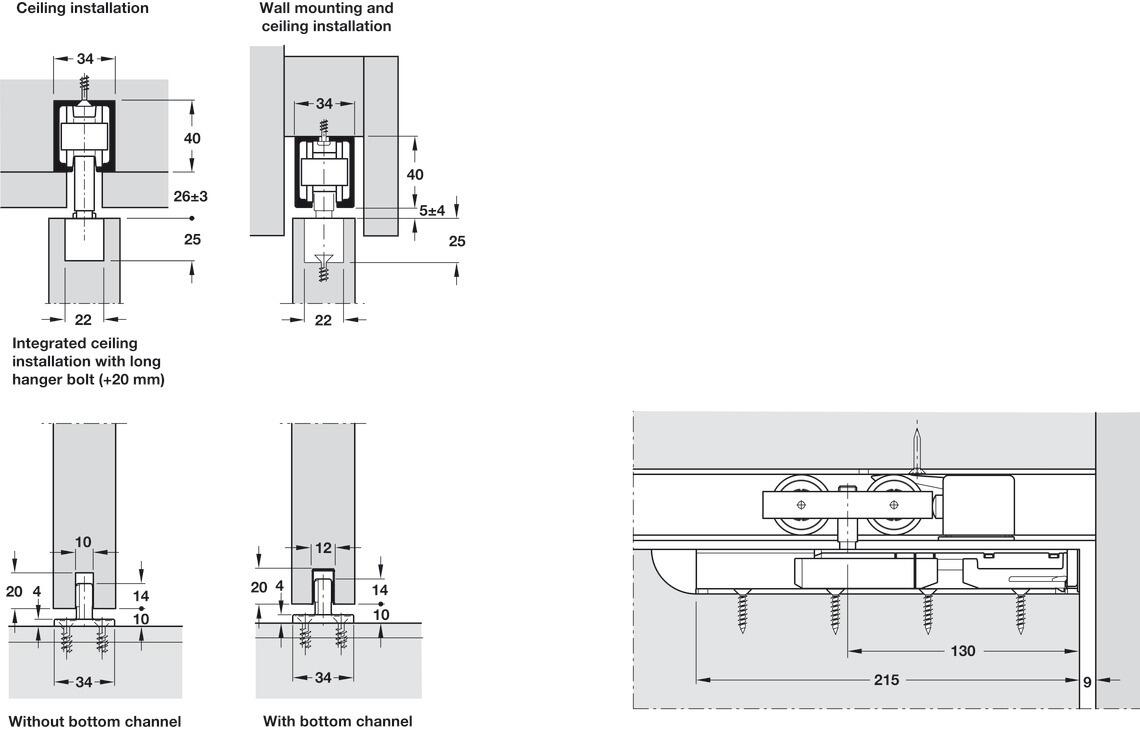

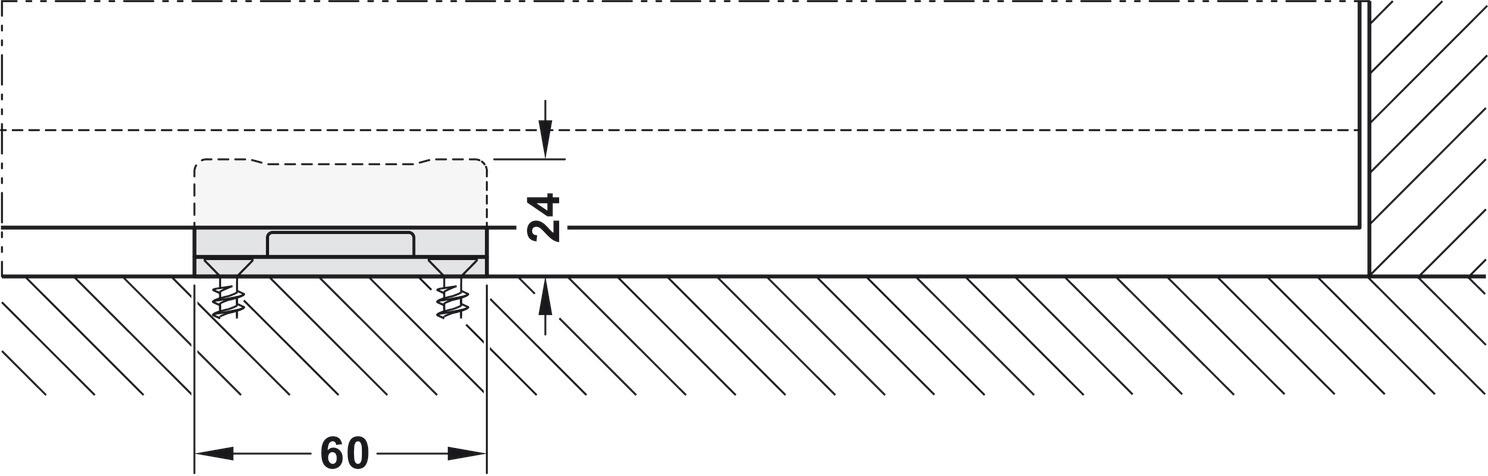

• Installation drawing reference 24484
  This version of HAWA-Junior 80/B, compared to the standard HAWA-Junior 80/B has been modified with enhanced features
  Low headroom applications: Around 1 mm gap between lower side of top track and top side of sliding door is now possible for a more pleasing appearance
  Height can easily be adjusted from the leading edge without needing to remove the suspension unit
  Very easy and efficient installation due to pre-fitted hanger bolt, integrated wedge mechanism and cover cap

• Number of door wings in a system max.;-1 to 2

  Number of door leaves per set:-1.00

  For door material;-Wood

  Model:-Junior 80/B

  Soft closing mechanism:-Without soft and self closing mechanism, With track buffers on both sides

  For door weight:-≤80 kg

  For door width:-≤3,000 mm

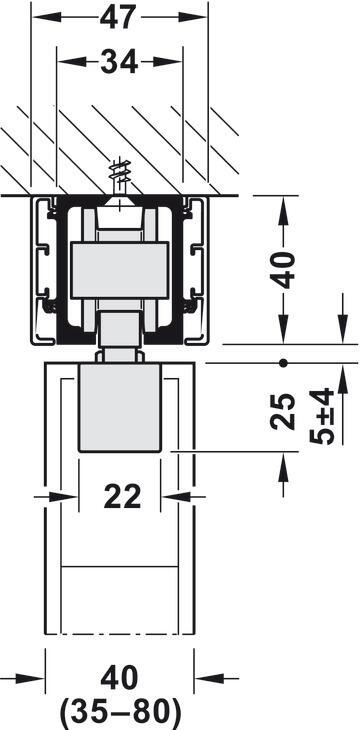

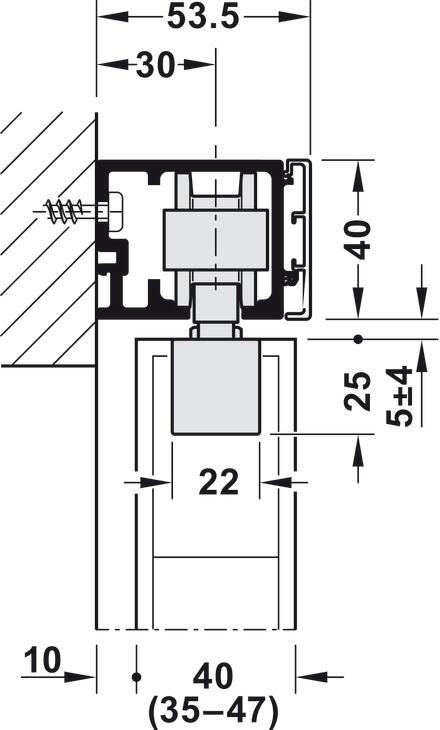

  Mounting type:-Ceiling installation, Wall mounting, Integrated ceiling installation

  For door thickness:-35 – 80 mm

  Adjustment facility:-Height adjustment ±3 mm, Height adjustment ±7 mm (coarse adjustment ±3 mm; fine adjustment ±4 mm)

  Area of application:-For 1 doors

  Suitable for:-Minimum installation height

  For door height:-≤4,000 mm

  Running position:-Top

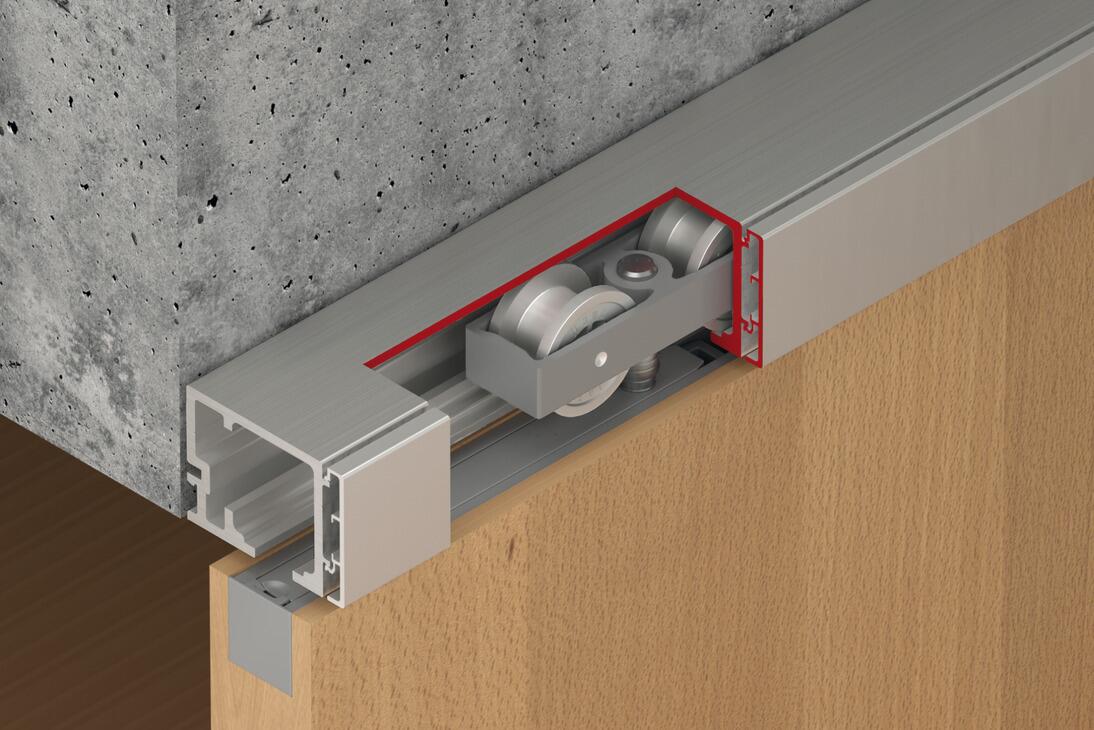

  Installation:-Suspension with recessed support profile and installation-friendly suspension carriage with integrated metal cover cap

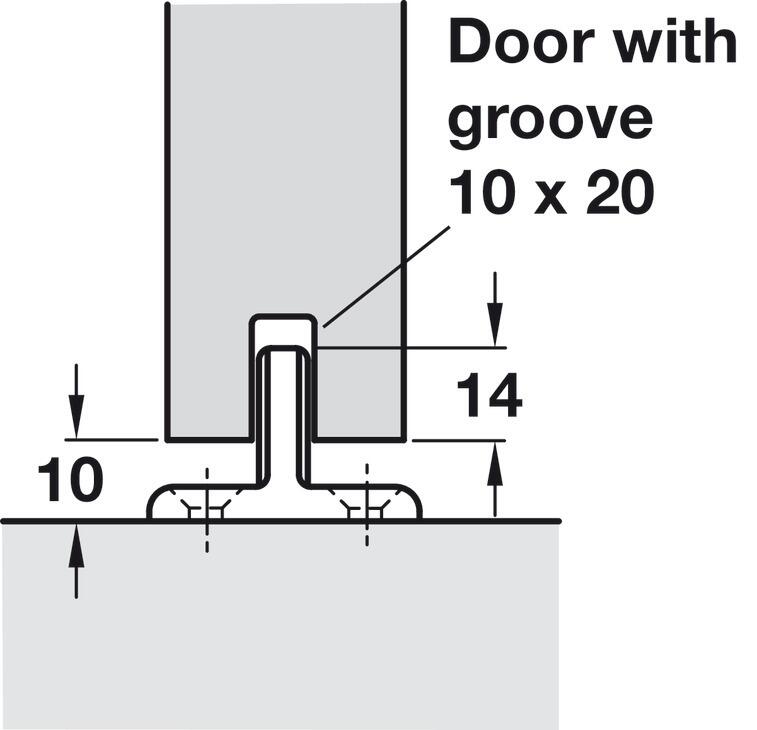

  Door processing:-With recess

  Standard:-Certified in compliance with EN 1527:2013

  Classification in compliance with EN 1527:--|6|2|-|1|0|-|1|3

  Order reference

  Tracks, soft and self close mechanisms, accessories and fixings to be ordered separately

• Installation instructions
