Fitting Set For Hawa-Junior 40/Z Sliding Door Systems - Hafele

Fitting Set For Hawa-Junior 40/Z Sliding Door Systems - Hafele

Product code: 940.41.016

£0.00
£211.35
(
£176.13
ex VAT)
Earn2114
reward points
Available On Back Order

Bulk Buy Discounts for:

HAWA-Junior 40/Z fitting set for 1 door

QuantityPrice (inc VAT)
2 - 3£201.28
4 +£178.91
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    The HAWA-Junior 40 is a vertically adjustable sliding door fitting for light to medium weight interior doors up to 40kg, for top quality joinery and partitioning. Soft close is optional (please order SoftMove 40 separately), and can be retrofitted.

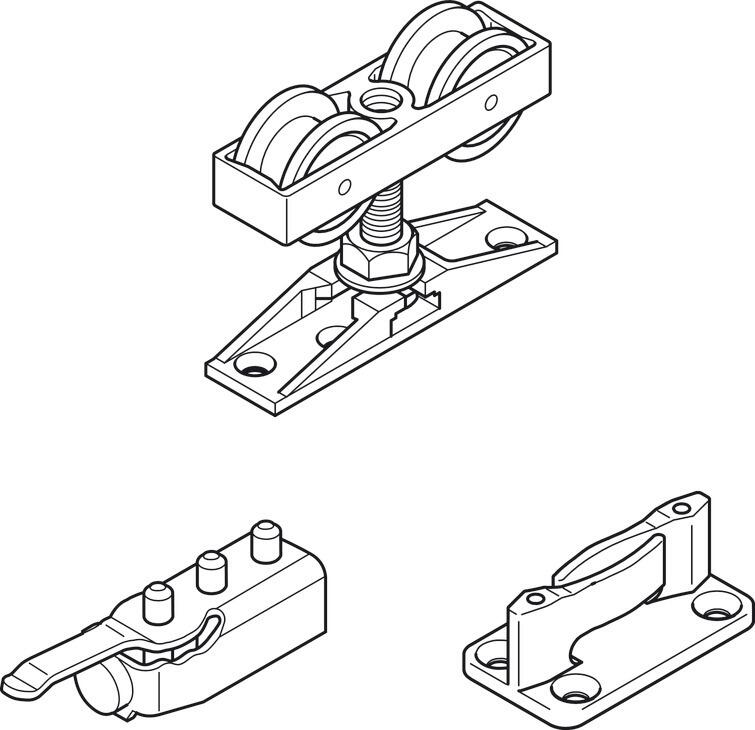

    Fitting set includes:

    2x Running gears
    2x Two-way suspension fittings with hanger bolts and nut, M8

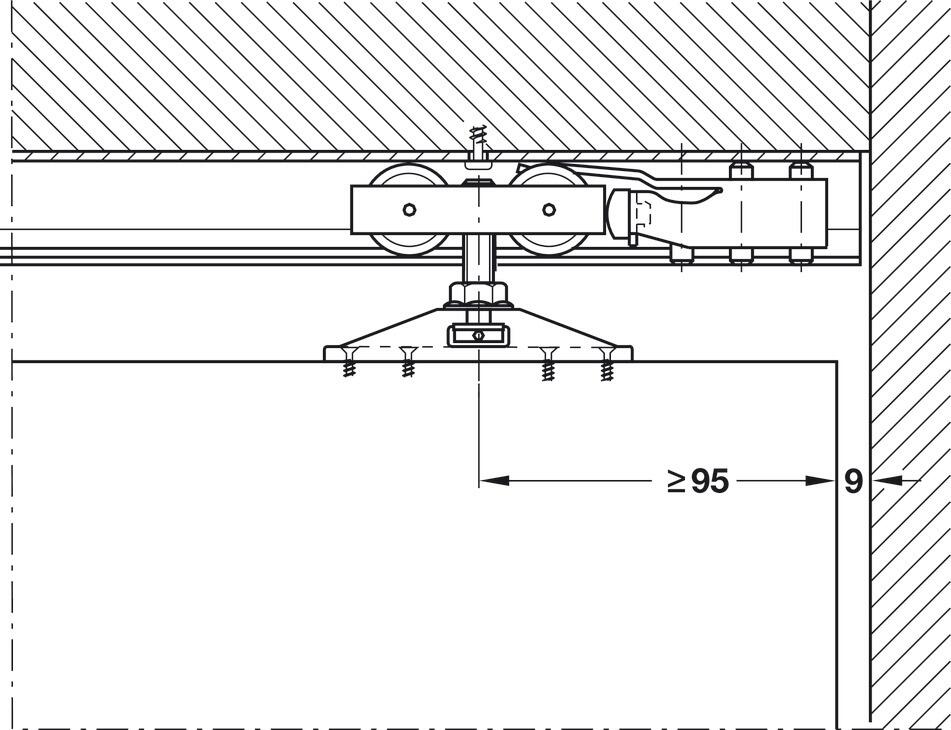

    2x Track buffers with retaining spring

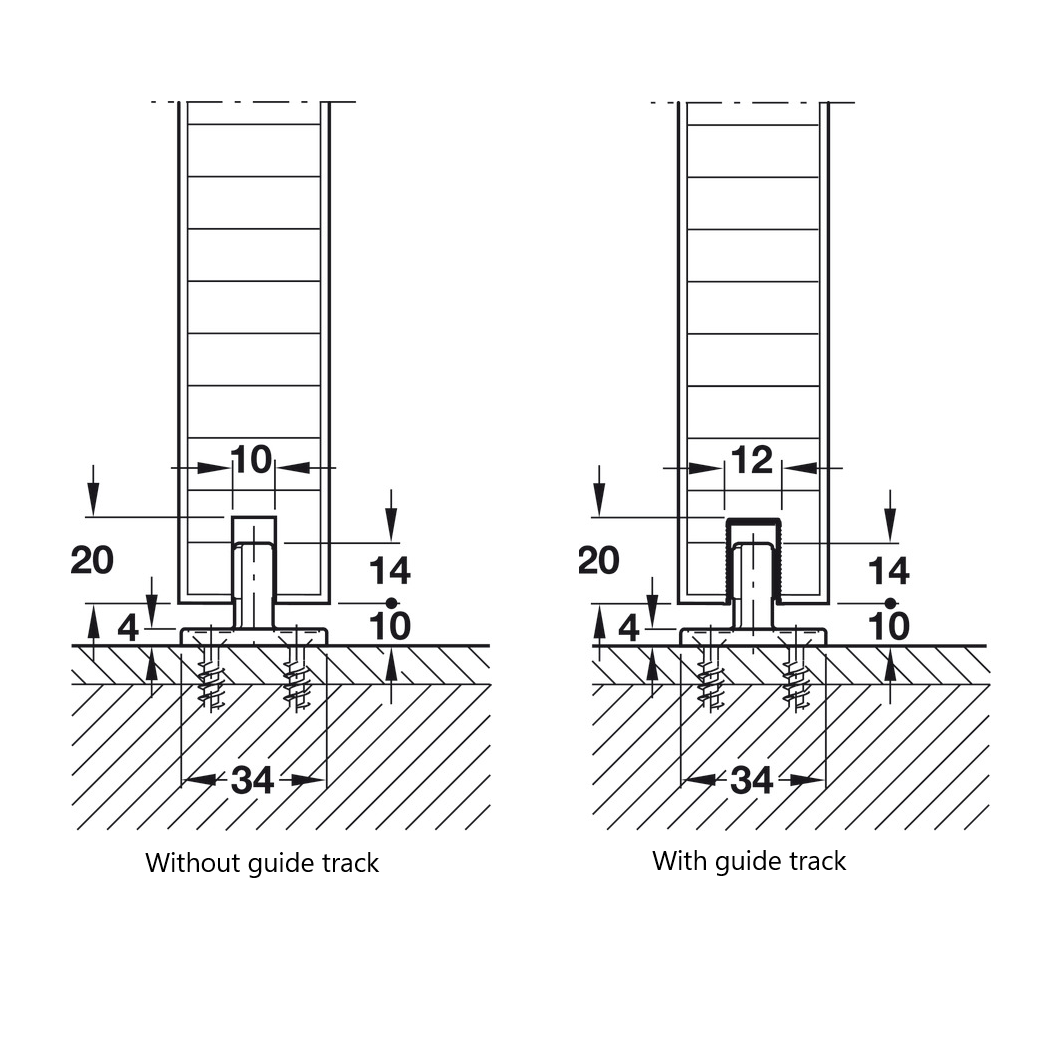

    1x Floor guide with zero clearance
    1x Height adjusting pin

  • More Information
    • For interior doors
    • Suitable for Hawa-Telescopic 40/4
    • If the sliding door is required to stop at both ends we recommend installing an additional track stopper
    • Screw and clip fixing
    • Number of door wings in a system max: 1 to 2
    • For wooden doors
    • For door weight <40 kg
      For door width <3,000 mm
    • For door height <4,000 mm
    • Ceiling or wall mounting
    • For door thickness 35 – 80 mm

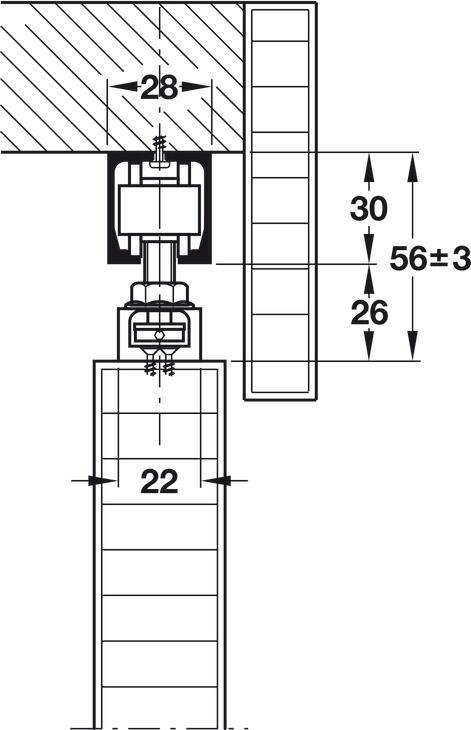

    • Height adjustment: +-3 mm, track buffer with adjustable retaining spring
    • Suspension with screwed on two-way suspension
    • Certified in compliance with EN 1527:2013
    • Classification in compliance with EN 1527 -|6|1|-|1|0|-|1|3
    • Tracks and accessories to be ordered separately
    • 4.0 mm diameter pan head and 4.5 mm diameter countersunk screws to be ordered separately
    • Supplied with
      2x Running gears
      2x Two-way suspension fittings with hanger bolts and nut, M8
      2x Track buffers with retaining spring
      1x Floor guide with zero clearance
      1x Height adjusting pin
