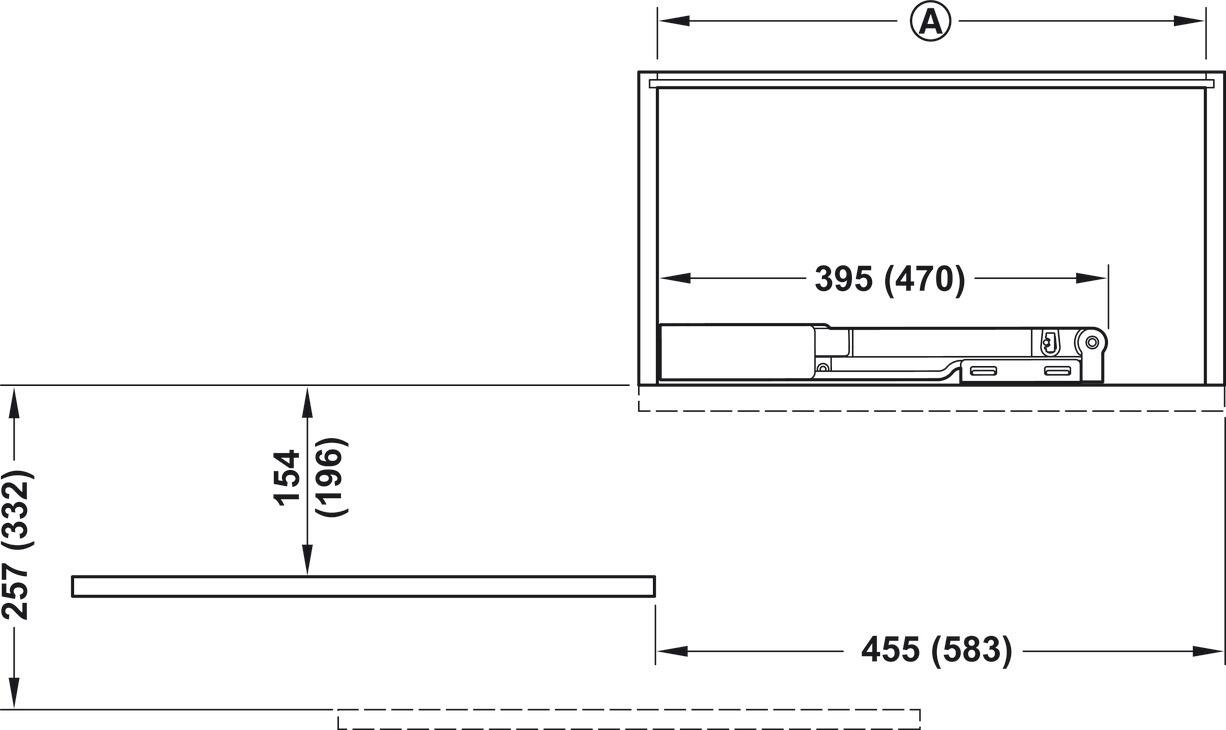

Door Opening Mechanism, Min. Cabinet Width 398-475 Mm, For Door Width 450-600 Mm - Hafele

Door Opening Mechanism, Min. Cabinet Width 398-475 Mm, For Door Width 450-600 Mm - Hafele

Product code: 407.32.906

£0.00
£320.53
(
£267.11
ex VAT)
Earn3205
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

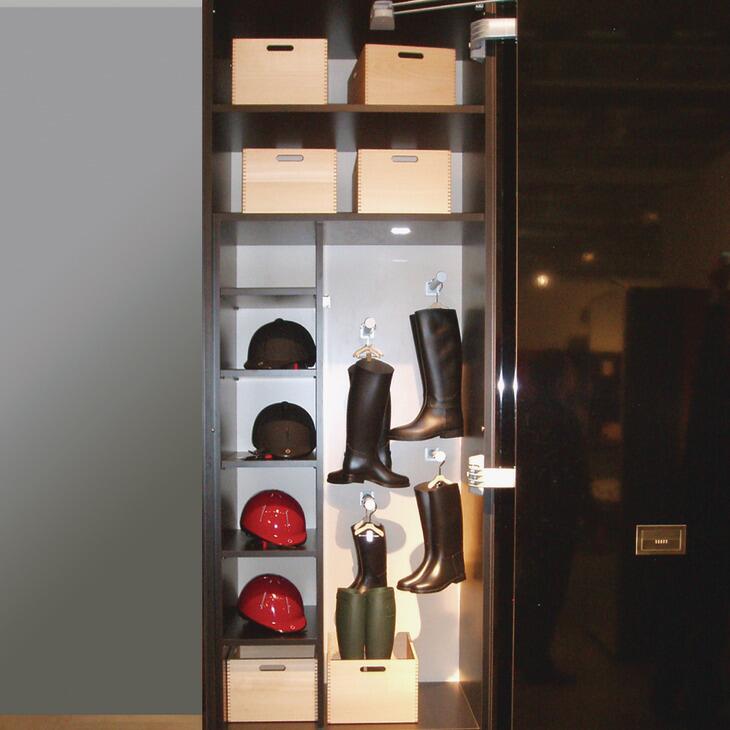

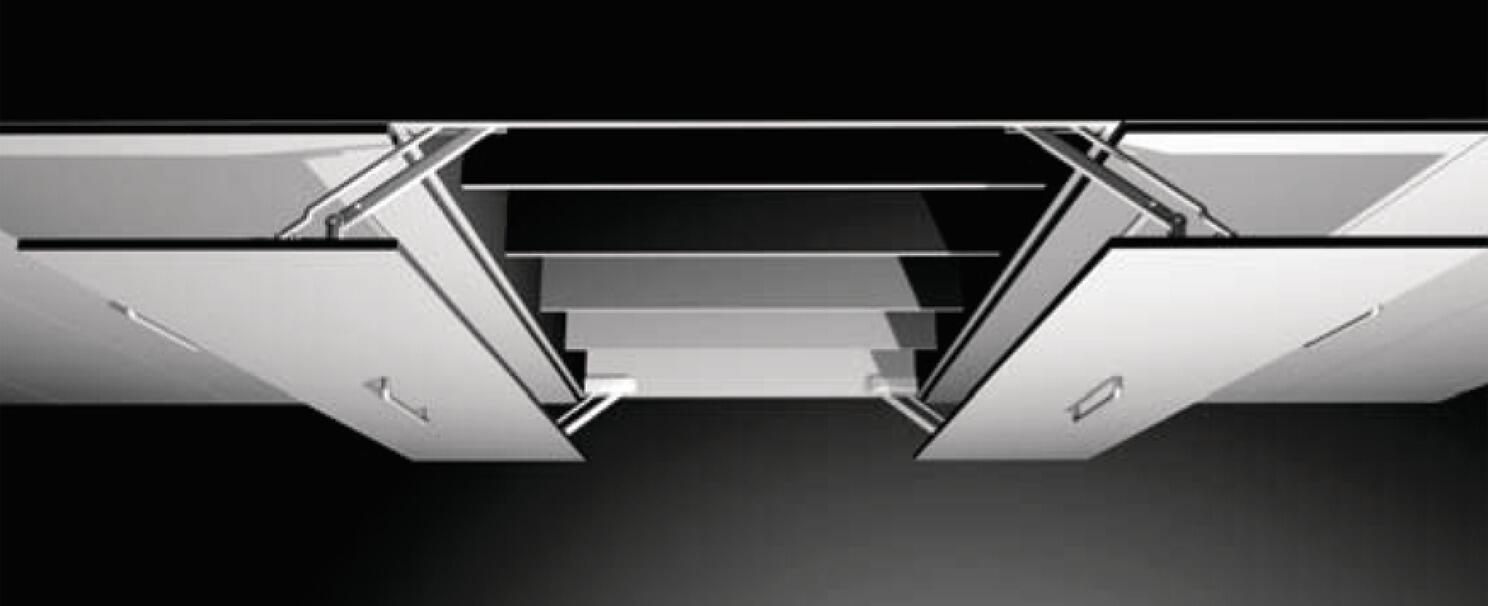

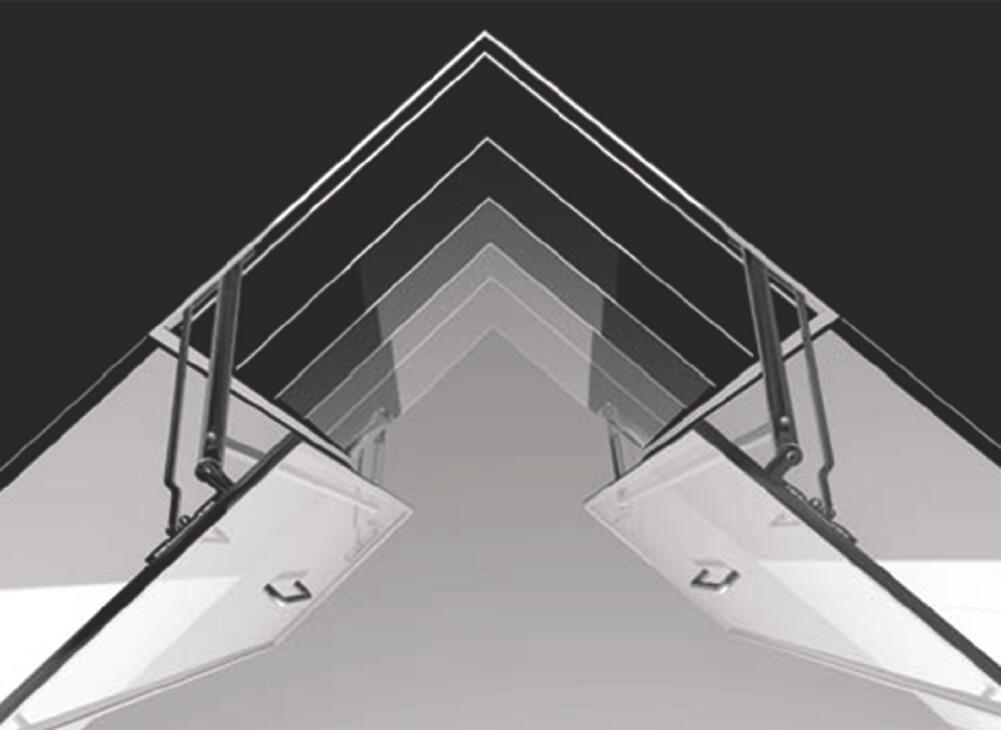

    Moves doors forward and away to the side, allowing maximum access to the cabinet
    Soft closing
    Maximum door weight 16 kg
    No hinges needed

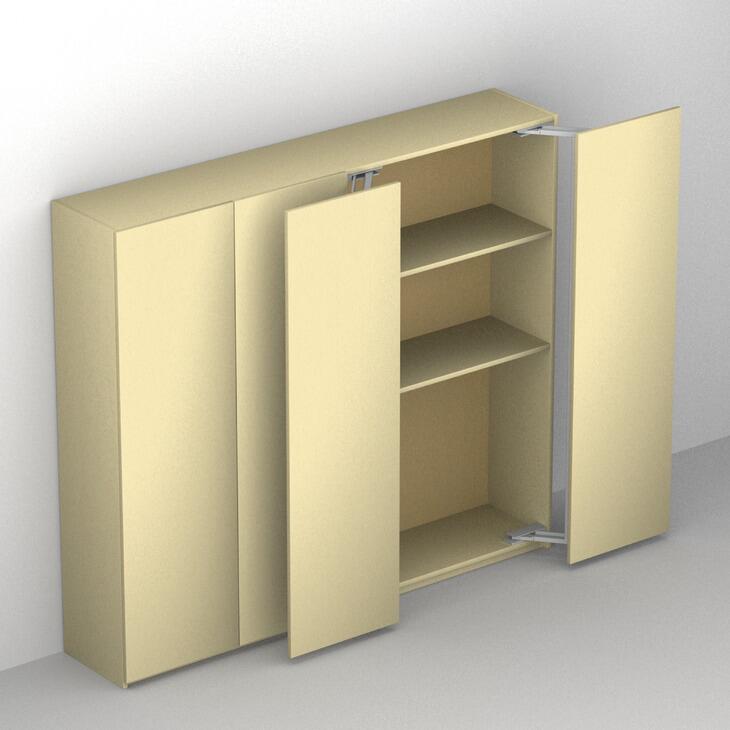

    Can be used for single doors, double doors, wooden doors and glass doors with frames
    Can be used for every type of furniture
    Connecting bar and centre hinge to be ordered separately

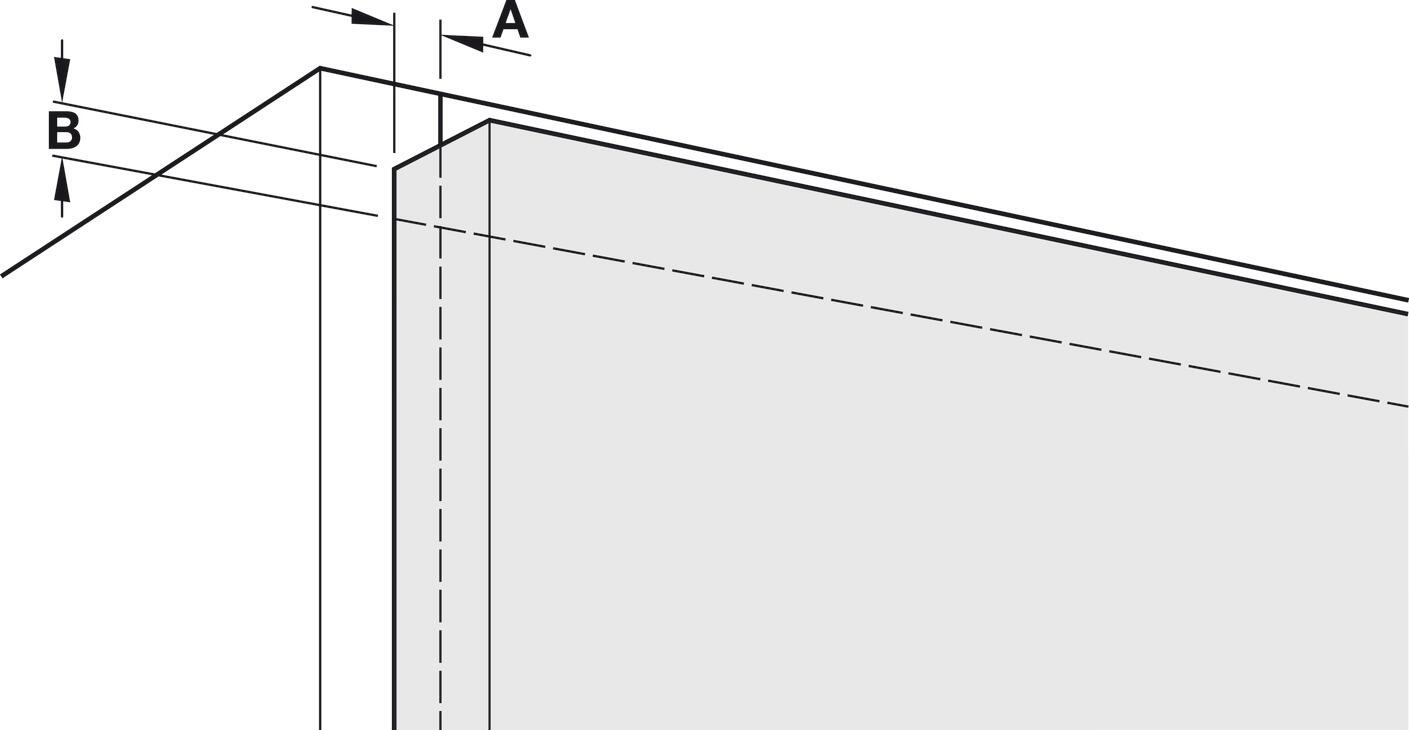

    0-door offset for use with internal pull outs or extending trays
    +4 mm adjustment vertically
    ±2 mm adjustment horizontally
    ±4 mm adjustment tilting angle adjustment

    Order reference

    Connecting bar and centre hinge to be ordered separately- see in related products

    Supplied with

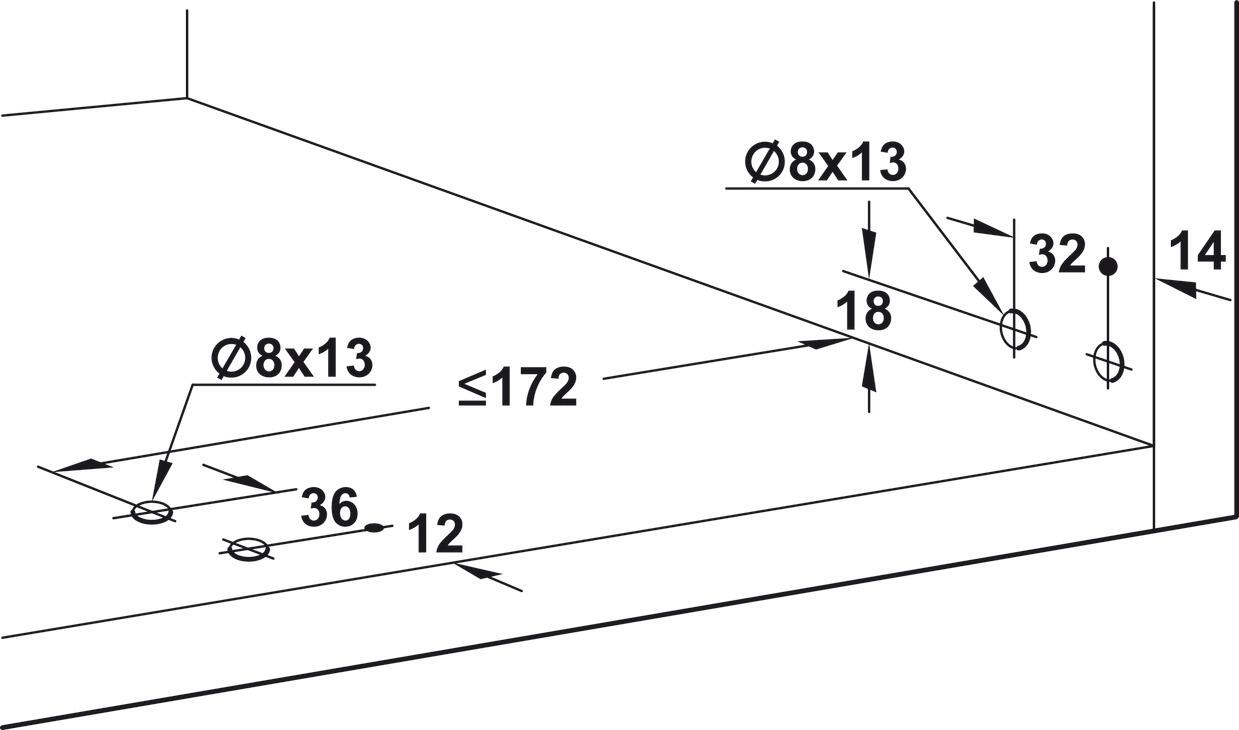

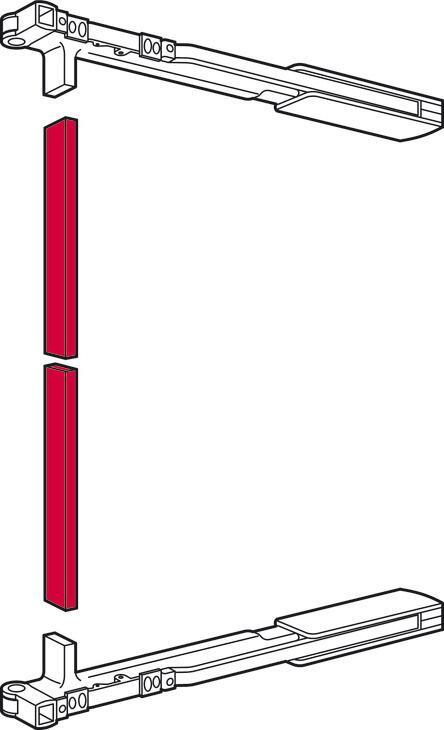

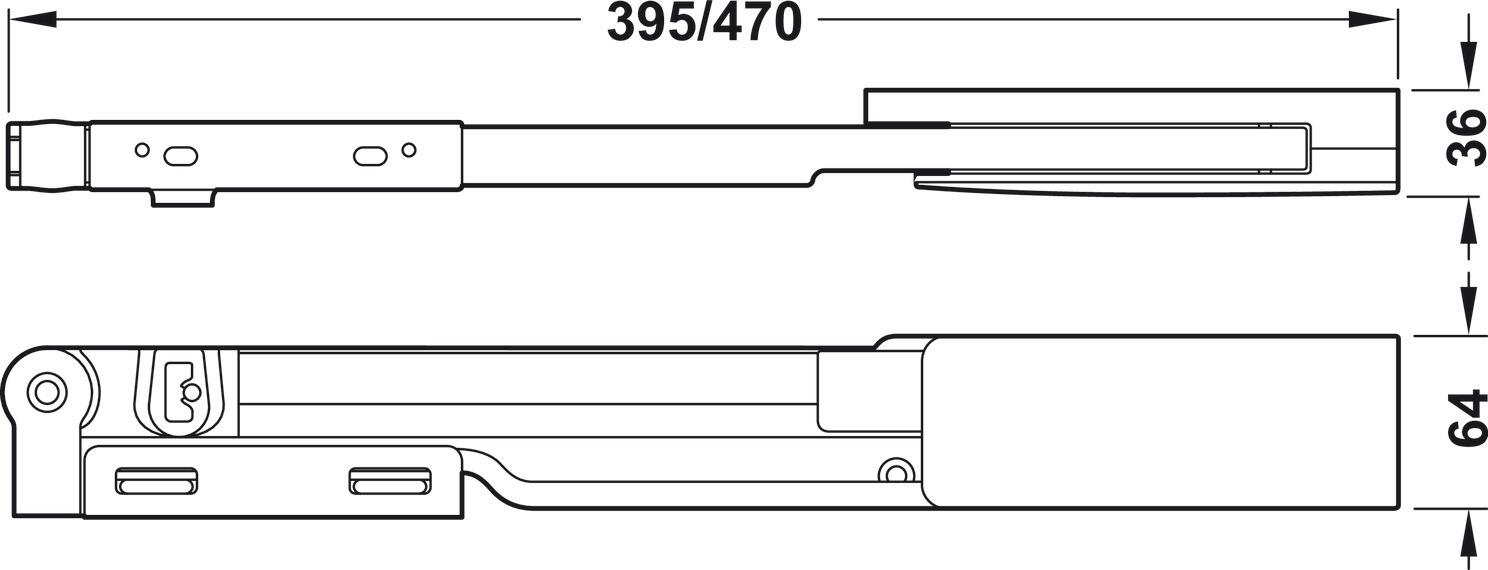

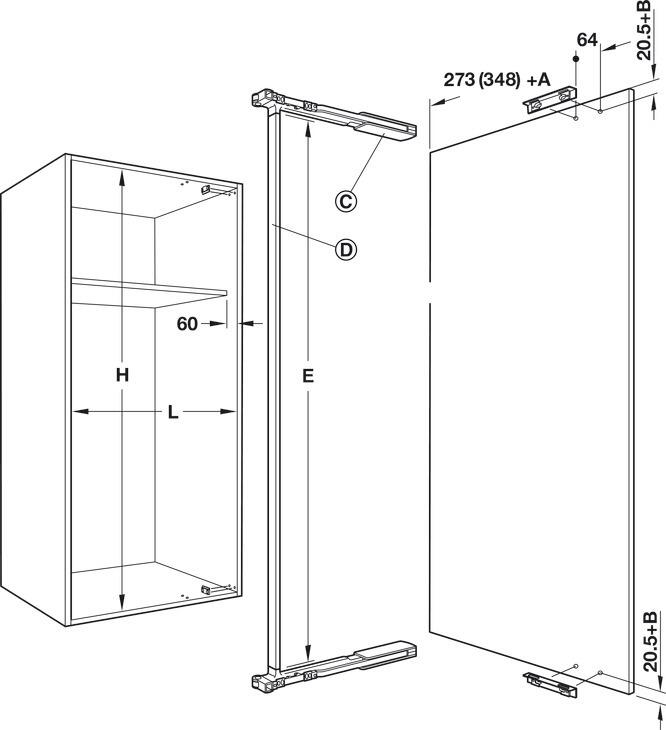

    Set consists of 2 x handed fittings for fixing to cabinet ceiling and floor and 2 x door mounting brackets


    Catalogue Page

  • More Information

    Version:-with soft closing mechanism

    Door weight max. 16kg

    Material:-Zinc alloy

    Colour/finish:-Silver coloured, powder coated

    Area of applicatio:-For swing clear cabinet doors

    Internal cabinet height:2,576.00mm

    Adjustment facility:-+4 mm vertical, ±2 mm horizontal, ±4 mm inclination
