PRODUCT DETAILS

With pre-stressing facility, For wood thickness from 15 mm

The ideal gluing aid:
Without using clamps or pressing devices
Completely concealed/invisible
Facilitated storage and transport of the work pieces

New pre-stress clip features
Little effort: Only briefly applying pressure is needed for engaging the fitting
Easy connection of workpieces, even with several connectors
The pre-stress clip is easily pushed in using the installation tool

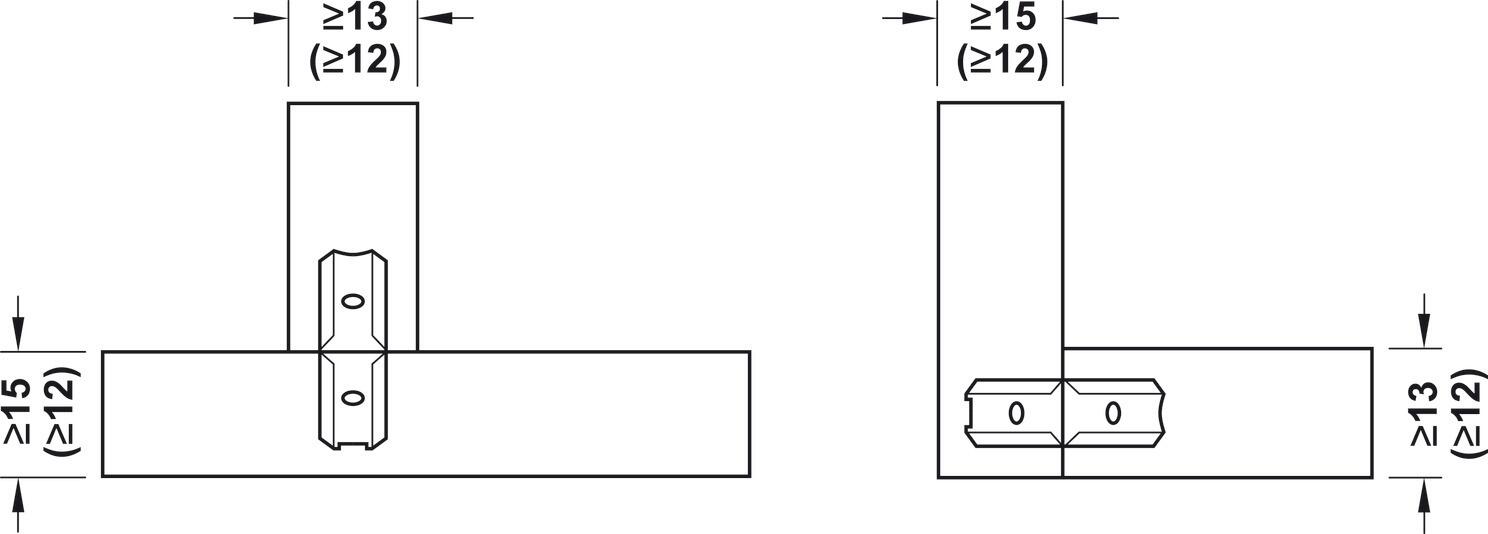

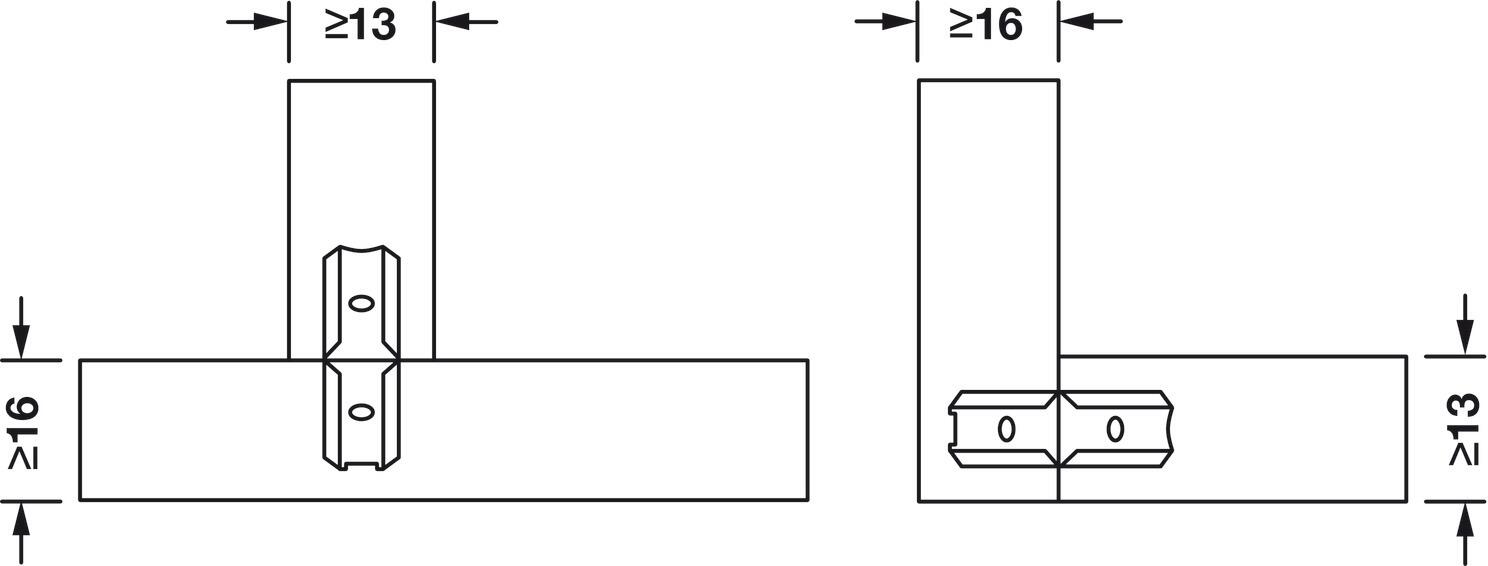

For wood thickness ≥15 mm

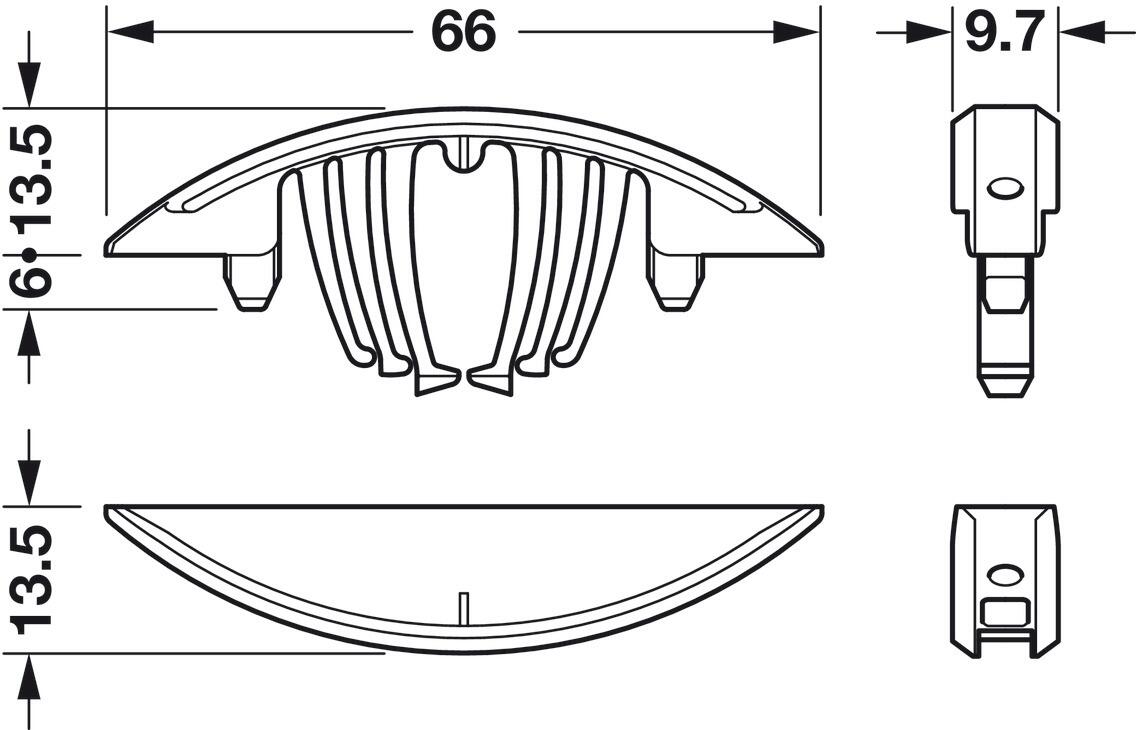

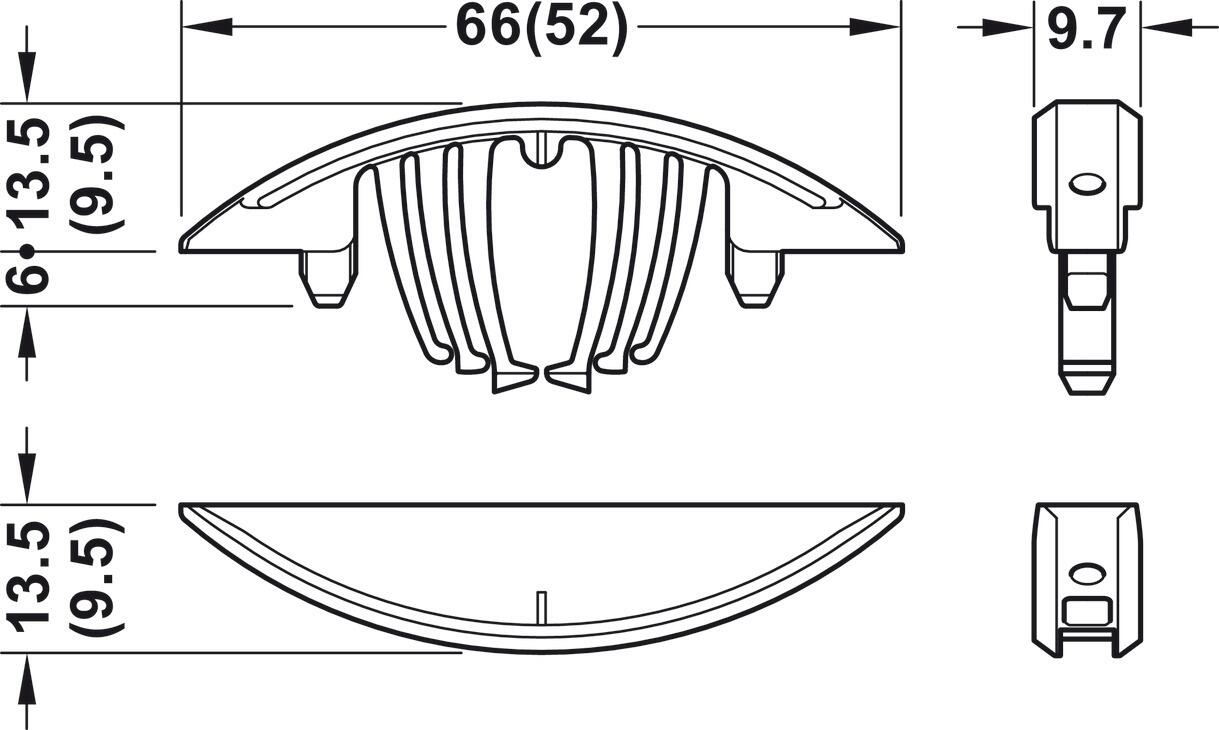

Routing depth :-14 mm

Area of application:-For cabinets with centre panels and intermediate shelves, or column claddings in stores, for drawers, installation of front panels, plug fitting onto plinths, ceiling panels, covers and handle profiles

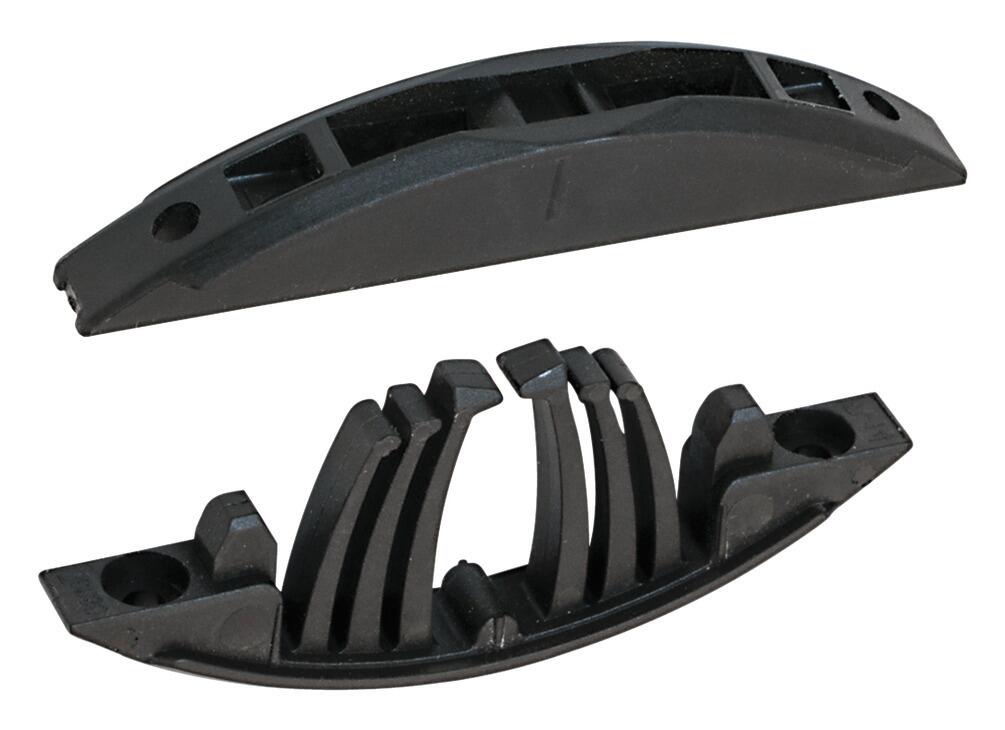

Material:- Plastic

Adjustment facility :-Lateral: ±1 mm, sliding tolerance: ±2 mm

Pull force:- approx. 15 kg/connector
Tensile strength: approx. 25 kg/connector

Version :-With pre-loading facility

Installation :-Pull force: approx. 15 kg/connector
tensile strength: approx. 25 kg/connector

Installation description :-Mill lengthways groove for connector
Mill P-system groove
Slide in connector
Knock in fixing pin using installation tool
Drill Dia. 8 mm for connecting bolt
Knocking in connecting bolt
Slide in shelf
Concealed, positive-fitting connection

Order reference :-Optimised product, also for use with pre-stress clip
