Product code: 283.33.904

£0.00
£22.81
(
£19.01
ex VAT)
Earn228
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

zinc plated

QuantityPrice (inc VAT)
3 - 4£21.72
5 +£19.31
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

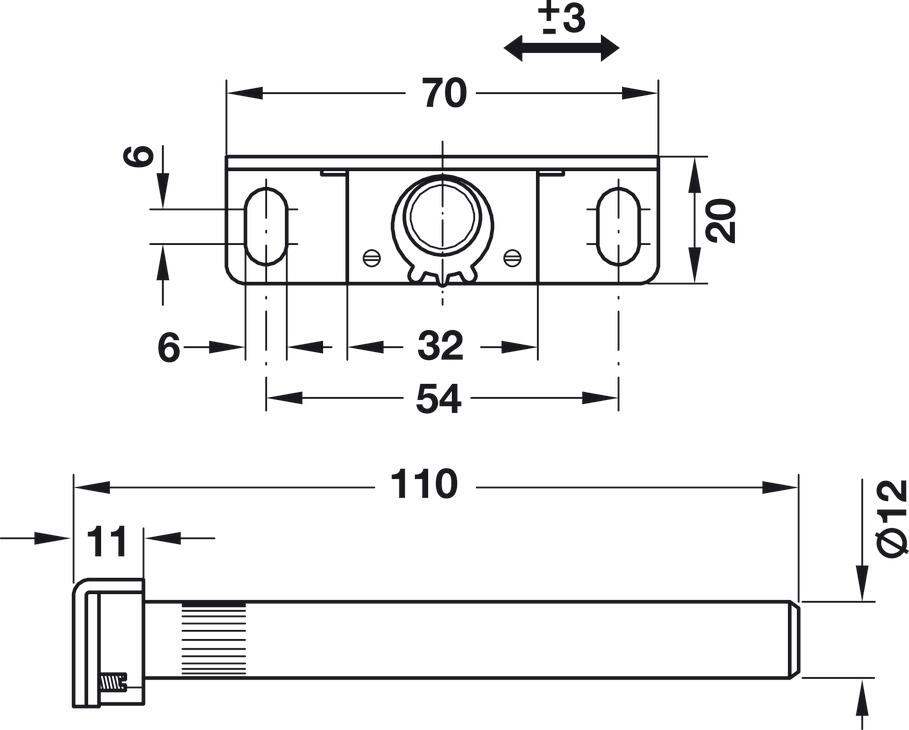

    Supporting pin with knurled section is installed in a Dia. 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf

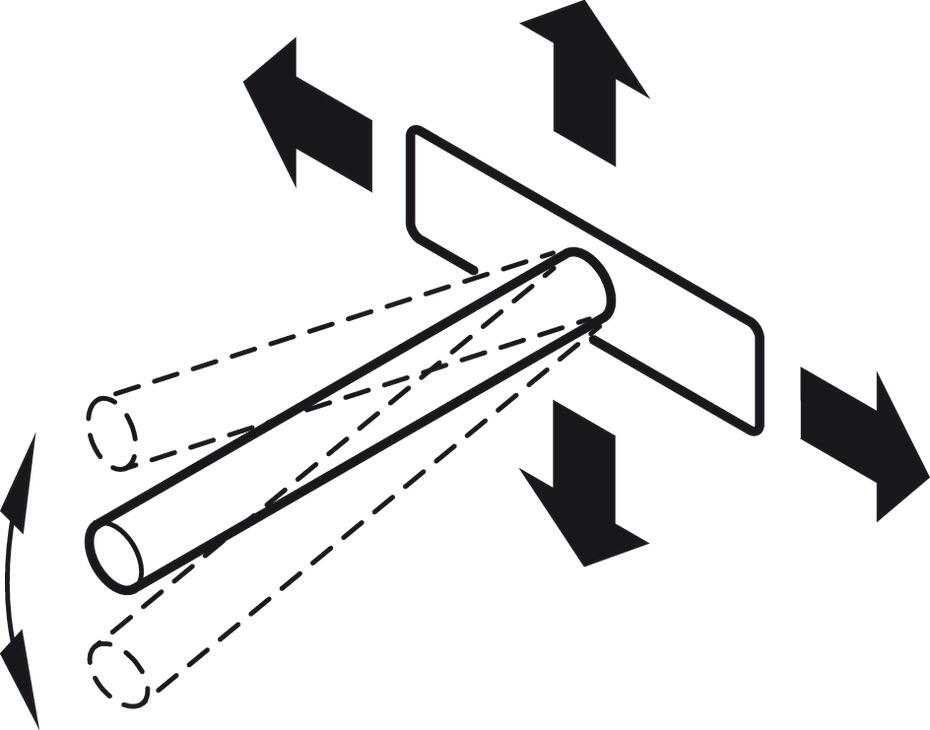

    Height adjustable via slots
    Inclination adjustment using adjusting screws which press on the rear plate when turned in
    Lateral adjustment by lifting the supporting pin; can be adjusted to the right or left

    Adjustment facilityTilt adjustment: via adjusting screwsHeight adjustment: via slots in screw-on plateSide adjustment: sliding via slot ±3 mm

    For shelf thickness

    		≥24 mm

    Colour/finish

    		zinc plated

    Version

    		With screw-on plate and eccentric sleeve
     Area of application
    		For concealed installation
    Material
    		     Steel
    Installation
    		For screw fixing to support element
    For mounting in drilled hole in shelf
    For installation into woodwork or masonry walls
    Supplied with
    		1x Supporting pin with mounting plate, galvanized steel
    1x Pre-mounted plastic sleeve
    2x Adjusting screws for inclination adjustment
