Concealed Shelf Support

This product is usually held in store (limited stock), so can be collected or despatched same day as ordering (weekdays)

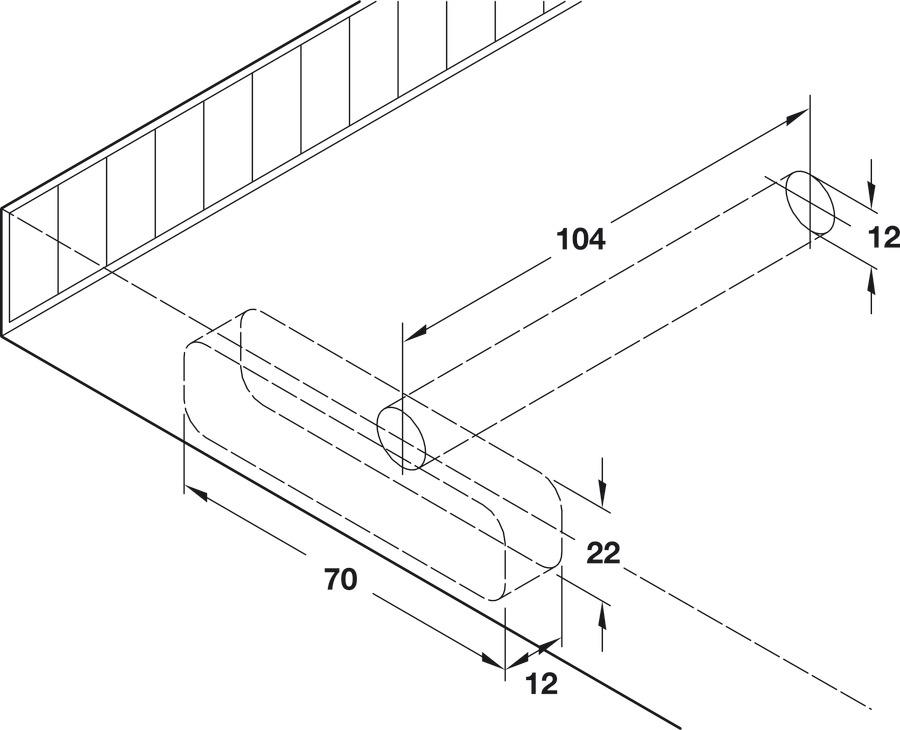

Supporting pin is installed in a 12 mm diameter hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf
Height adjustable via slots
Inclination adjustment using supporting pin which presses on the rear plate when turned in.

Adjustment facility:-Tilt adjustment: via support bolts Height adjustment: via slots in screw-on plate
For shelf thickness:-24 mm
Version:-With screw-on plate
Area of application:-For installation into woodwork or masonry walls
Material:-Steel
For shelf depth:-300 mm
Load bearing capacity:-80 kg-200 kg
Note on load bearing capacity
Load bearing capacity (with shelf support spacing = max. 700 mm and evenly distributed load)

Installation
For screw fixing to support elementâ For mounting in drilled hole in shelf

Use Screw Guage  5.0mm (not supplied) Please order separately

Supplied with

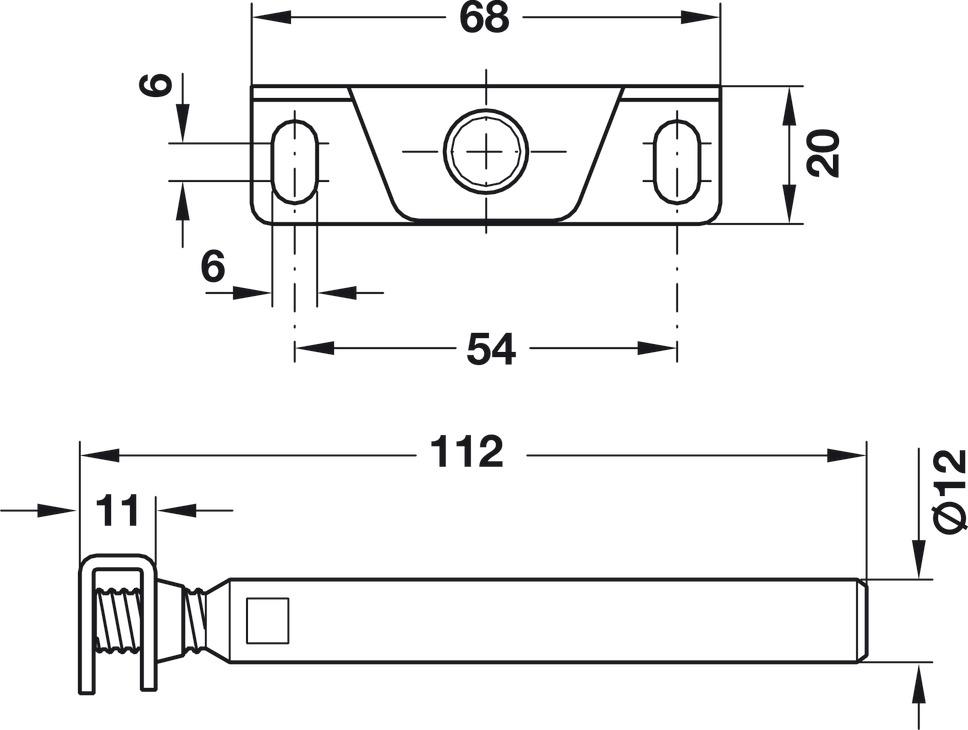

1 Supporting pin with mounting plate, galvanized steel

Sold in set of 4
