Concealed Cup Hinge, 155 Degree, Hafele Metalla 310, Quick Fixing Arm, Soft Close (Without Plate) - Hafele Metalla

Concealed Cup Hinge, 155 Degree, Hafele Metalla 310, Quick Fixing Arm, Soft Close (Without Plate) - Hafele Metalla

Product code: 311.63.730

£0.00
£2.33
(
£1.94
ex VAT)
Earn23
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Full overlay

QuantityPrice (inc VAT)
50 - 99£2.33
100 +£2.04

Bulk Buy Discounts for:

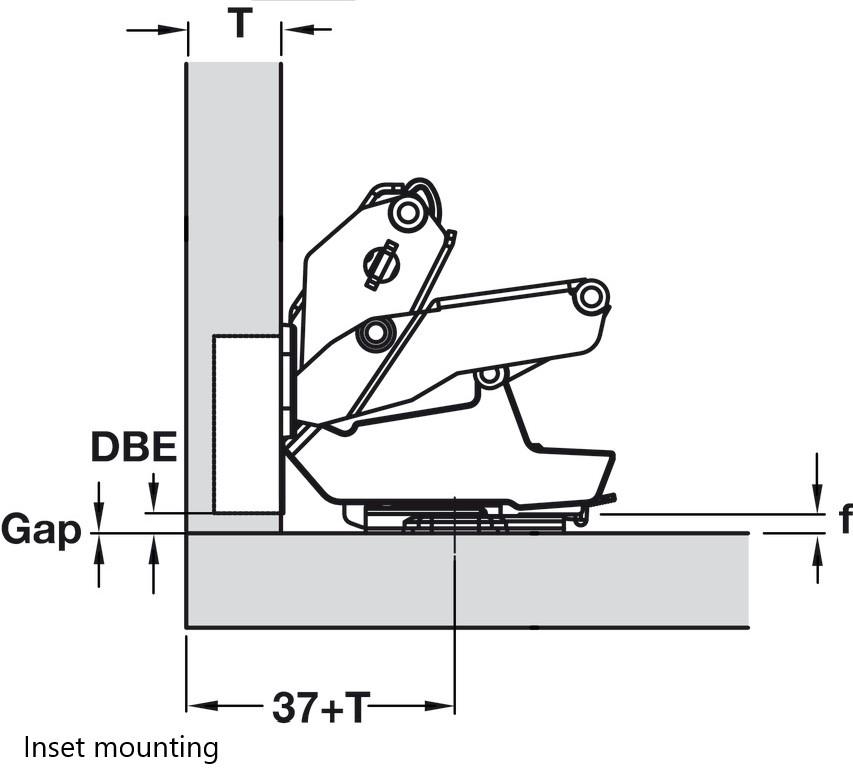

Inset

QuantityPrice (inc VAT)
50 - 99£2.64
100 +£2.31
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • Zero protrusion
    • 35mm diameter cup
    • Automatic closing
    • Soft close

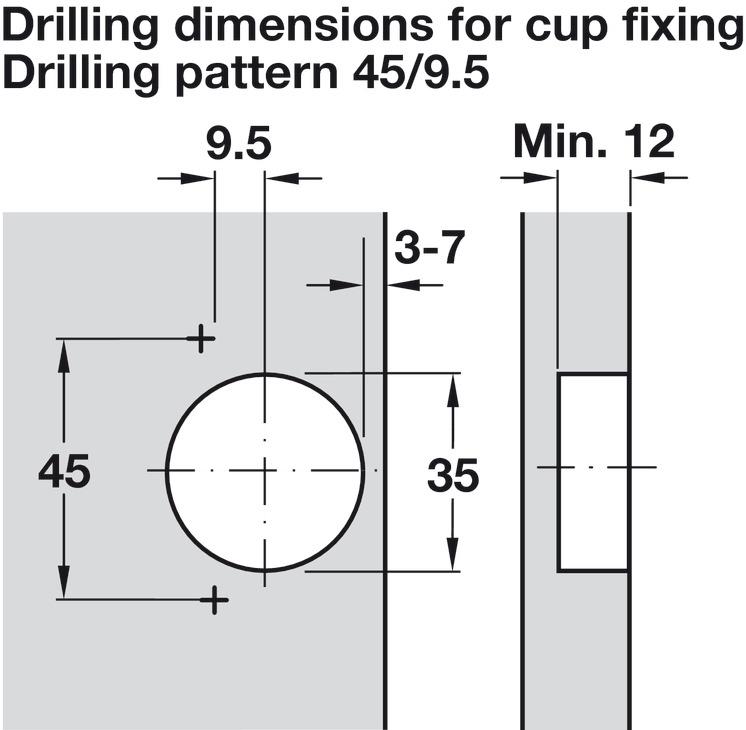

    Drilling pattern
    45/9.5 mm

    Adjustment facility
    Side adjustment: ? 3 mm
    Height adjustment: ? 2 mm (via mounting plate)
    Depth adjustment: 2.5 mm

    Overlay:

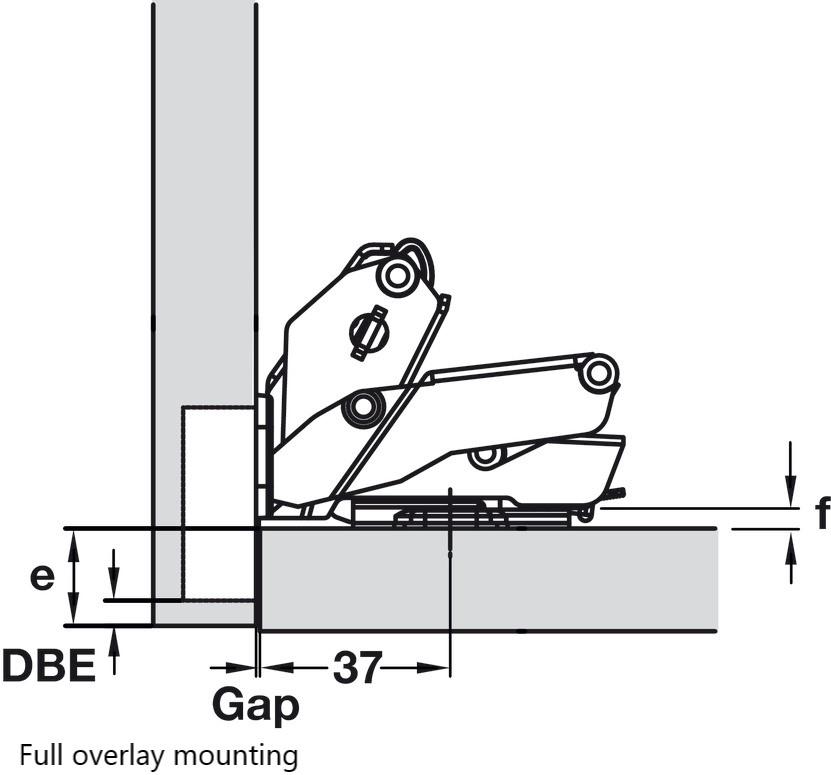

    Full

    Hinge arm
    Quick fixing

    Cup fixing
    Screw fixing cup

    For door thickness
    14-24 mm

    Opening angle
    155  degrees

    Drilling depth
    Min. 12 mm

    Guarantee
    25 years

    Material
    Cup and arm: Steel

    Finish
    Nickel plated

    Order reference
    For use with super compact cruciform mounting plates 311.71.500/502/504 (please order separately)
    Order mounting plate and Hospa diameter 3.5 mm countersunk screws separately
    Order cover plates separately.

    Pack size
    1 piece (hinge only)
