Concealed Cup Hinge, 95 Degree, Grass Nexis, Click On Arm, Sprung (Without Plate) - Grass Nexis

Concealed Cup Hinge, 95 Degree, Grass Nexis, Click On Arm, Sprung (Without Plate) - Grass Nexis

Product code: 322.11.530

£0.00
£5.26
(
£4.38
ex VAT)
Earn53
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Full overlay

QuantityPrice (inc VAT)
10 - 29£5.00
30 - 49£4.73
50 +£4.21

Bulk Buy Discounts for:

Hal overlay / Twin mounting

QuantityPrice (inc VAT)
10 - 29£5.68
30 - 49£5.38
50 +£4.79

Bulk Buy Discounts for:

Inset

QuantityPrice (inc VAT)
10 - 29£5.86
30 - 49£5.55
50 +£4.93
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For standard applications
    • 35 mm diameter cup
    • Soft-close compatible

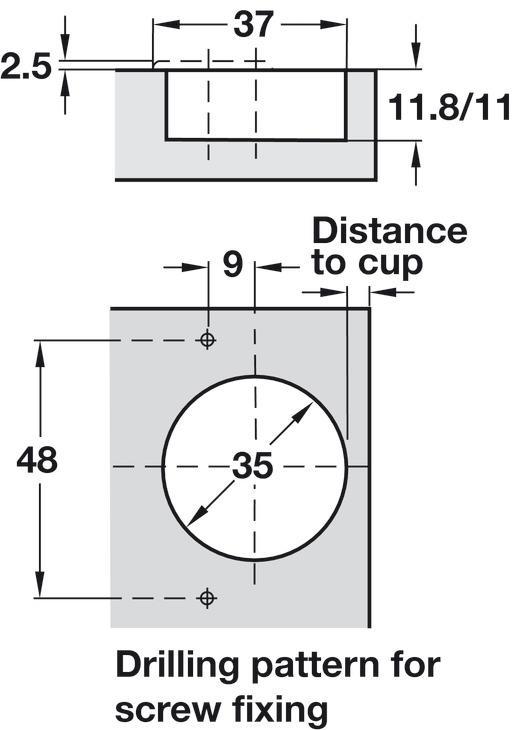

    Drilling pattern
    48/9 mm

    Cup fixing
    For screw fixing

    Mounting
    Mounting in drilled hole, Screw fixing

    Distance to cup min.
    3 mm

    Distance to cup max.
    6 mm

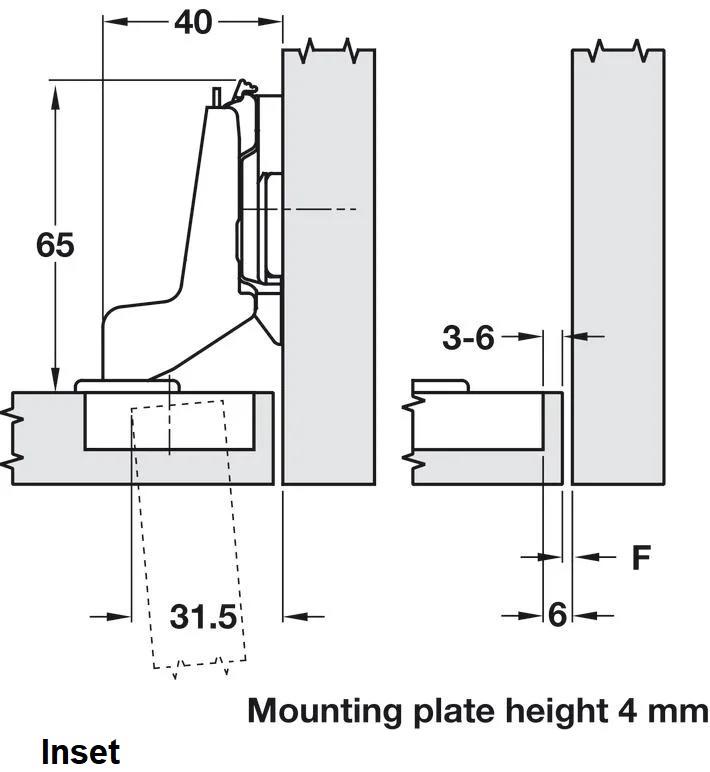

    Concealed hinge version
    Inset

    Material
    Steel, Hinge arm: Steel

    Door processing for assembly
    Cup drilling

    For wooden door thickness
    Up to 30 mm

    Cup drilling depth
    11.8 mm

    Model series
    Grass 95 degree opening

    Order reference
    Order mounting plate and Hospa guage 3.5 mm countersunk screws separately
    Order cover plates separately, 35mm hole cutter also.
