Concealed Cup Hinge, 95 Degree, Grass Tiomos, For Up To 28 Mm Thick Doors, Click On Arm (Without Plate) - Grass Tiomos

Concealed Cup Hinge, 95 Degree, Grass Tiomos, For Up To 28 Mm Thick Doors, Click On Arm (Without Plate) - Grass Tiomos

Product code: 348.42.601

£0.00
£5.49
(
£4.58
ex VAT)
Earn55
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

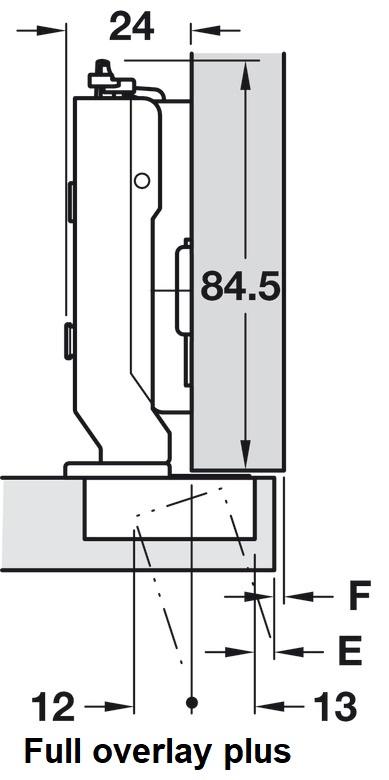

Full overlay plus

QuantityPrice (inc VAT)
5 - 9£7.15
10 - 24£6.77
25 +£6.02

Bulk Buy Discounts for:

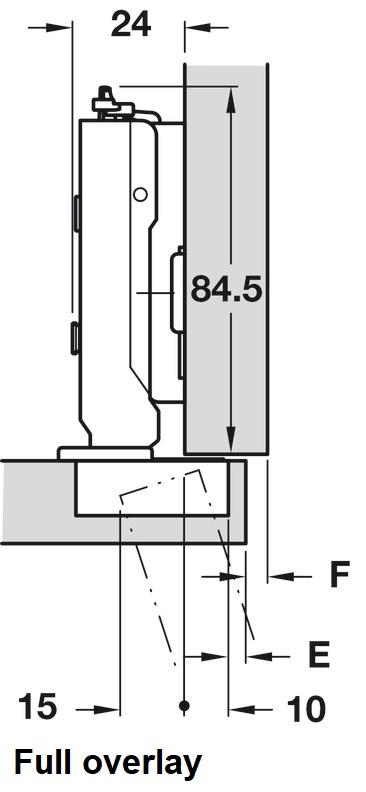

Full overlay

QuantityPrice (inc VAT)
5 - 9£5.21
10 - 24£4.94
25 +£4.39

Bulk Buy Discounts for:

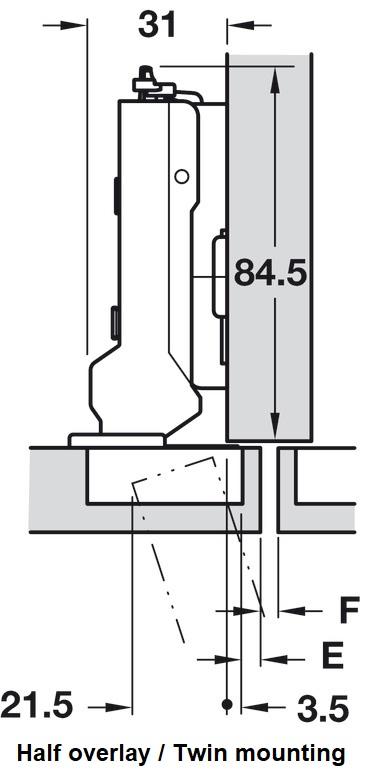

Half overlay / Twin mounting

QuantityPrice (inc VAT)
5 - 9£7.81
10 - 24£7.40
25 +£6.58

Bulk Buy Discounts for:

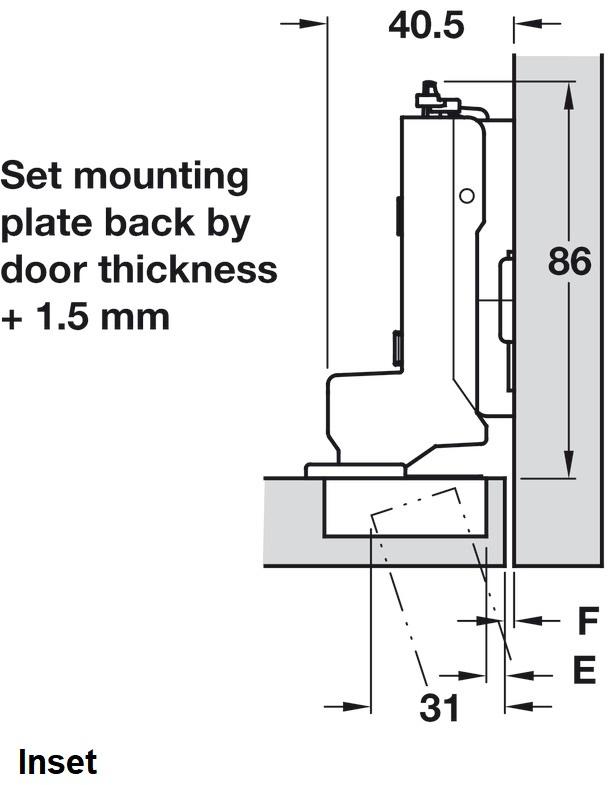

Inset

QuantityPrice (inc VAT)
5 - 9£8.23
10 - 24£7.80
25 +£6.93
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For standard application
    • ⌀ 35 mm cup
    • Up to 28 mm door thickness (for door thicknesses 29 mm and above, a trial fitting is recommended)

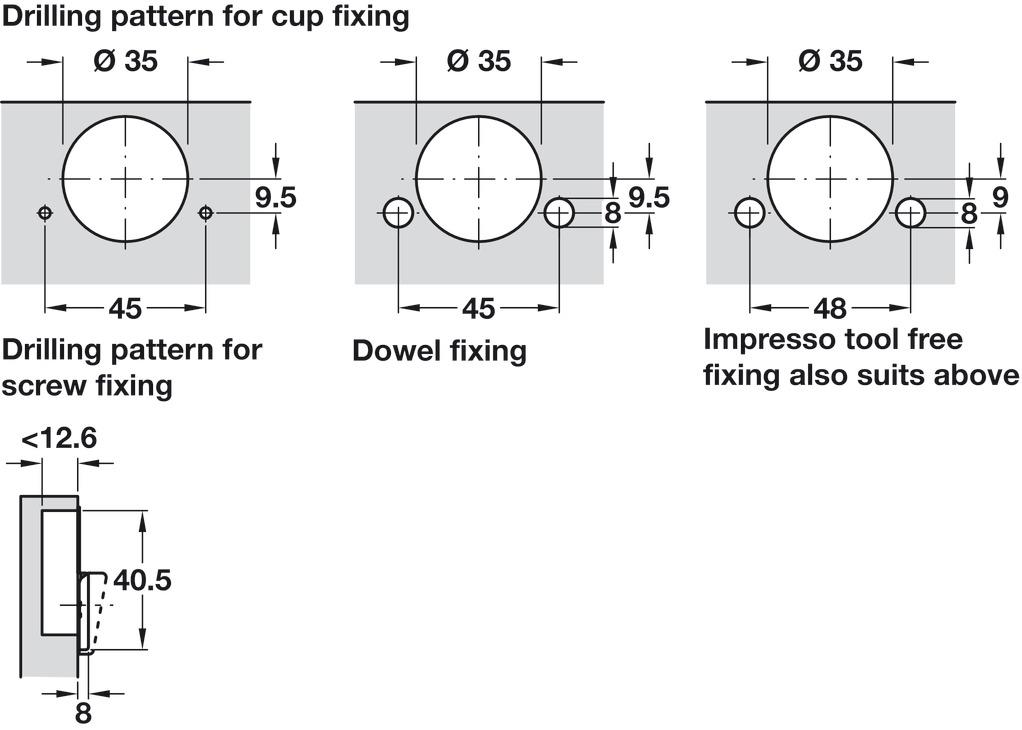

    Drilling pattern
    45/9.5 mm

    Mounting
    Mounting in drilled hole, Screw fixing

    Model
    Tiomos

    Opening angle
    95?

    Material
    Steel, Hinge arm: Steel

    Door processing for assembly
    Cup drilling

    For wooden door thickness
    Up to 36 mm (fo 29 mm and above a trial fitting is recommended)

    Cup drilling depth
    12.6 mm

    Order reference
    Order mounting plate and Hospa ? 3.5 mm countersunk screws separately
    Order cover plates separately
