Concealed Cup Hinge, 170 Degree, Grass Nexis, Click On Arm, Sprung (Without Plate) - Grass Nexis

Concealed Cup Hinge, 170 Degree, Grass Nexis, Click On Arm, Sprung (Without Plate) - Grass Nexis

Product code: 322.21.630

£0.00
£5.67
(
£4.73
ex VAT)
Earn57
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Full overlay

QuantityPrice (inc VAT)
10 - 29£5.38
30 - 49£5.10
50 +£4.53

Bulk Buy Discounts for:

Half overl / Twin mounting

QuantityPrice (inc VAT)
10 - 29£9.91
30 - 49£9.39
50 +£8.34
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • 35mm cup diameter
    • Zero protrusion makes this hinge ideal for cabinets with internal drawer boxes or pull out shelves
    • With finger protection
    • For standard applications
    • Heavy duty
    • Up to 26 mm door thickness (for door thicknesses 23.5 mm and above, a trial fitting is recommended)
    • Soft-close compatible

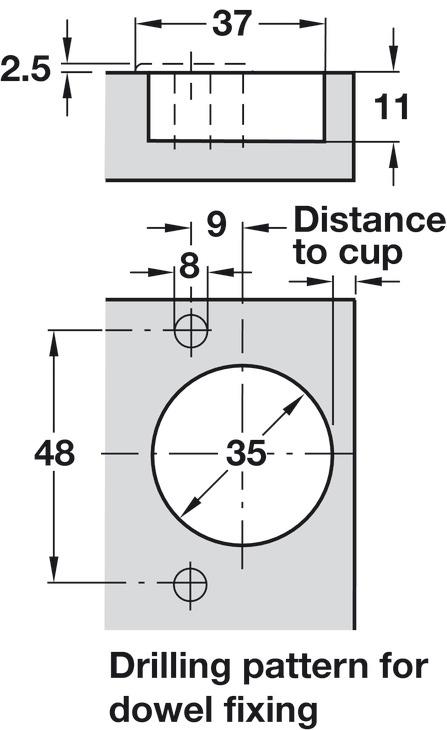

    Drilling pattern
    48/9 mm

    Cup fixing
    For screw fixing

    Mounting
    Mounting in drilled hole, Screw fixing

    Distance to cup
    8 mm

    Opening angle
    170 degree

    Material
    Zinc alloy, Hinge arm: Zinc alloy

    Door processing for assembly
    Cup drilling

    For wooden door thickness
    Up to 26 mm

    Cup drilling depth
    11 mm

    Order reference
    Soft close fitting 322.67.170 to be ordered separately (if required)
    Order mounting plate and Hospa guage 3.5 mm countersunk screws separately
    Order cover plates separately
