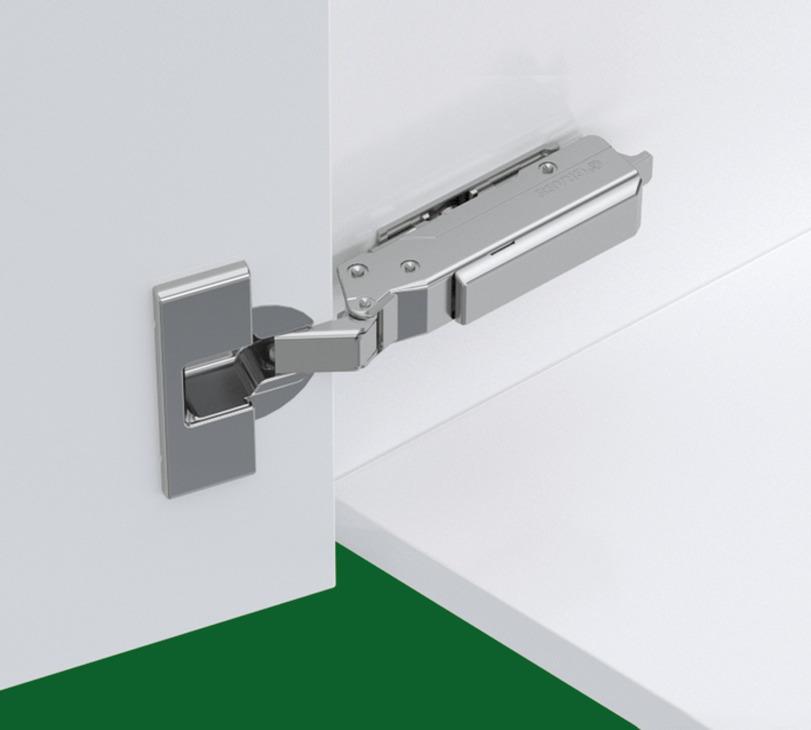

Concealed Cup Hinge, 110 Degree, Grass Tiomos, Click On Arm, Sprung, Dowel Fixing (Without Plate) - Grass Tiomos

Concealed Cup Hinge, 110 Degree, Grass Tiomos, Click On Arm, Sprung, Dowel Fixing (Without Plate) - Grass Tiomos

Product code: 348.31.811

£0.00
£6.22
(
£5.18
ex VAT)
Earn62
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

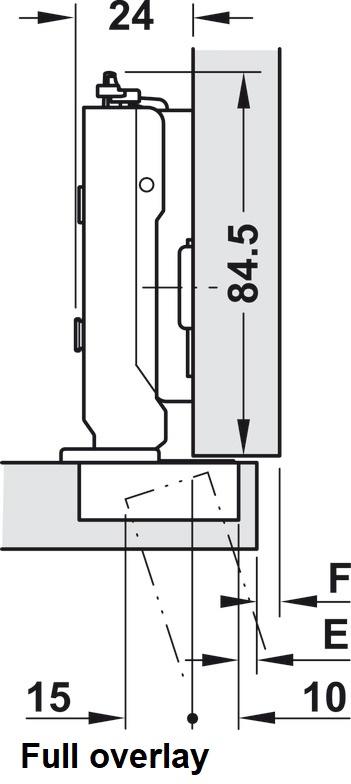

Full overlay

QuantityPrice (inc VAT)
5 - 9£5.91
10 - 24£5.60
25 +£4.98
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • For standard applications
    • ? 35 mm cup
    • With soft closing mechanism integrated in hinge arm, with 3 settings (optional)
    • Optimum gap dimensions up to 24 mm door thickness (for door thicknesses 24 mm and above, a trial fitting is recommended)
    • Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm.

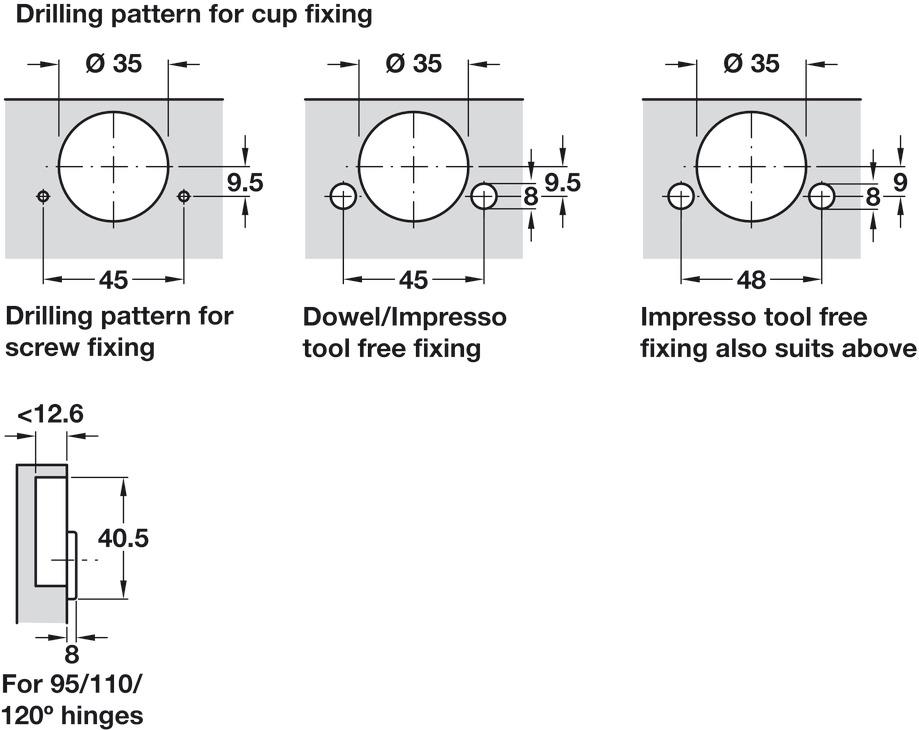

    Drilling pattern
    45/9.5 mm

    Colour/finish
    nickel

    Mounting
    Mounting in drilled hole

    Material
    Steel, Hinge arm: Steel

    Adjustment facility
    Side adjustment ?2 mm, Height adjustment ?2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate

    For wooden door thickness
    16 – 24 mm

    Cup drilling depth
    12.6 mm

    Model series
    Tiomos 110?

    Order reference
    Order mounting plate and Hospa ? 3.5 mm countersunk screws separately
    Order cover plates separately
