PRODUCT DETAILS

Article details

Features an innovative anti-turnover device

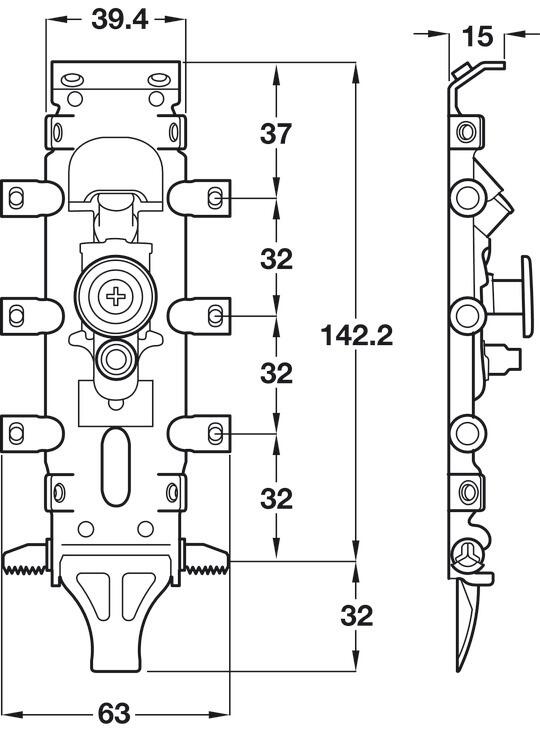

Cabinet hanger concealed behind rear panel, only cover caps visible inside the cabinet

Vertical and horizontal adjustment. The two movements are 100% independent of each other and therefore make the adjustments much easier and more efficient

Installation

Dowels/Screw mounting:

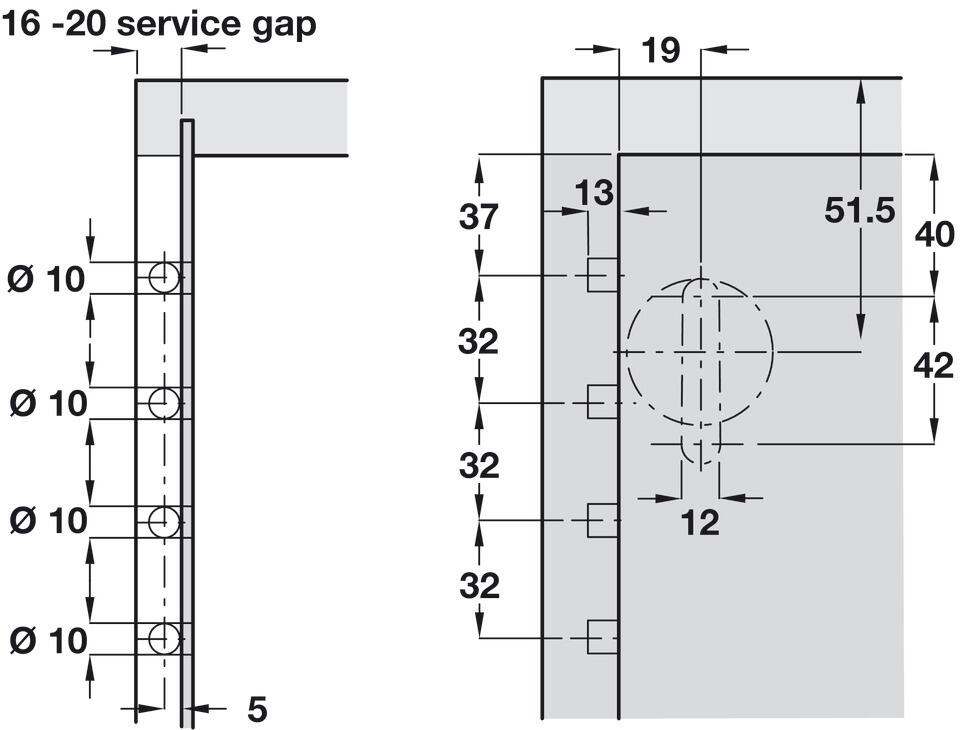

Slots into side cabinet by making four face borings and secured in position by rotating the locking pin with ridges 180°

A 3.5 x 20 mm lateral wood screw permanently secures the cabinet hanger in place (not provided)

Area of application

For hanging wall units

Load bearing capacity per pair

150 kg

Installation reference

Two-way independant adjustment:

Vertical adjustment: 13 mm

Horizontal adjustment: 12mm

Order reference

Wall plates and cover caps must be ordered separately

Please order fixings separately

Please note: The locking adjustment screw cannot be accessed if round cover caps are fitted, order rectangular cover cap if access to all 3 adjusting screws is required

Additional information attributes

Cabinet hangers should only be adjusted with a hand tool and not a power tool

For safety reasons, the cabinet hangers must be fitted in the upper third of the cabin
