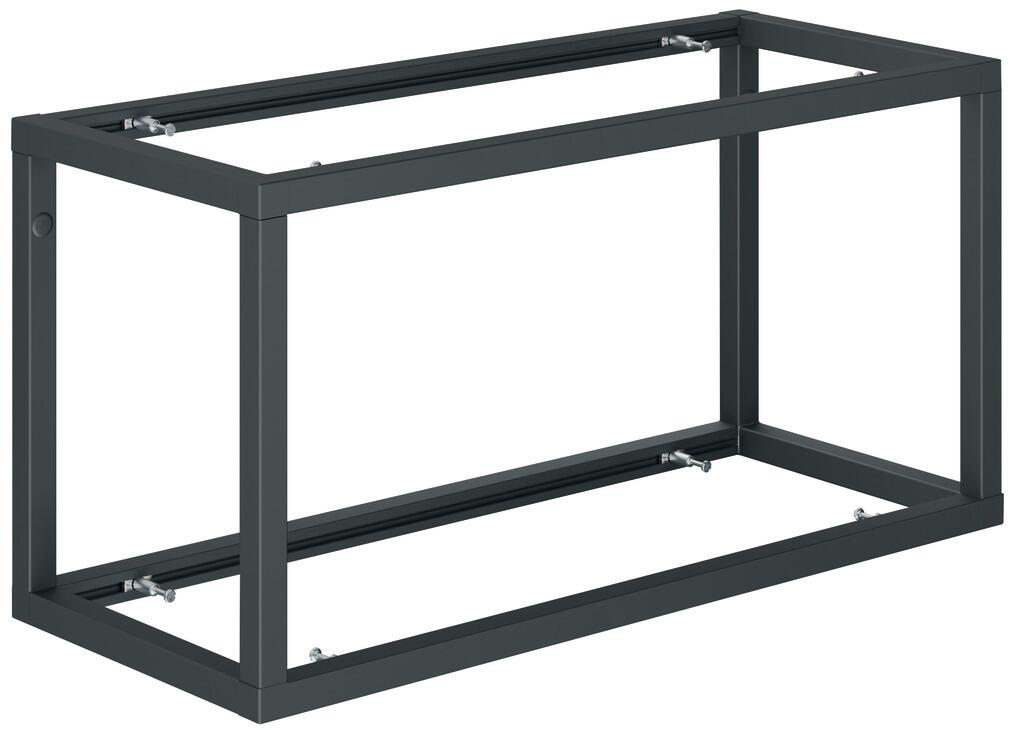

Customised shelf system, engineered by Häfele

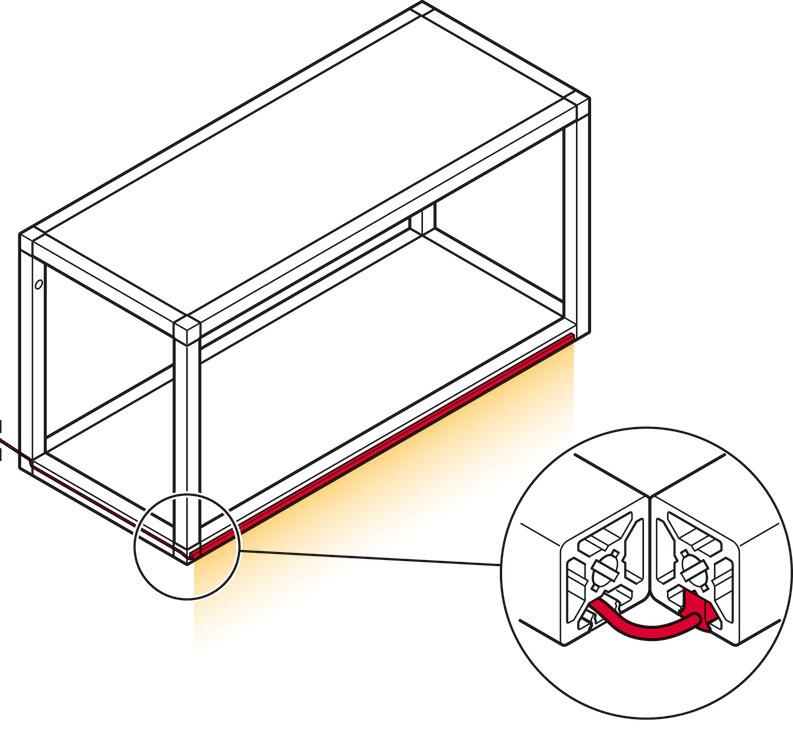

Innovative, patented corner connection
Easy integration of lighting into the shelf
Concealed cable guide
Can be flexibly cut to size, without further profile processing
Installation from the front
Uncomplicated mounting of corner connectors from the front

Material;-Aluminium

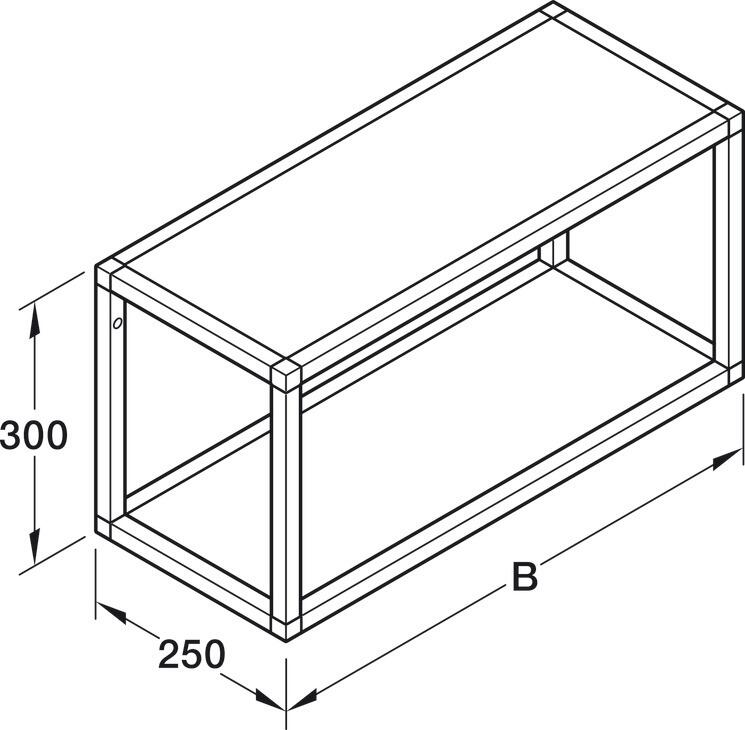

Height:-300.00 mm

Colour/finish:-Black grey, RAL 7021, powder coated, microstructure

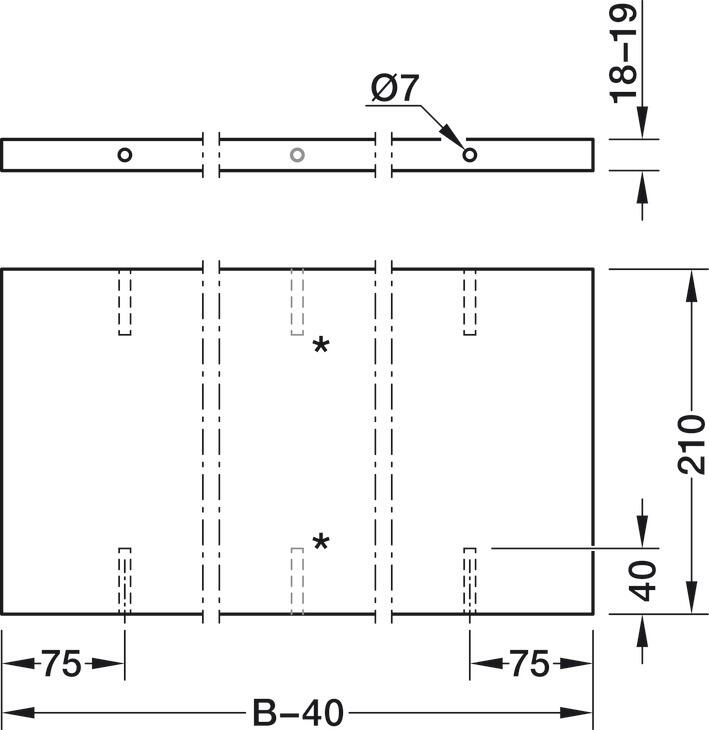

For panel thickness:-18–19 mm

Depth:-250.00 mm

Load bearing capacity:-15 kg per shelf

Order reference

Shelves not included in scope of delivery. Countersunk head screws and wall plugs for wall mounting are not included and must be selected to match the type of wall.
When ordering LED strip lights, please pay attention to the correct strip light length: (please see in related products)
Shelf width 600 mm requires a strip length of 0.55 m.
Shelf width 900 mm requires a strip length of 0.85 m.

Supplied with

3 Profile 1N, length 210 mm
1 Profile 2N, length: 210 mm

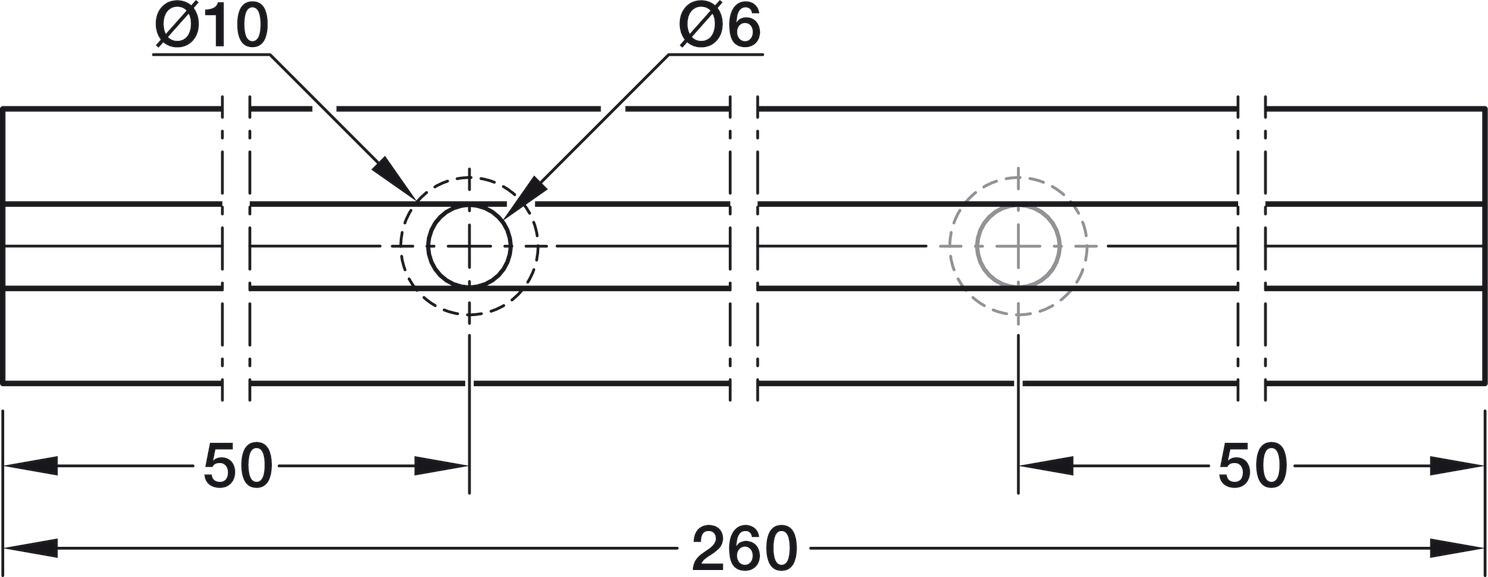

2 Profile 1N, length: 260 mm with hole
2 Profile 1N, length: 260 mm
3 Profile 1N, length: 560 mm
1 Profile 2N, length: 560 mm
8 corner connectors
8 corner covers
2 cover cap
2 cable covers (210 mm + 560 mm)
24 threaded screws M6
8 slot nuts
8 connecting bolt
