Cabinet Hanger, For Screw Fixing With Three Way Adjustment, Steel - Hafele

Cabinet Hanger, For Screw Fixing With Three Way Adjustment, Steel - Hafele

Product code: 290.02.702

£0.00
£3.66
(
£3.05
ex VAT)
Earn37
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Right

QuantityPrice (inc VAT)
2 - 4£3.47
5 +£3.08

Bulk Buy Discounts for:

Left

QuantityPrice (inc VAT)
2 - 4£3.47
5 +£3.08
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Tested to DIN EN 15939, Left hand - Load bearing capacity 104 kg (when 2 pcs are installed)

    Three way adjustment
    Vertical adjustment: 16 mm
    Depth adjustment: 14 mm
    Lateral adjustment: 18 mm

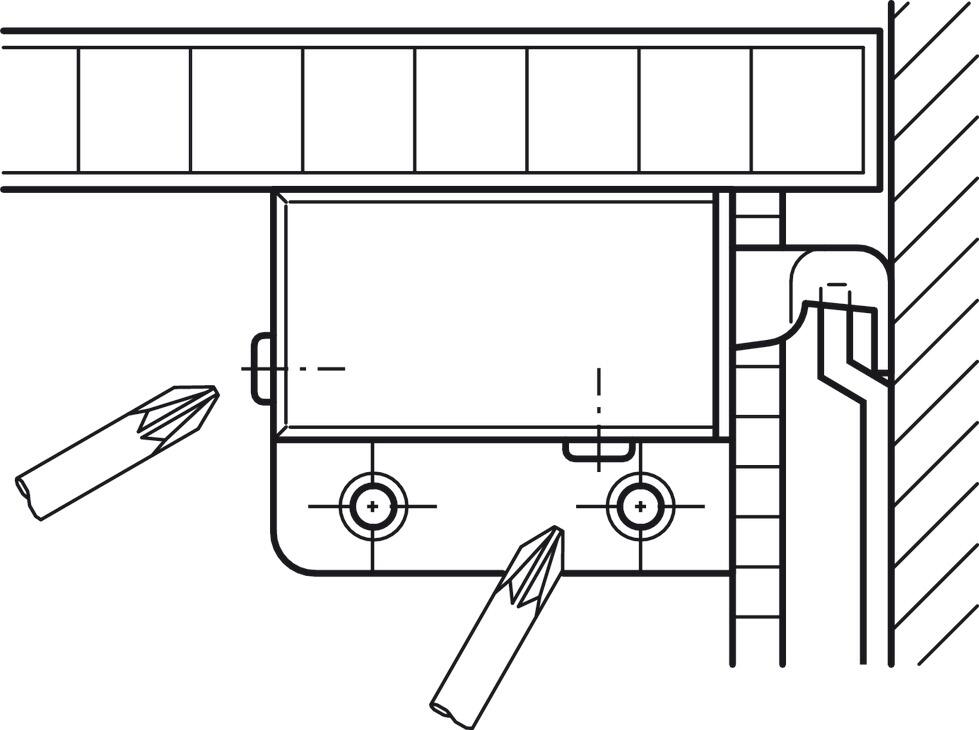

    The screwdriver can be inclined by ?15? which allows comfortable adjustment of the screws.

    Installation:-Screw fixing

    Colour/finish:-nickel plated zinc plated

    Product version:-Visible inside the cabinet

    Area of application:-For hanging cabinets and closets

    Load bearing capacity:-52 kg

    Load bearing capacity per pair:-104 kg

    Material:-Steel

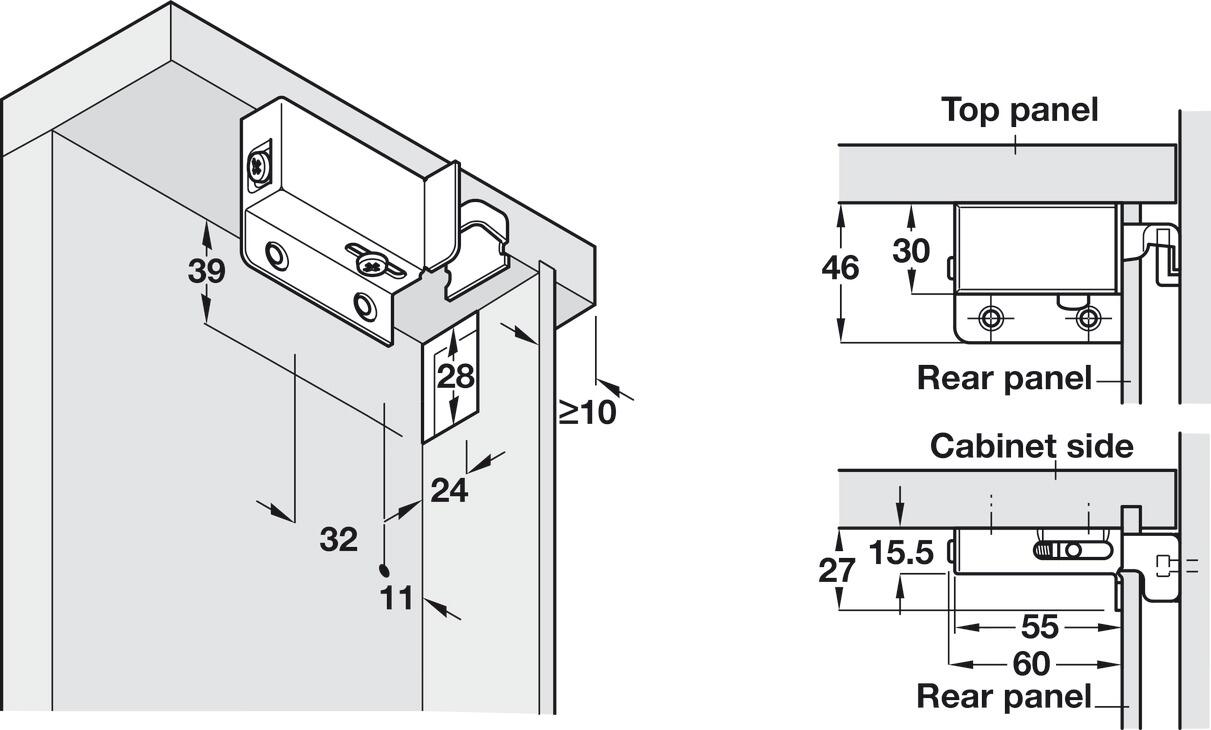

    Installation reference

    Three way adjustment
    Vertical adjustment: 16 mm
    Depth adjustment: 14 mm
    Lateral adjustment: 18 mm

    Standard:-The load bearing capacity of the cabinet hanger is 52?kg/piece in compliance with the DIN EN 15939 standard requirements.

    Adjustment facility:-Side adjustment: <18 :-m, Height adjustment: <16 mm, Depth adjustment facility: <14 mm

    Order reference

    Wall plate or rail must be ordered separately- see in related products
