Button-Fix Panel Connecting Fittings Type 1 Set, For Parallel Panels (10 Pack) - Hafele

Button-Fix Panel Connecting Fittings Type 1 Set, For Parallel Panels (10 Pack) - Hafele

Product code: 262.94.010

£0.00
£12.16
(
£10.13
ex VAT)
Earn122
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Type 1 Set

QuantityPrice (inc VAT)
2 - 9£10.81
10 +£9.46
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

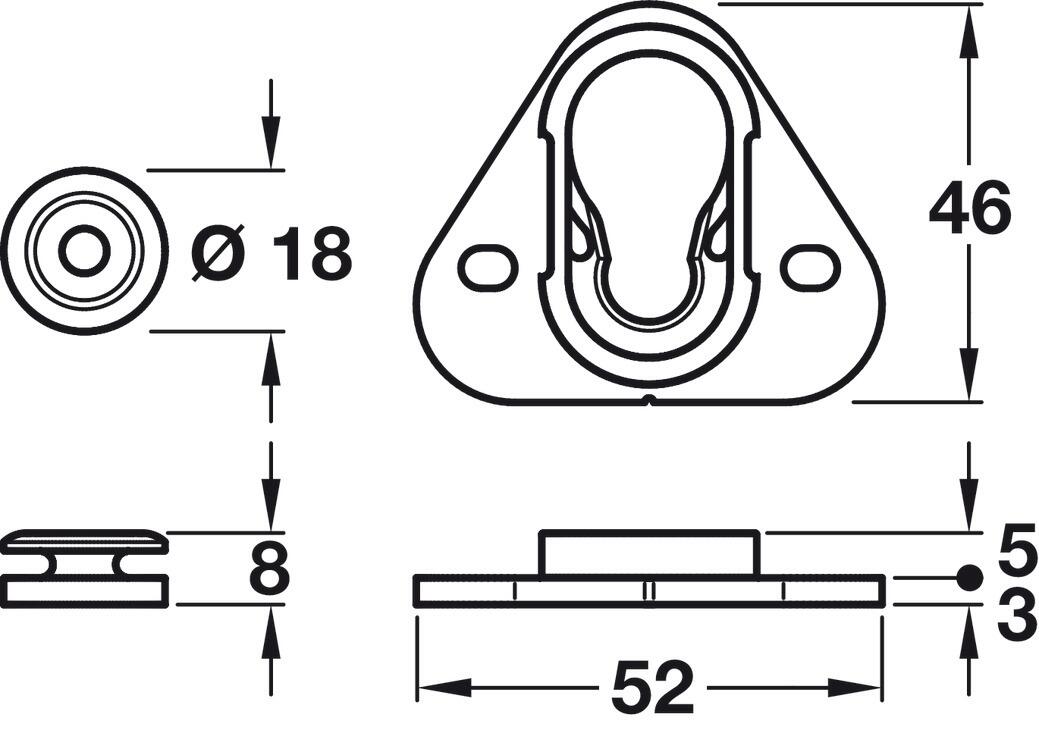

    The Button-Fix system includes four types of connecting fittings for use with special buttons to connect panels in parallel or at 90 degrees.

    • Connects parallel panels and is ideal for applications where strength and security is paramount
    • Engage the buttons in the connector and slide the panel down by 15 mm until Button-fix goes 'click', can also be configured sideways
    • For use with special buttons to connect panels in parallel
    • When surface mounted an 8 mm gap is created between the two attaching panels
    • Alternatively, you can rebate connector to reduce the gap between the two attaching panels to only 3 mm
    • Glass filled nylon
    • Set consists of:
      10x Type 1 Fix for parallel panels
      10x Button for 5mm dia countersunk wood screw
    • Fixings not included
