PRODUCT DETAILS

• Drawer Runners/ Glides/ Guides
• Corrosion resistant coating which has been tested up to 96 hours salt spray and 8 times more protection than regular zinc finish, stainless steel ball retainer, ball bearings and rivets
• Hold-in feature holds the closed drawer in
• Grooved cabinet member, for better movement
• Front disconnect (by depressing lever) for drawer removal
• Improved retainer retention device
• Tested to 80,000 cycles

Version
Tolerance absorption tabs

Colour/finish
Corrosion resistant

Area of application
For applications such as filing cabinets, desk pedestals and general storage drawers

Holding function
Hold-in

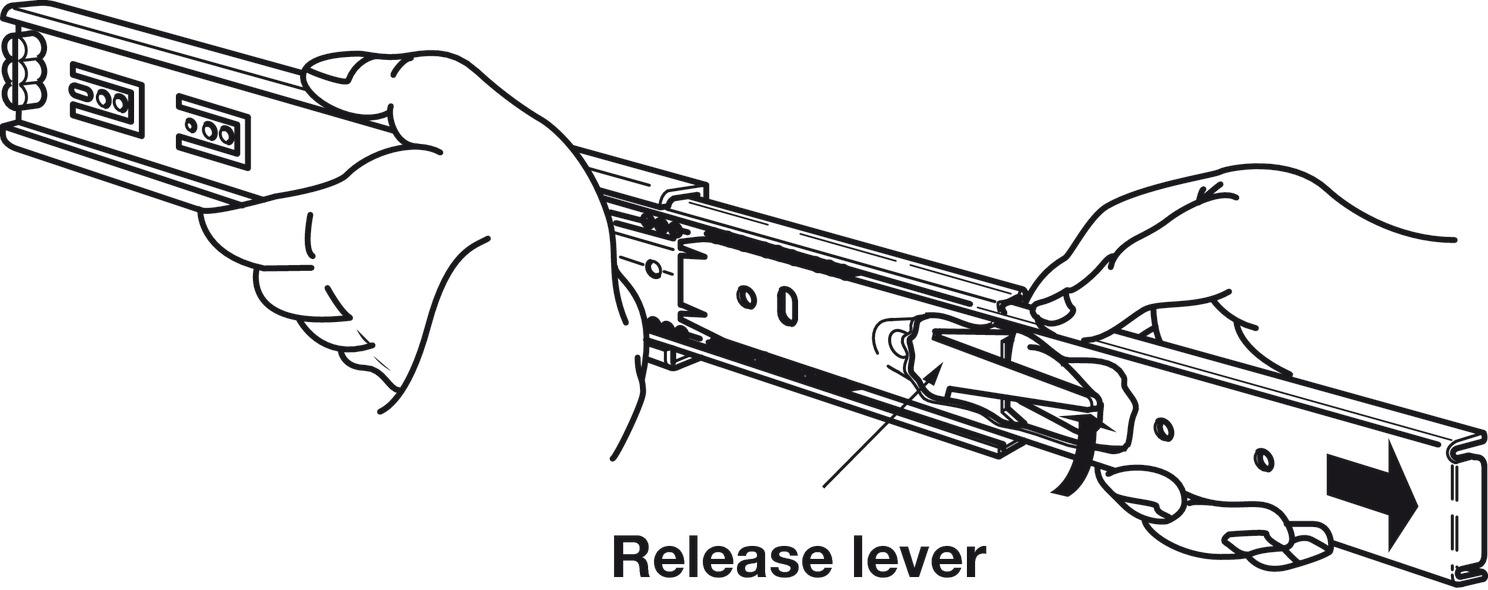

Removing the running track
with release lever

Material
Steel

Bearing
Ball bearing

Installation

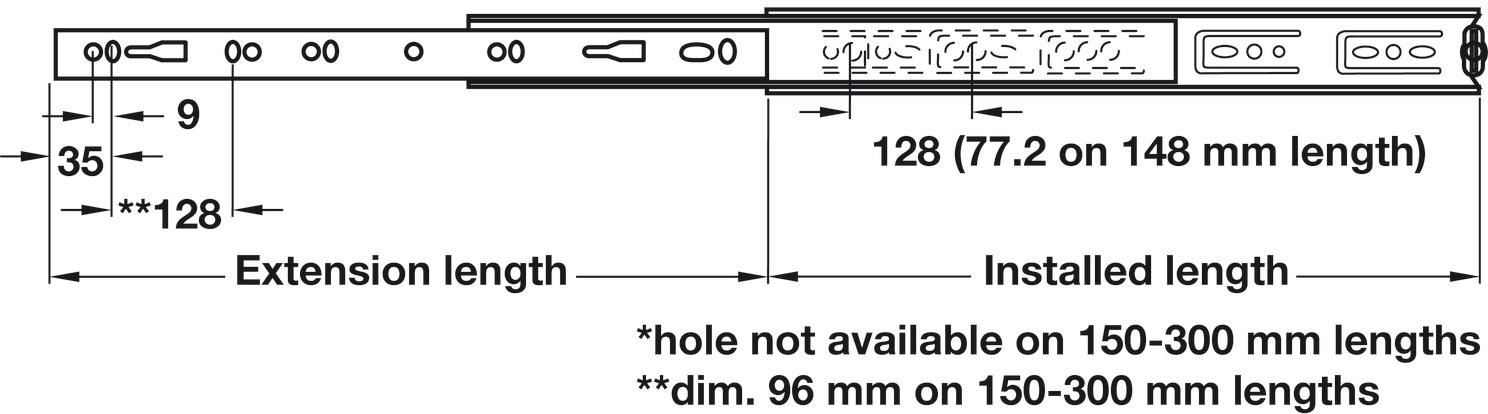

32 mm drilling pattern

Order reference
Optional brackets for bottom or shelf mounting of these runners are available
Standard hold-in and hold-out versions available
Order Varianta ? 5 cylinder head and Hospa ? 4.0 pan head screws separately
Fixings: Max. head height 2.5 mm, ? 9.6 mm

Pack size
1 pair
