PRODUCT DETAILS

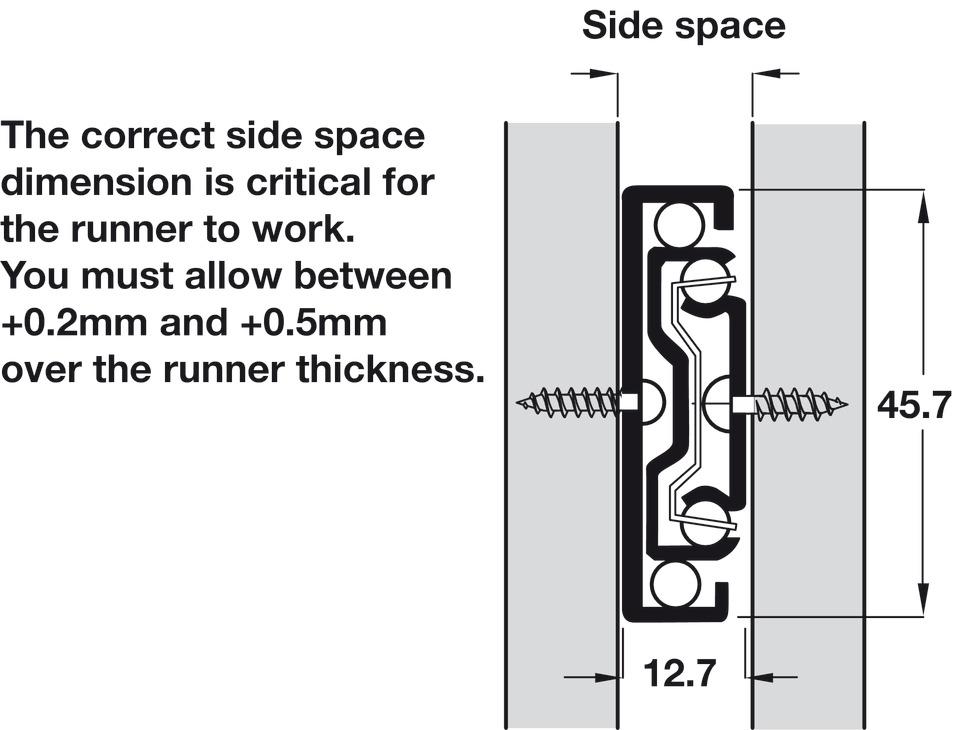

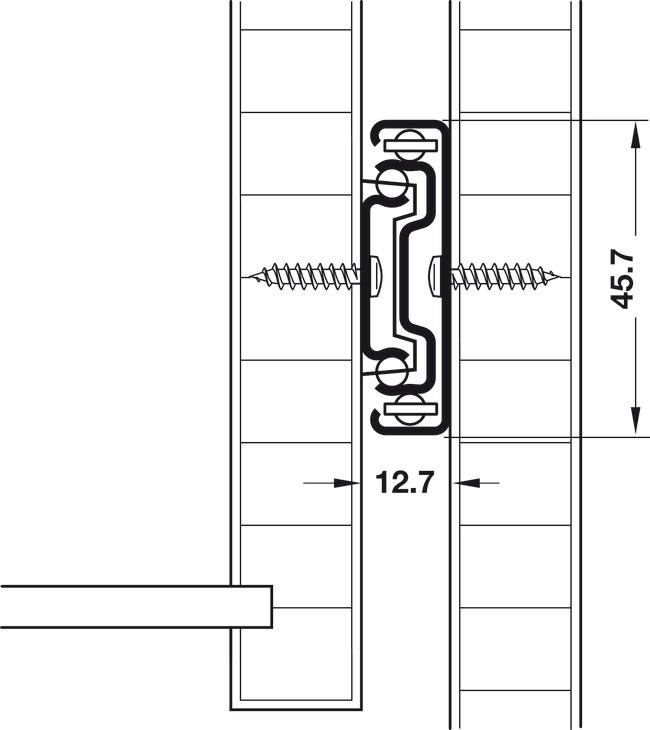

Mounting
Side mounting

Version
Tolerance absorption tabs

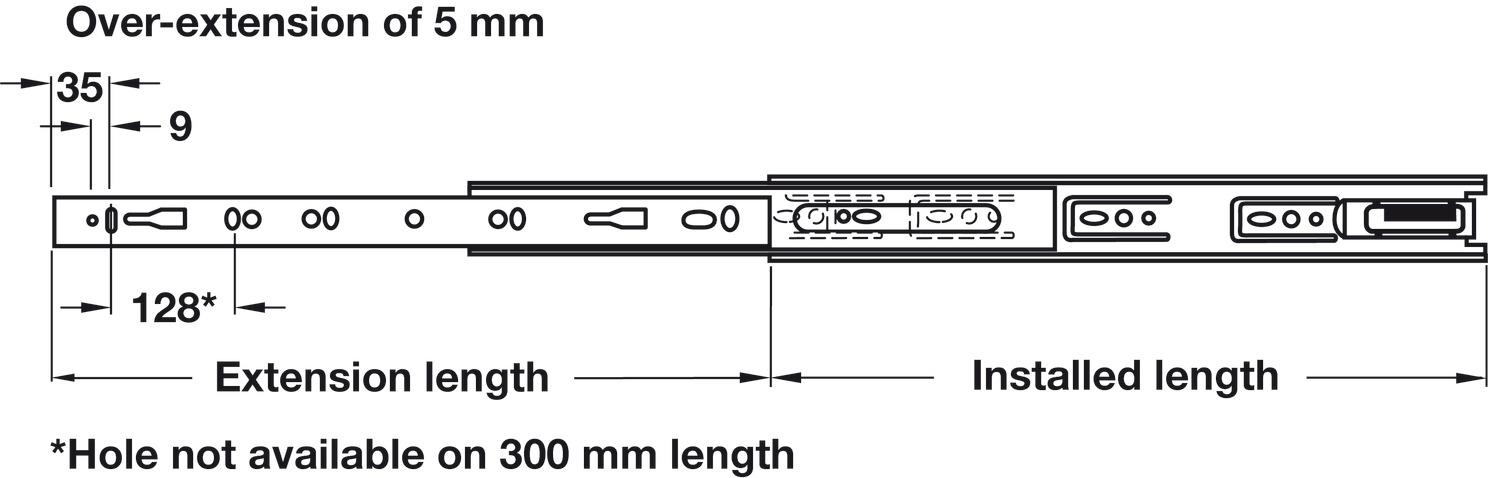

Type of pull out
Full extension

Area of application

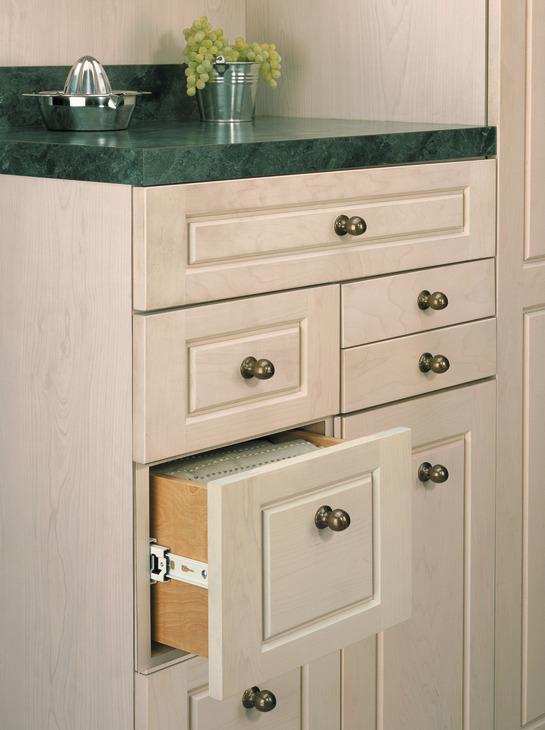

For use in applications such as filing cabinets, desk pedestals and general storage drawers

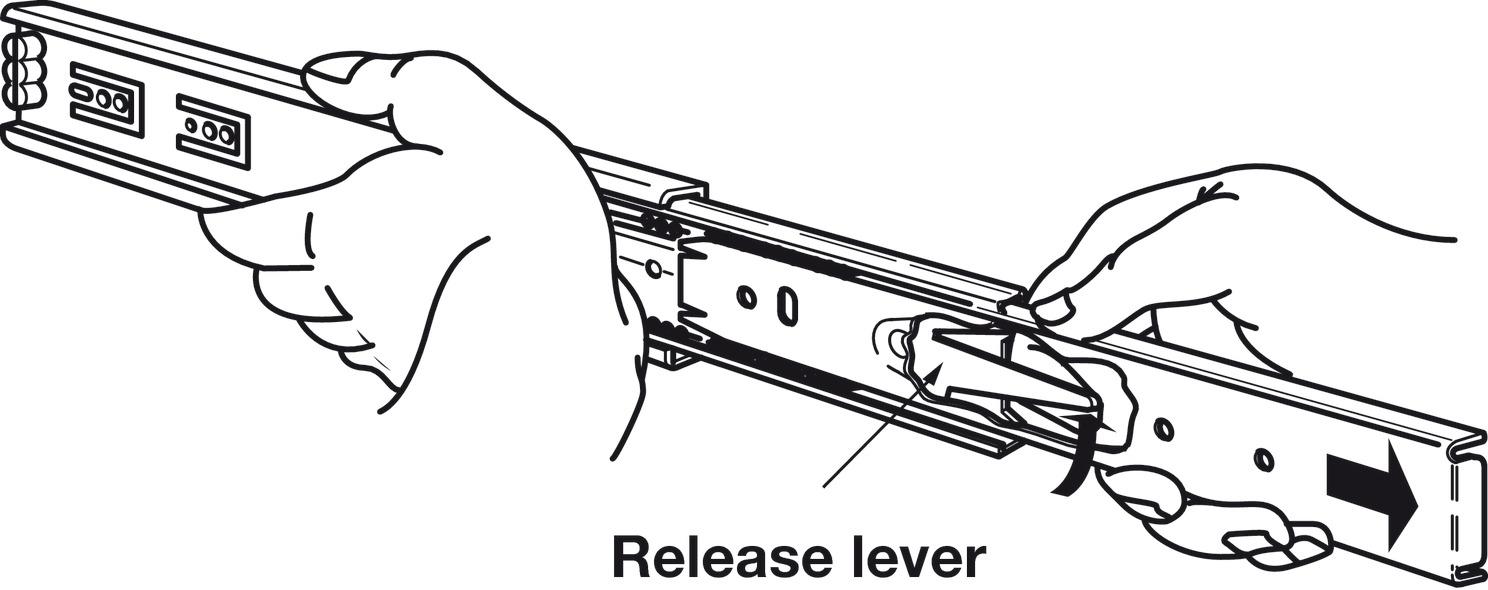

Removing the running track
with release lever

Material
Steel

Installation

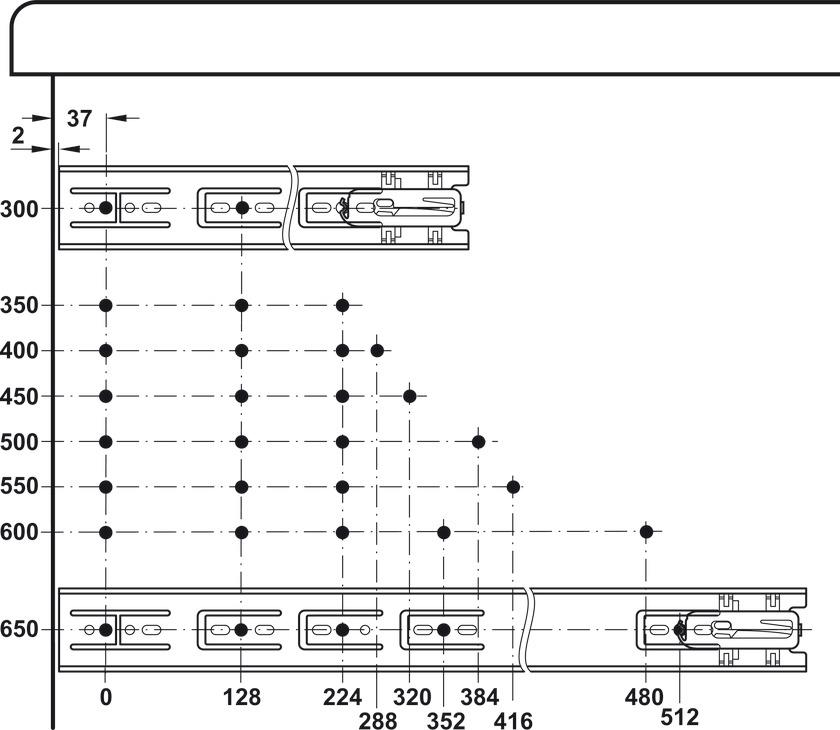

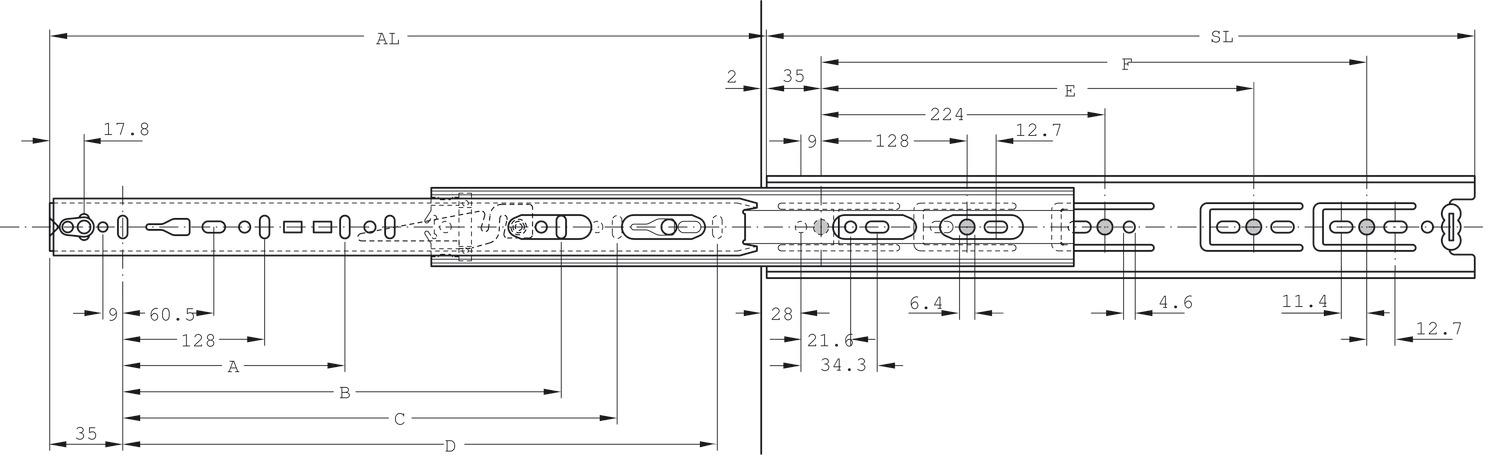

32 mm drilling pattern

Order reference
Heavy duty version available. Twice the stay close force on the standard self close. Ideal for mobile applications
Optional mounting brackets for bottom or shelf mounting available
Order Varianta ? 5 cylinder head and Hospa ? 4.0 pan head screws separately
Fixings: Max. head height 2.5 mm, ? 9.6 mm

Additional information attributes
Mounting bracket is not suitable for Accuride 3832 EC and 3832 TR.

Pack size
1 pair

PDF Catalogue Page
