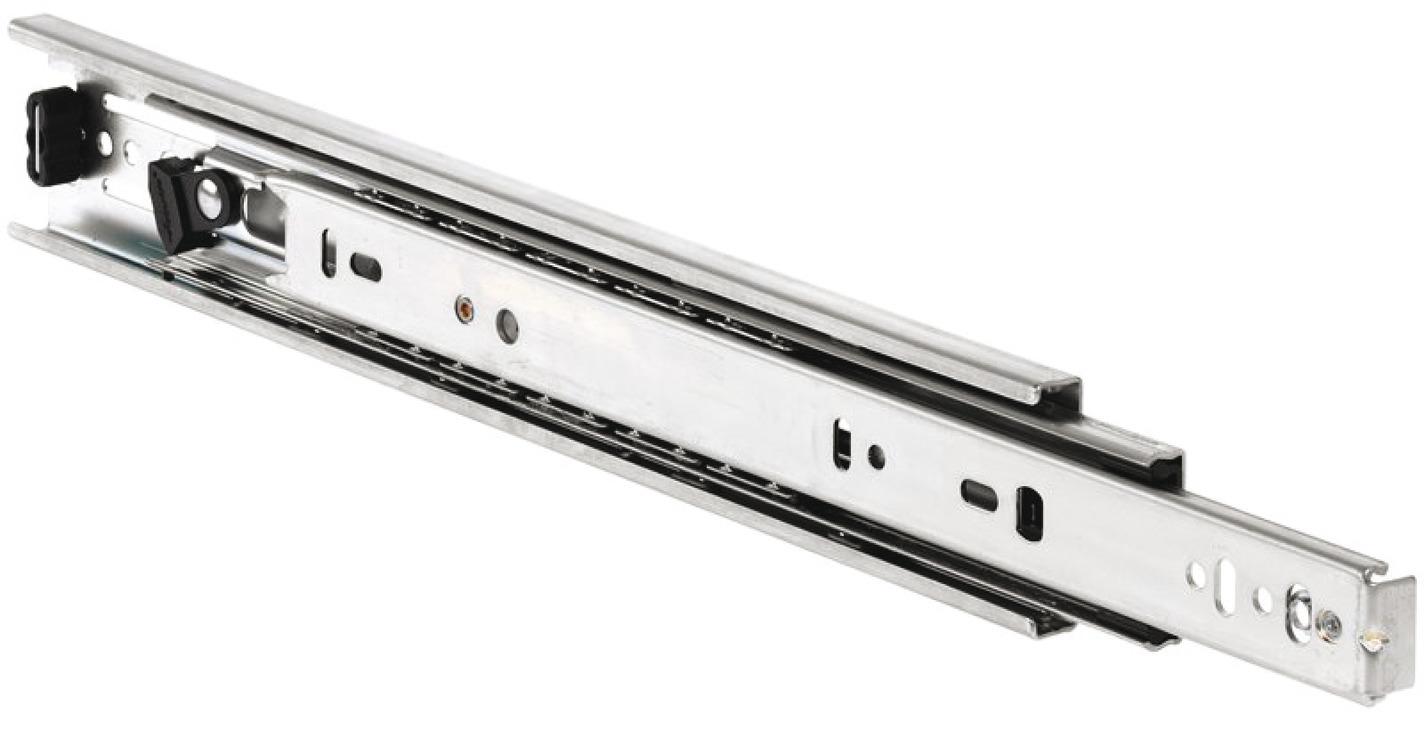

Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 Kg, Accuride 3832do - Hafele

Ball Bearing Drawer Runners, Full Extension, Load Capacity 42-45 Kg, Accuride 3832do - Hafele

Product code: 422.91.931

£0.00
£33.20
(
£27.67
ex VAT)
View video
Earn332
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

300mm / 42kg

QuantityPrice (inc VAT)
2 - 3£31.54
4 - 9£29.88
10 +£26.56

Bulk Buy Discounts for:

350mm / 43kg

QuantityPrice (inc VAT)
2 - 3£32.09
4 - 9£30.40
10 +£27.02

Bulk Buy Discounts for:

400mm / 44kg

QuantityPrice (inc VAT)
2 - 3£32.87
4 - 9£31.14
10 +£27.68

Bulk Buy Discounts for:

450mm / 45kg

QuantityPrice (inc VAT)
2 - 3£32.79
4 - 9£31.07
10 +£27.61

Bulk Buy Discounts for:

500mm / 45kg

QuantityPrice (inc VAT)
2 - 3£34.36
4 - 9£32.55
10 +£28.93

Bulk Buy Discounts for:

550mm / 45kg

QuantityPrice (inc VAT)
2 - 3£37.20
4 - 9£35.24
10 +£31.33

Bulk Buy Discounts for:

600mm / 45kg

QuantityPrice (inc VAT)
2 - 3£37.54
4 - 9£35.56
10 +£31.61

Bulk Buy Discounts for:

650mm / 44kg

QuantityPrice (inc VAT)
2 - 3£30.51
4 - 9£28.90
10 +£25.69
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    • Drawer Runners/ Glides/ Guides
    • Hold-out feature holds the drawer in the open position
    • Grooved cabinet member, for better movement

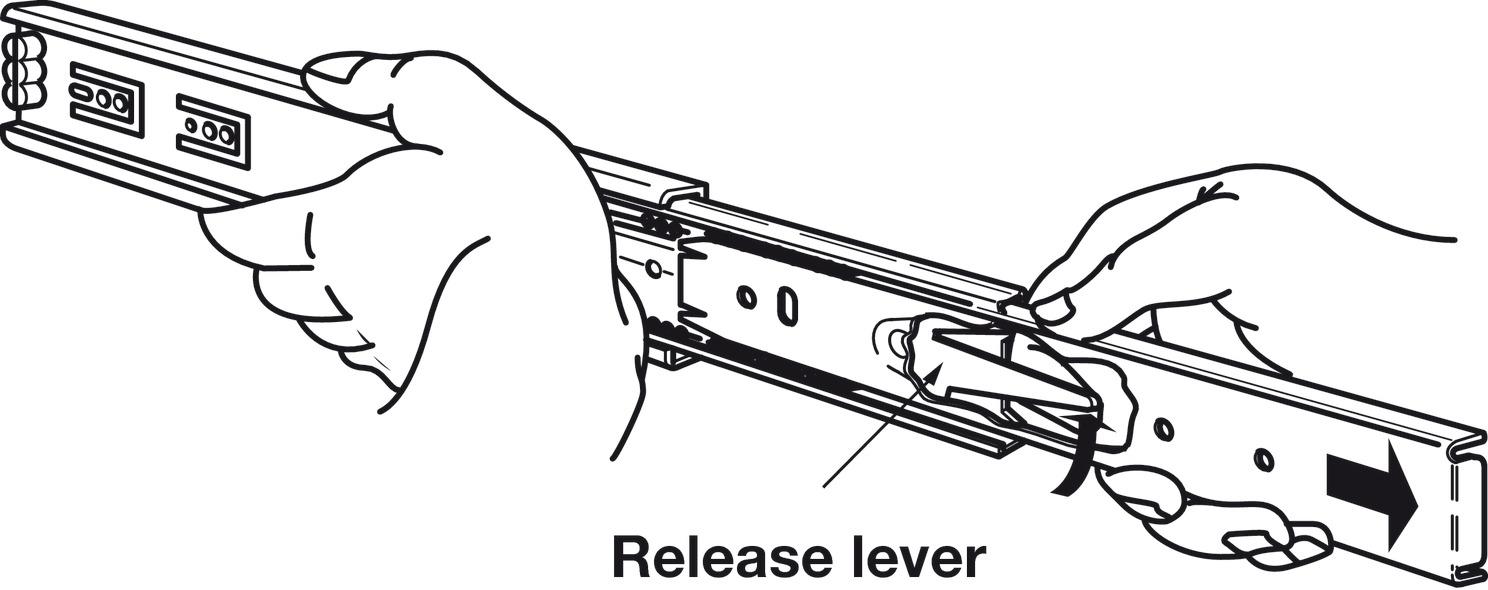

    • Front disconnect (by depressing lever) for drawer removal
    • Improved retainer retention device
    • Tested to 80,000 cycles

    Version
    Tolerance absorption tabs

    Colour/finish
    Zinc plated, Bright zinc plated

    Type of pull out
    Full extension

    Area of application

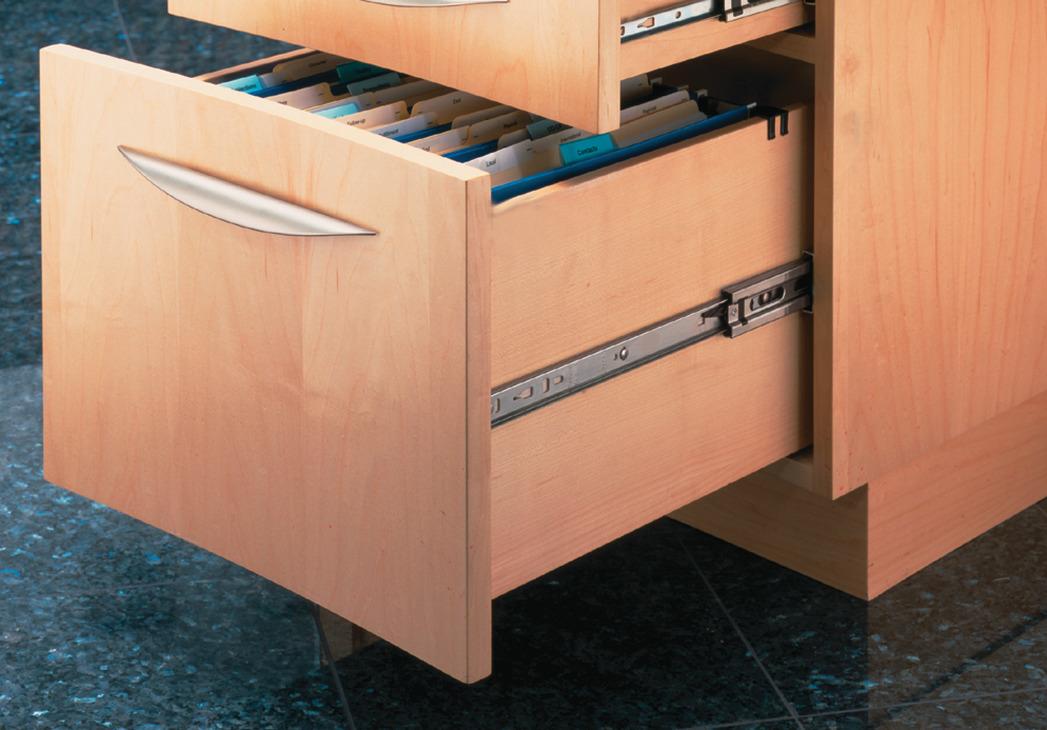

    For applications such as filing cabinets, desk pedestals and general storage drawers

    Holding function
    Hold-in, Hold-out

    Removing the running track
    without release lever

    Material
    Steel

    Installation

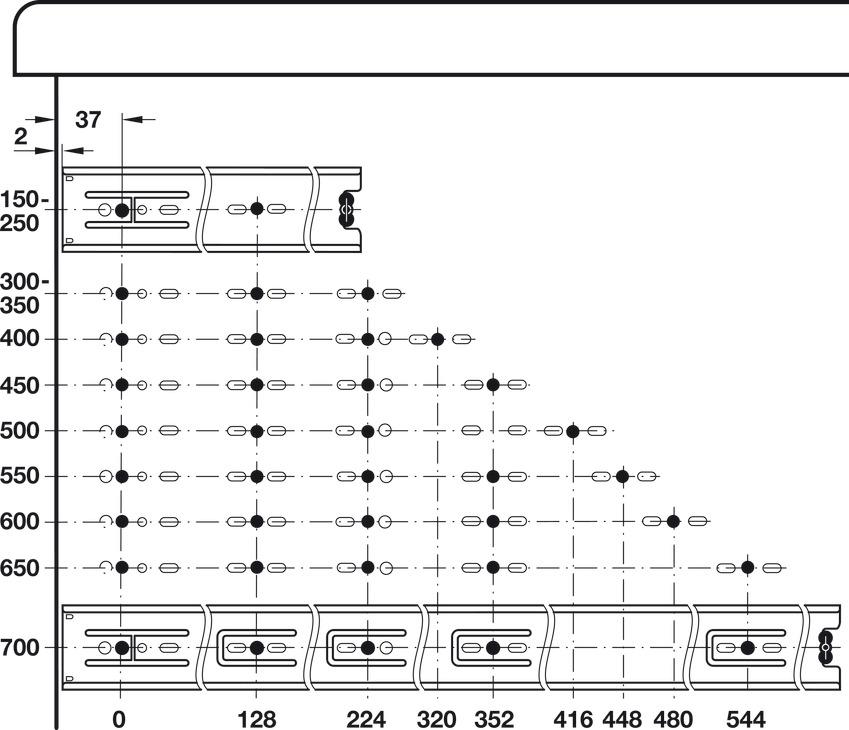

    32 mm drilling pattern

    Order reference
    Optional brackets for bottom or shelf mounting of these runners are available
    Hold-in version and corrosion resistant hold-in version available
    Order Varianta ? 5 cylinder head and Hospa ? 4.0 pan head screws separately
    Fixings: Max. head height 2.5 mm, ? 9.6 mm

    Additional information attributes
    Mounting bracket is not suitable for Accuride 3832 EC and 3832 TR.

    Pack size
    1 pair
