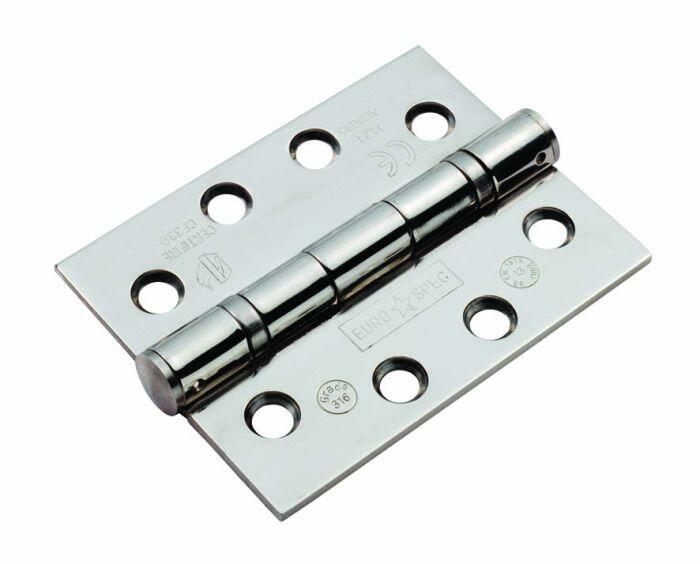

- Butt Hinge, 102 X 76 X 3 Mm, Ball Bearing, Grade 13, Stainless Steel (Marine Grade 316) (Pair)
Butt Hinge, 102 X 76 X 3 Mm, Ball Bearing, Grade 13, Stainless Steel (Marine Grade 316) (Pair) - Eurospec
Butt Hinge, 102 X 76 X 3 Mm, Ball Bearing, Grade 13, Stainless Steel (Marine Grade 316) (Pair) - Eurospec
Product code: CEN1433/13BSS
£0.00
£10.63
(
£8.86
ex VAT)
Earn106
reward points
reward points
Please choose from the options below to show product code, price and availability
Bulk Buy Discounts for:
Bright stainless steel, Square corners
| Quantity | Price (inc VAT) |
| 10 - 19 | £10.10 |
| 20 + | £9.57 |
Bulk Buy Discounts for:

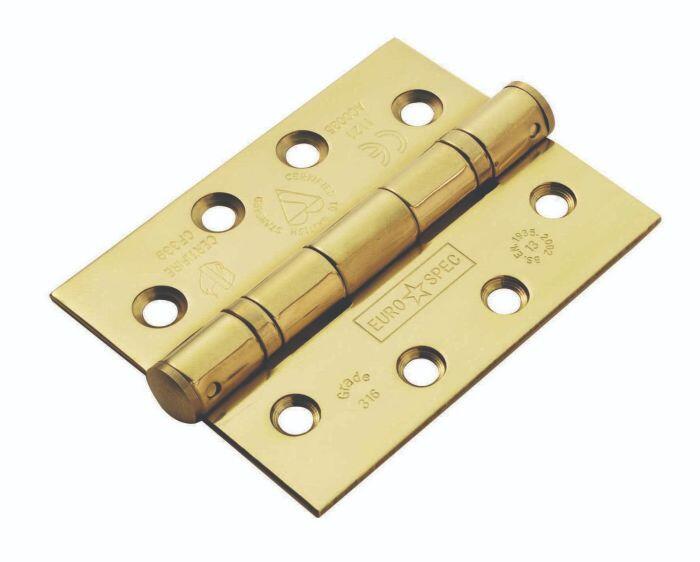

PVD stainless brass, Square corners
| Quantity | Price (inc VAT) |
| 10 - 19 | £10.10 |
| 20 + | £9.57 |
Bulk Buy Discounts for:

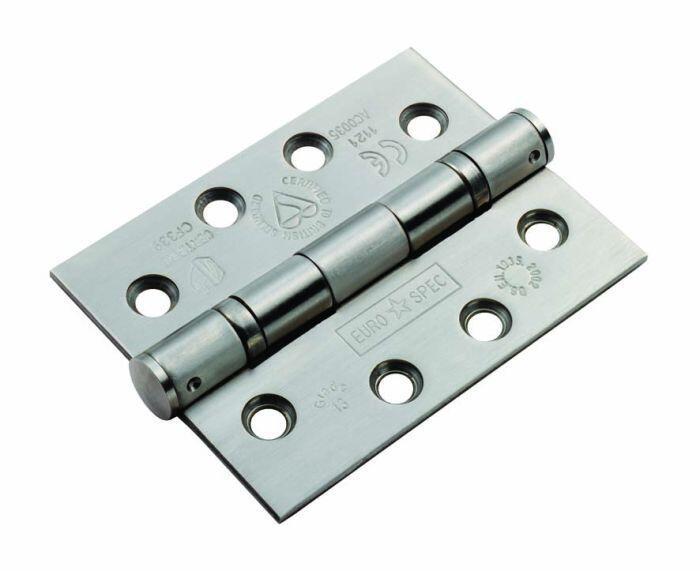

Satin stainless steel, Square corners
| Quantity | Price (inc VAT) |
| 10 - 19 | £10.10 |
| 20 + | £9.57 |
Bulk Buy Discounts for:
Satin stainless steel, Radius corners
| Quantity | Price (inc VAT) |
| 10 - 19 | £10.10 |
| 20 + | £9.57 |
PRODUCT DETAILS
Type Material Size Ball bearing Stainless steel
(Marine grade 316)102 x 76 x 3mm
4" x 3"Knuckle diameter Fixings included Pack size 14mm Yes Pair - Suitable for industrial, commercial and domestic use
- Grade 13
- BS EN 1935 rated
- CE marked
- Certifire tested CF339
- Fire rated
- FD30/60 Timber
- FD240 Metal
- Max load 120kg per pair
- 25 year mechanical guarantee
Documents
- DOP Certificate
- DOC Certificate
