Grass Kinvaro T-105 Flap Fittings - Hafele

Grass Kinvaro T-105 Flap Fittings - Hafele

Product code: 373.77.330

£0.00
£17.98
(
£14.98
ex VAT)
Earn180
reward points
Please choose from the options below to show product code, price and availability

Bulk Buy Discounts for:

Right hand

QuantityPrice (inc VAT)
2 - 3£17.08
4 - 9£16.19
10 +£14.39

Bulk Buy Discounts for:

Left hand

QuantityPrice (inc VAT)
2 - 3£17.09
4 - 9£16.19
10 +£14.39
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    Grass Kinvaro T-105

    • For top box units
    • Allows additional cabinet installation above
    • Spring-assisted action for easy opening
    • For flap weight: 1.1 to 8.6 kg
    • For flap width: 450-1000 mm
    • For flap height: 283-450 mm
    • Variable opening angle, holds flap securely at any opening position from 45 to 105 degrees
    • Fittings are handed
    • Nickel-plated zinc alloy fittings, black plastic cover caps and fitting
    • Concealed sprung hinges with 95 to 105 degree opening angle must be ordered separately

    Set includes
    1 piece

    Order fixing screws separately
    When using with a bar handle please trial mount first

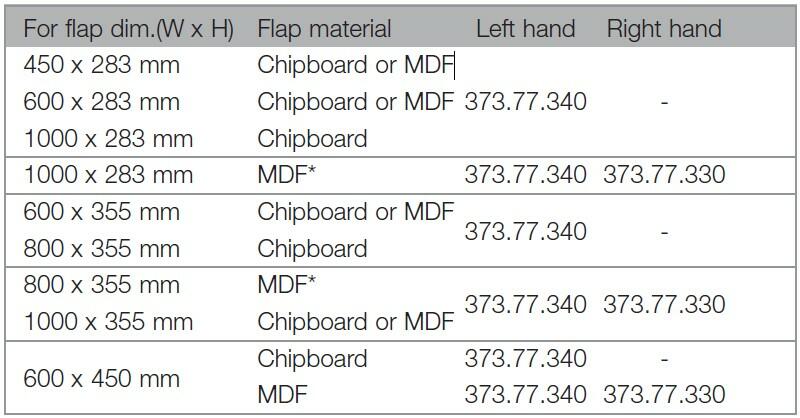

    Sample measurements table for selecting the right model based on cabinet height and flap width. We recommend to use the stronger fitting model when in doubt.mont-04517985-tab.jpg
