PRODUCT DETAILS

• Guides To Model Selection

  Push-to-Open	Touch Opening	With Handles
  Slight pressure on the front opens the flap completely to the end position	Slight pressure on the front opens the flap slightly, then it can be opened or closed completely by hand. The front is locked reliably in any position	For wide and heavy fronts with handles (please also consider the handle weight when determining which model Free Flap H 1.5 is needed)

  ---

  Free Flap H 1.5


  • For flaps made of wood, glass or with aluminium frame

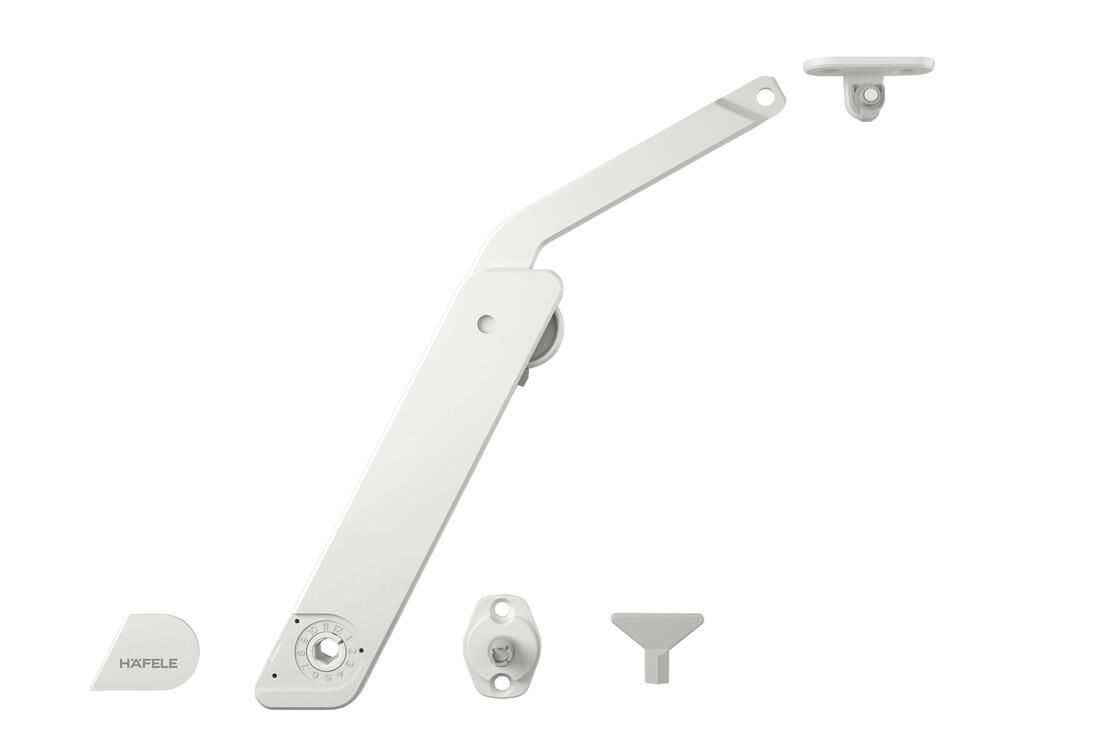

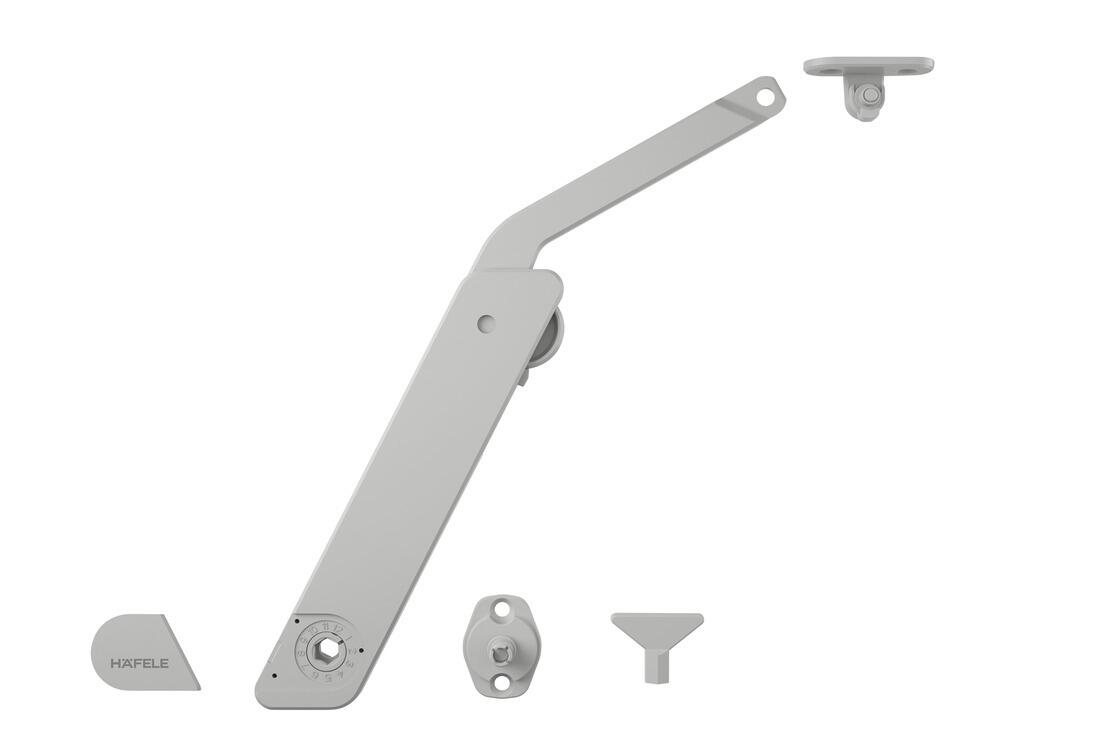

  • Housing colour available in white or grey
  • Variable standard product provides versatile functionality for front panels with and without handles: by changing the installation position and combining with additional components, both conventional applications with a handle and push- to-open applications without a handle can be realised
  • For one-sided or two-sided application (depends on the flap width and height)
  • Can be used in combination with standard 110 degree concealed hinges (push hinges for push-to-open applications; cushioned hinges for soft closing)
  • Easy handling
  • Installation is simple, rational and tool-less

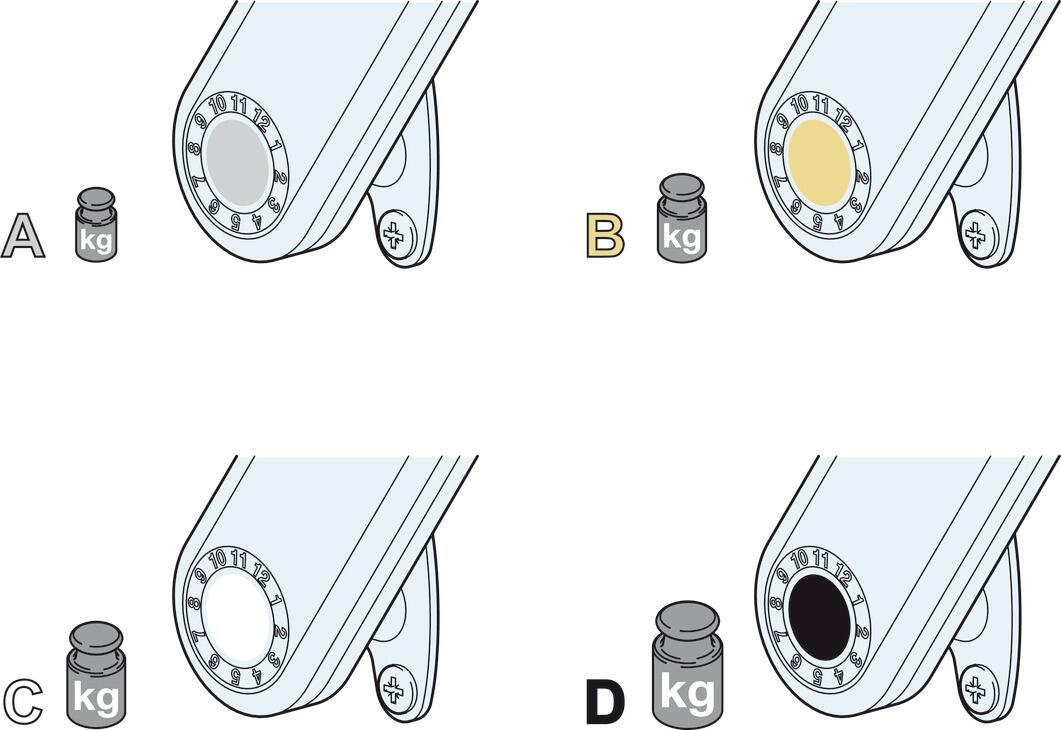

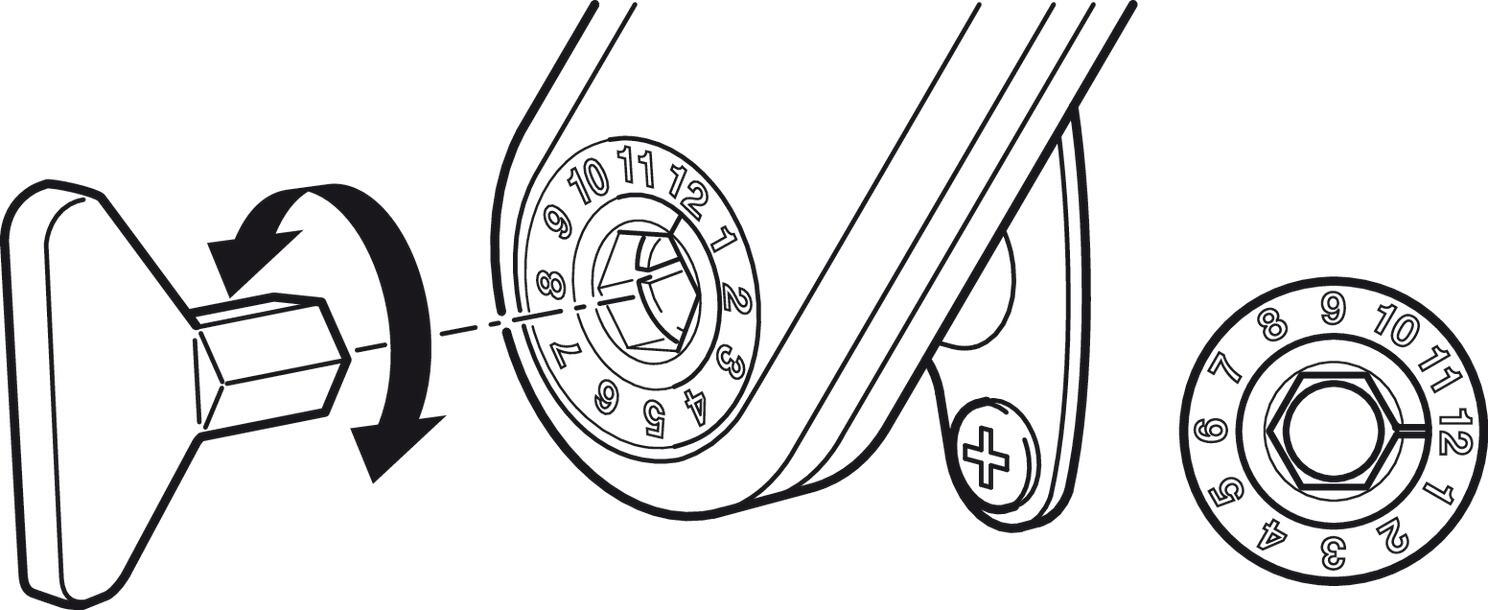

  • The holding power can be individually adjusted to suit the respective flap weight and the required function
  • Opening angles of 75, 90 or 100 degrees (adjustable on unit)
  • Handed design
  • Holding down adjustment
  • Clip-mounting on pre-mounted screw fixing bracket included, no tools required

Supplied with

1x Free Flap H 1.5 Stay (left or right hand)

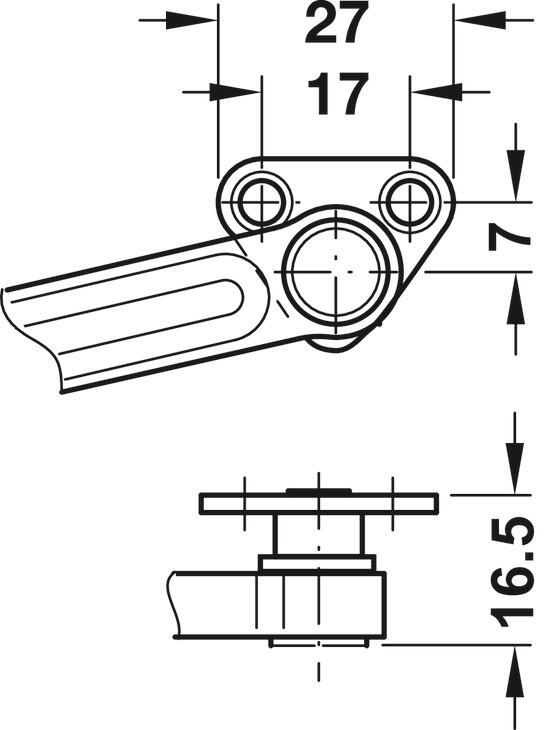

1x Screw-on bracket for flap
1x SW10 hex key
Installation instructions

Use two Free Flap H 1.5 fittings for cabinet width of 600 mm and above
Order fixing screws separately
