Product code: 372.45.810

£0.00
£71.89
(
£59.91
ex VAT)
Earn719
reward points
Please choose from the options below to show product code, price and availability
Out of stock. Purchase on backorder.
Add To Your Wishlist

Is the product you want unavailable? Enter your email below to be notified when it's back in stock!

Please note: this will not add you to our marketing list

  • PRODUCT DETAILS

    These are non-stocked products. Please allow roughly 18 days from date of order for delivery.

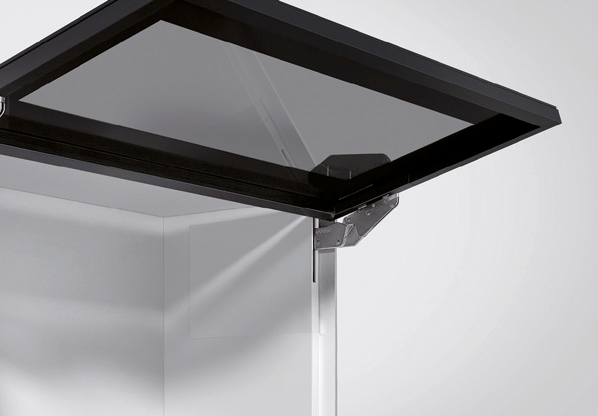

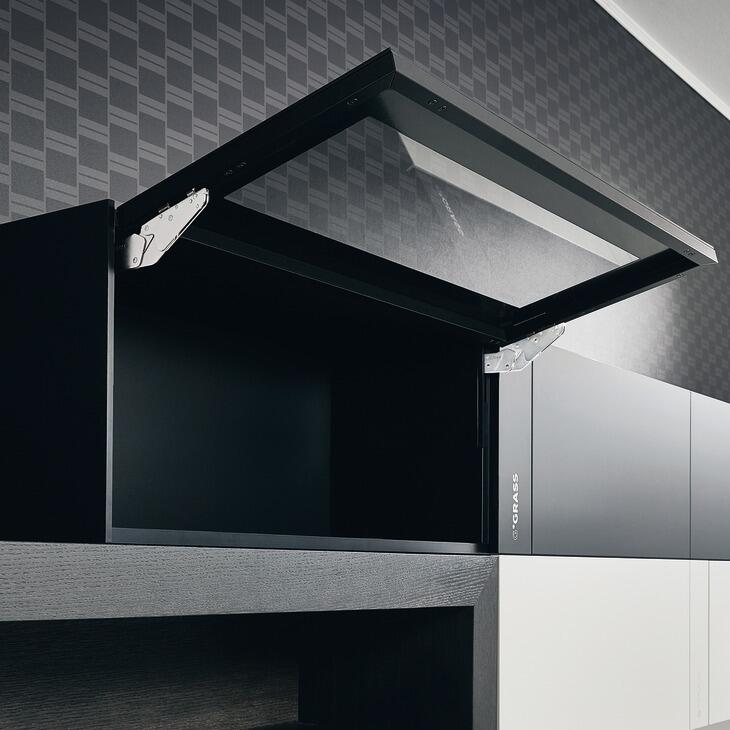

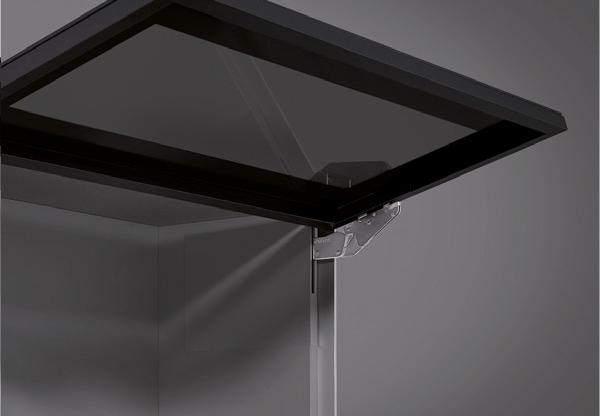

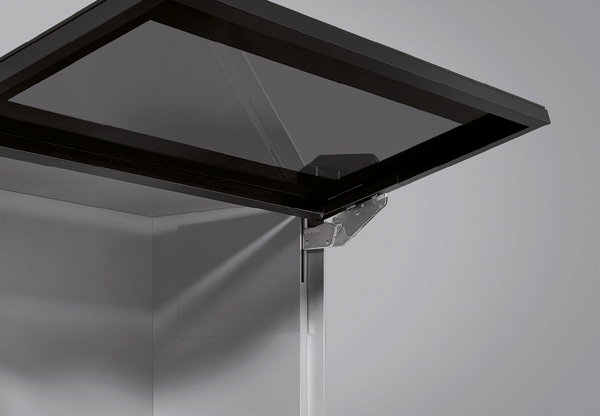

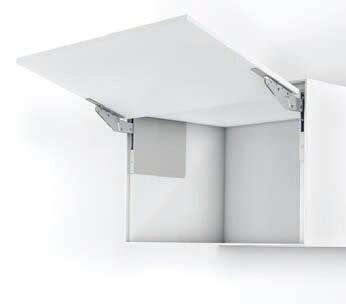

    Grass Kinvaro T-Slim Flap Fittings

    • Flush inset flap fitting for high design requirements and maximum storage space
    • Low opening force and multi-position stop
    • Soft close version
    • Convenient adjustment of the spring force
    • Fast, tool free clip fitting of the front
    • 3-dimensional panel adjustment

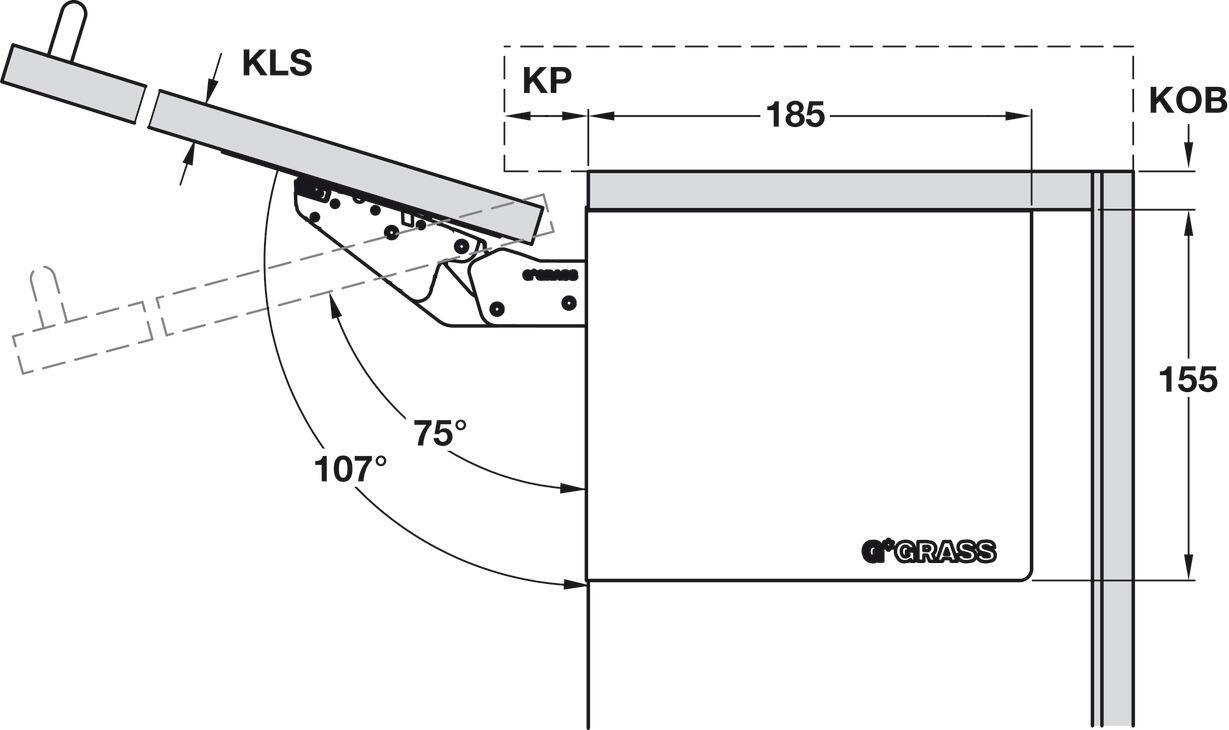

    • 107 degree opening angle
    • Integrated opening angle restraint clip, 75 degree optional angle
    • 2 different power factor options
    • All cover caps are paintable to match unique design requirements

    Set includes
    Set includes: 2x Stay flap fitting (left/right), 2x Connector bracket (left/right) for front panel, cover caps, 12 x Fixing screws

    Order fixing screws separately

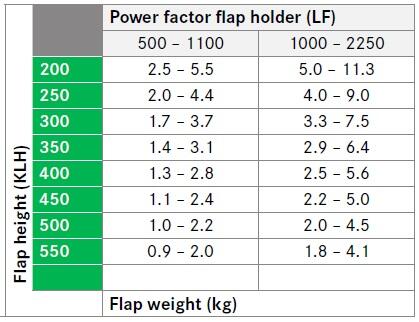

    Sample measurements table for selecting the right model based on flap height and flap weight. We recommend to use the stronger fitting model when in doubt.mont-04517985-tab.jpg
