Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.

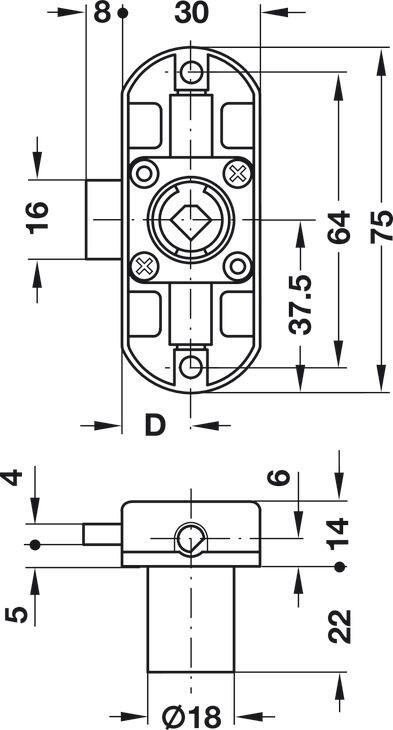

With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mm
Due to the three different backsets (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.
